Type plate

WARNING
Danger due to damage of units
Disregarding type plate specifications can result in severe accidents.
 Always observe the specifications on the type plate when installing and maintaining the units.
 The type plate is located on the rear side of the cooling unit housing.
 The figure shows the standard version for EU Member States. The type plate version may differ in other
countries.
Item Designation
1 Frequency
3 Options
5 Protection type
7 Cooling capacity
9 Power rating
11 Protection type
13 Start-up current
15 Nominal current
17 Part number
19 Manufacturer logo
Operating Manual DTS and DTI 6801 Multi-Controller (MC) 086100008 © Pfannenberg GmbH
20
19
18
17
16
15
14
13
12
11
11
10
9

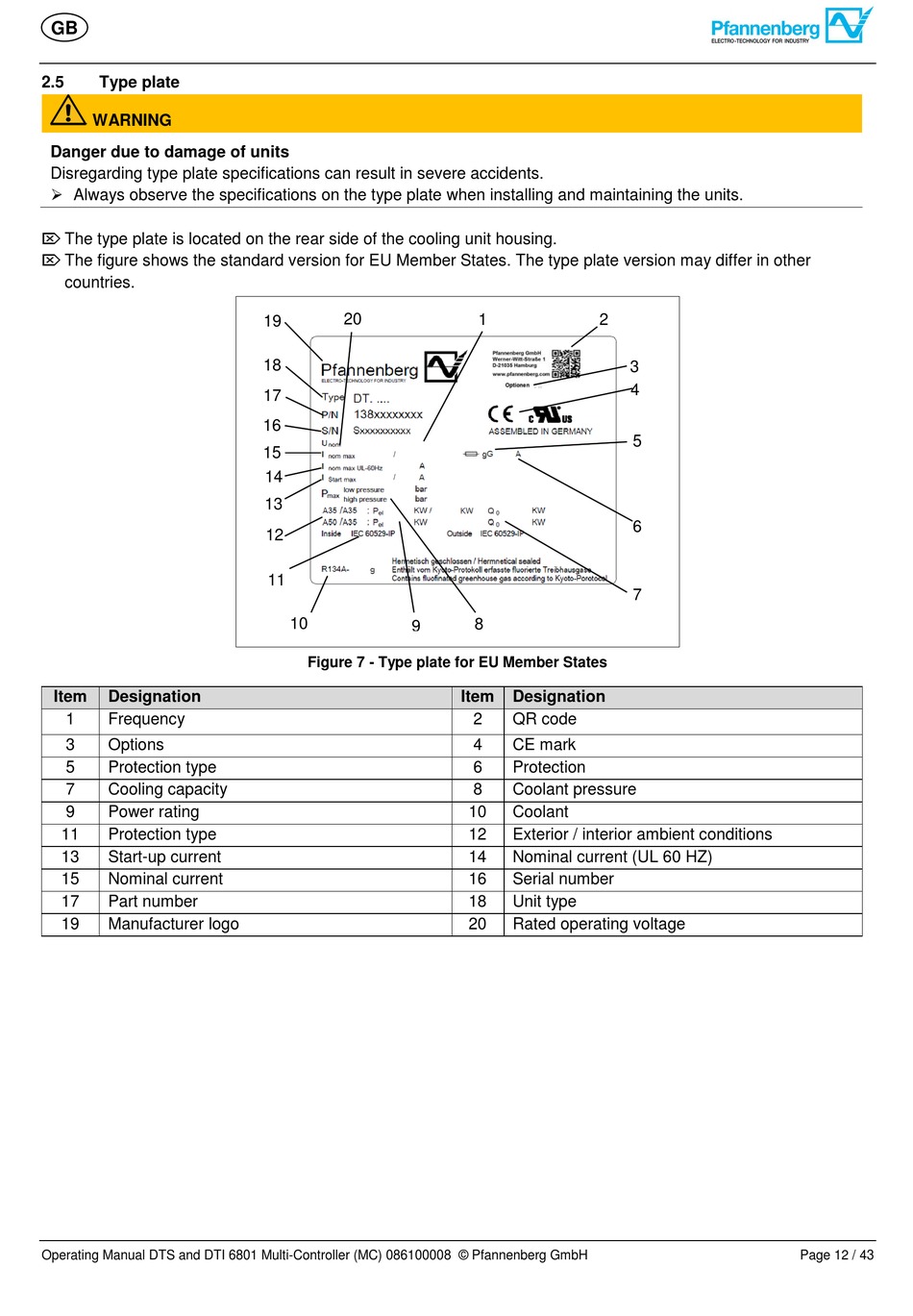

Figure 7 - Type plate for EU Member States
1 2
3
4
5
6
7
8
Item Designation
2 QR code
4 CE mark
6 Protection
8 Coolant pressure
10 Coolant
12 Exterior / interior ambient conditions
14 Nominal current (UL 60 HZ)
16 Serial number
18 Unit type
20 Rated operating voltage
Page 12 / 43
