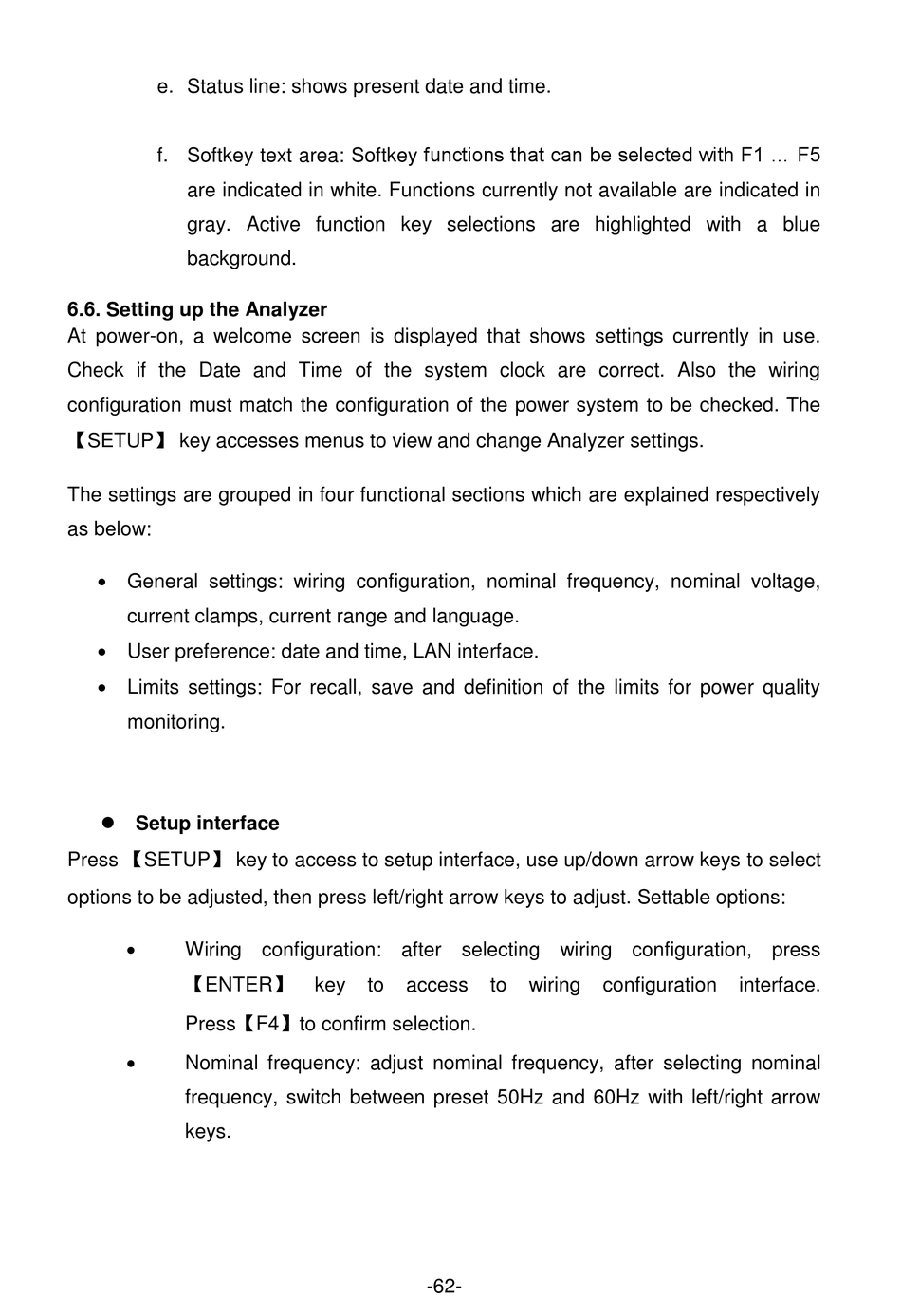

e. Status line: shows present date and time.
f. Softkey text area: Softkey functions that can be selected with F1 ... F5
are indicated in white. Functions currently not available are indicated in
gray. Active function key selections are highlighted with a blue
background.

6.6. Setting up the Analyzer

At power-on, a welcome screen is displayed that shows settings currently in use.
Check if the Date and Time of the system clock are correct. Also the wiring
configuration must match the configuration of the power system to be checked. The
【SETUP】 key accesses menus to view and change Analyzer settings.
The settings are grouped in four functional sections which are explained respectively
as below:
 General settings: wiring configuration, nominal frequency, nominal voltage,
current clamps, current range and language.
 User preference: date and time, LAN interface.
 Limits settings: For recall, save and definition of the limits for power quality
monitoring.
 Setup interface
Press 【SETUP】 key to access to setup interface, use up/down arrow keys to select
options to be adjusted, then press left/right arrow keys to adjust. Settable options:

Wiring configuration: after selecting wiring configuration, press
【ENTER】
Press【F4】to confirm selection.

Nominal frequency: adjust nominal frequency, after selecting nominal
frequency, switch between preset 50Hz and 60Hz with left/right arrow
keys.
key to access
-62-
to wiring configuration interface.
