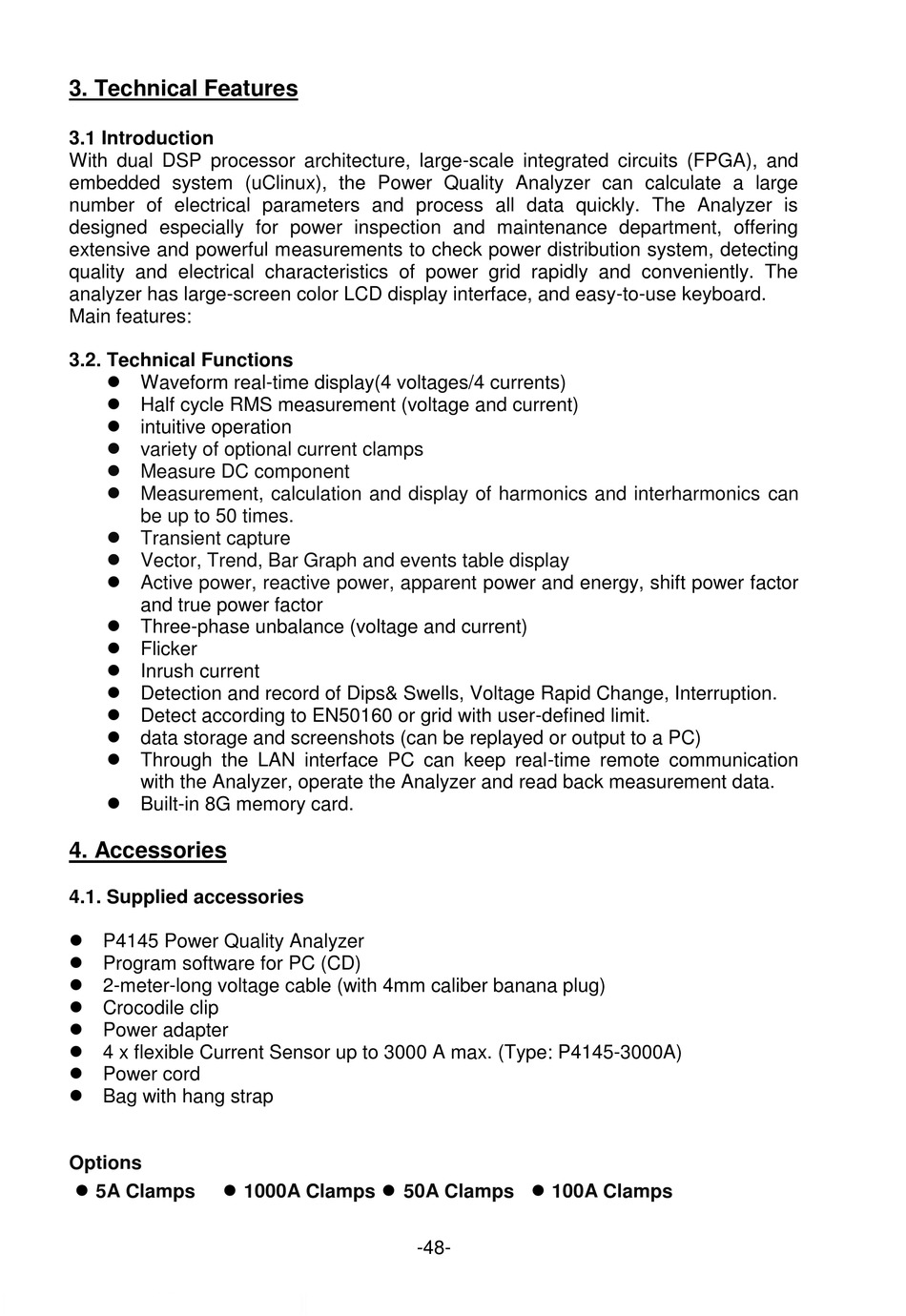

3. Technical Features

3.1 Introduction

With dual DSP processor architecture, large-scale integrated circuits (FPGA), and
embedded system (uClinux), the Power Quality Analyzer can calculate a large
number of electrical parameters and process all data quickly. The Analyzer is
designed especially for power inspection and maintenance department, offering
extensive and powerful measurements to check power distribution system, detecting
quality and electrical characteristics of power grid rapidly and conveniently. The
analyzer has large-screen color LCD display interface, and easy-to-use keyboard.
Main features:

3.2. Technical Functions

 Waveform real-time display(4 voltages/4 currents)
 Half cycle RMS measurement (voltage and current)
 intuitive operation
 variety of optional current clamps
 Measure DC component
 Measurement, calculation and display of harmonics and interharmonics can
be up to 50 times.
 Transient capture
 Vector, Trend, Bar Graph and events table display

Active power, reactive power, apparent
and true power factor
 Three-phase unbalance (voltage and current)
 Flicker
 Inrush current
 Detection and record of Dips& Swells, Voltage Rapid Change, Interruption.
 Detect according to EN50160 or grid with user-defined limit.
 data storage and screenshots (can be replayed or output to a PC)
 Through the LAN interface PC can keep real-time remote communication
with the Analyzer, operate the Analyzer and read back measurement data.
 Built-in 8G memory card.

4. Accessories

4.1. Supplied accessories

 P4145 Power Quality Analyzer
 Program software for PC (CD)
 2-meter-long voltage cable (with 4mm caliber banana plug)
 Crocodile clip
 Power adapter
 4 x flexible Current Sensor up to 3000 A max. (Type: P4145-3000A)
 Power cord
 Bag with hang strap

Options

● ●
5A Clamps
●
1000A Clamps 50A Clamps
power and energy, shift power factor
●
100A Clamps
