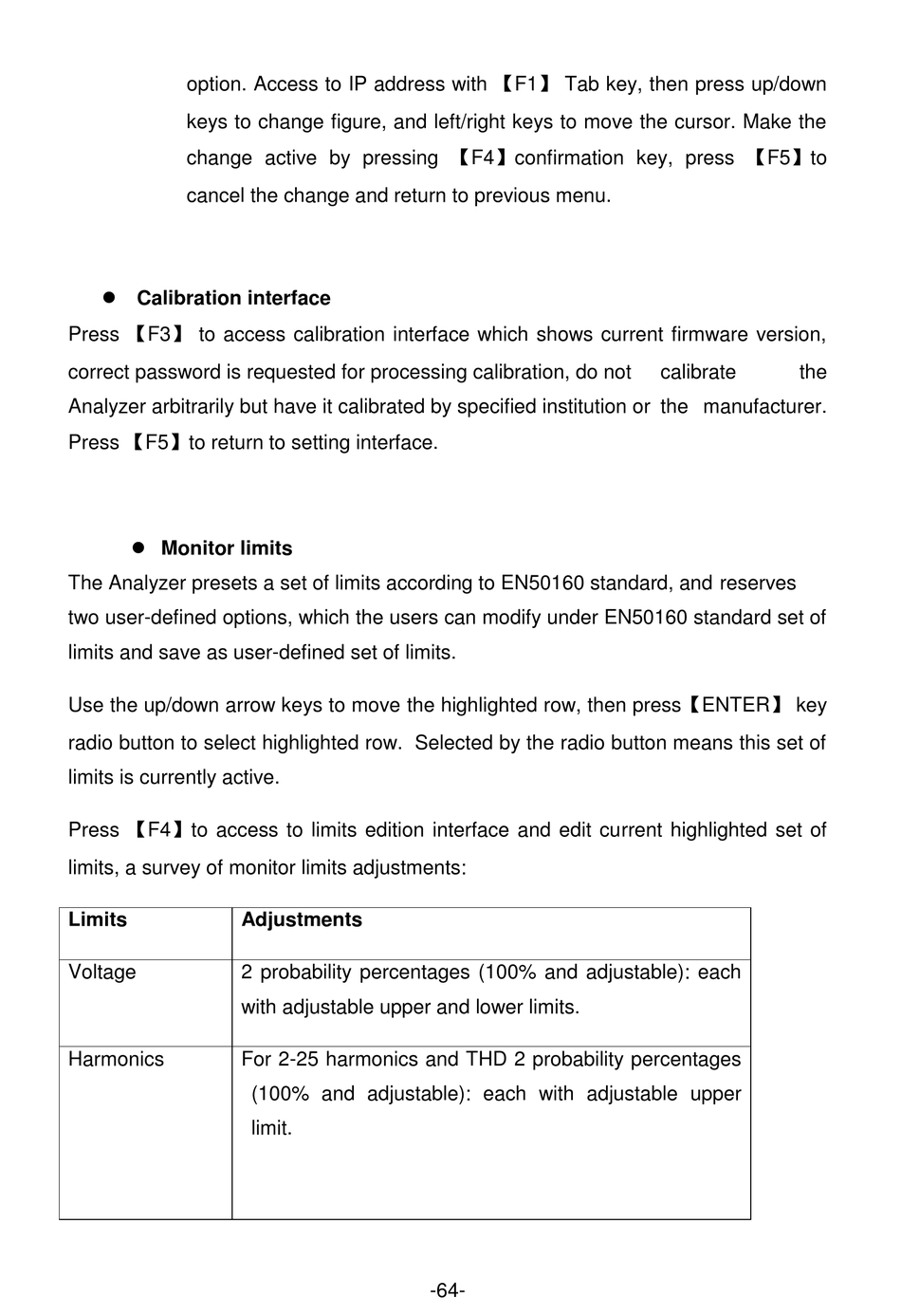

option. Access to IP address with 【F1】 Tab key, then press up/down
keys to change figure, and left/right keys to move the cursor. Make the
change active by pressing 【F4】confirmation key, press 【F5】to
cancel the change and return to previous menu.
 Calibration interface
Press 【F3】 to access calibration interface which shows current firmware version,
correct password is requested for processing calibration, do not
Analyzer arbitrarily but have it calibrated by specified institution or the manufacturer.
Press 【F5】to return to setting interface.
 Monitor limits
The Analyzer presets a set of limits according to EN50160 standard, and reserves
two user-defined options, which the users can modify under EN50160 standard set of
limits and save as user-defined set of limits.
Use the up/down arrow keys to move the highlighted row, then press【ENTER】 key
radio button to select highlighted row. Selected by the radio button means this set of
limits is currently active.
Press 【F4】to access to limits edition interface and edit current highlighted set of
limits, a survey of monitor limits adjustments:
Limits
Voltage
Harmonics
Adjustments
2 probability percentages (100% and adjustable): each
with adjustable upper and lower limits.
For 2-25 harmonics and THD 2 probability percentages
(100% and adjustable): each with adjustable upper
limit.
-64-
