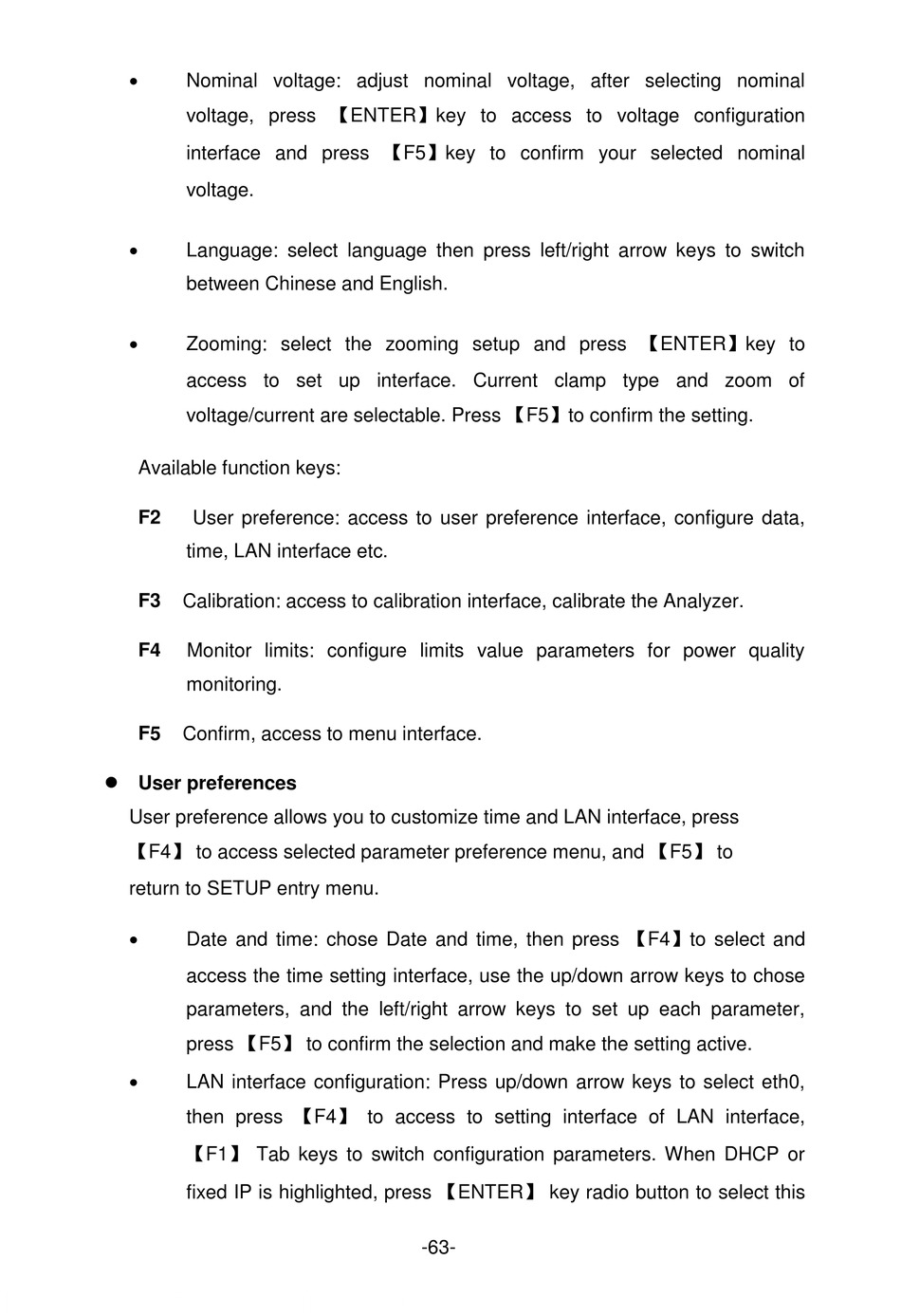

Nominal voltage: adjust nominal voltage, after selecting nominal
voltage, press 【ENTER】key to access to voltage configuration
interface and press 【F5】key to confirm your selected nominal
voltage.

Language: select language then press left/right arrow keys to switch
between Chinese and English.

Zooming: select the zooming setup and press 【ENTER】key to
access to set up interface. Current clamp type and zoom of
voltage/current are selectable. Press 【F5】to confirm the setting.
Available function keys:
F2 User preference: access to user preference interface, configure data,
time, LAN interface etc.
F3 Calibration: access to calibration interface, calibrate the Analyzer.
F4 Monitor limits: configure limits value parameters for power quality
monitoring.
F5 Confirm, access to menu interface.
 User preferences
User preference allows you to customize time and LAN interface, press
【F4】 to access selected parameter preference menu, and 【F5】 to
return to SETUP entry menu.

Date and time: chose Date and time, then press 【F4】to select and
access the time setting interface, use the up/down arrow keys to chose
parameters, and the left/right arrow keys to set up each parameter,
press 【F5】 to confirm the selection and make the setting active.

LAN interface configuration: Press up/down arrow keys to select eth0,
then press 【F4】 to access to setting interface of LAN interface,
【F1】 Tab keys to switch configuration parameters. When DHCP or
fixed IP is highlighted, press 【ENTER】 key radio button to select this
-63-
