 MONITOR
Below functions are available:
Measurement
mode
Monitor

5.5 Screen and Function Keys

The Analyzer uses five different screen types to present measuring results in the
most effective way.
 Table screen
This screen gives an instantaneous overview of important numerical measuring
values. Such as Table screen under VOLTS/AMPS/HERTZ mode.
Screen Form of measuring results
type
Bar graph Display
harmonics, flicker, swells, dips, voltage
rapid
frequency etc. of power quality parameters
Bar graph Detailed bar graph of harmonics
Trend Trends of selected data set over time
Events Record events violate limit
table
Picture: Table screen

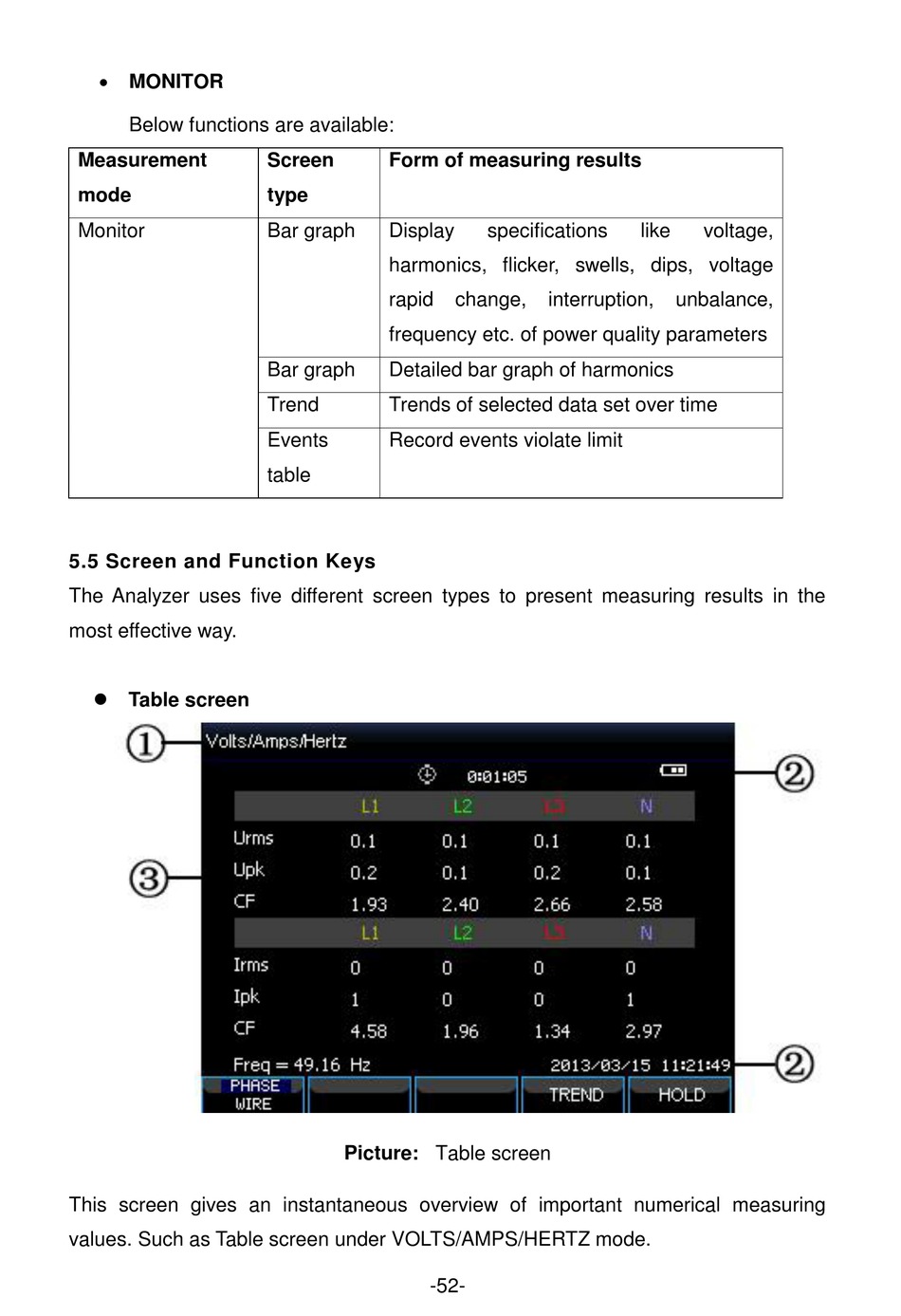

-52-
specifications
change, interruption,
like voltage,
unbalance,
