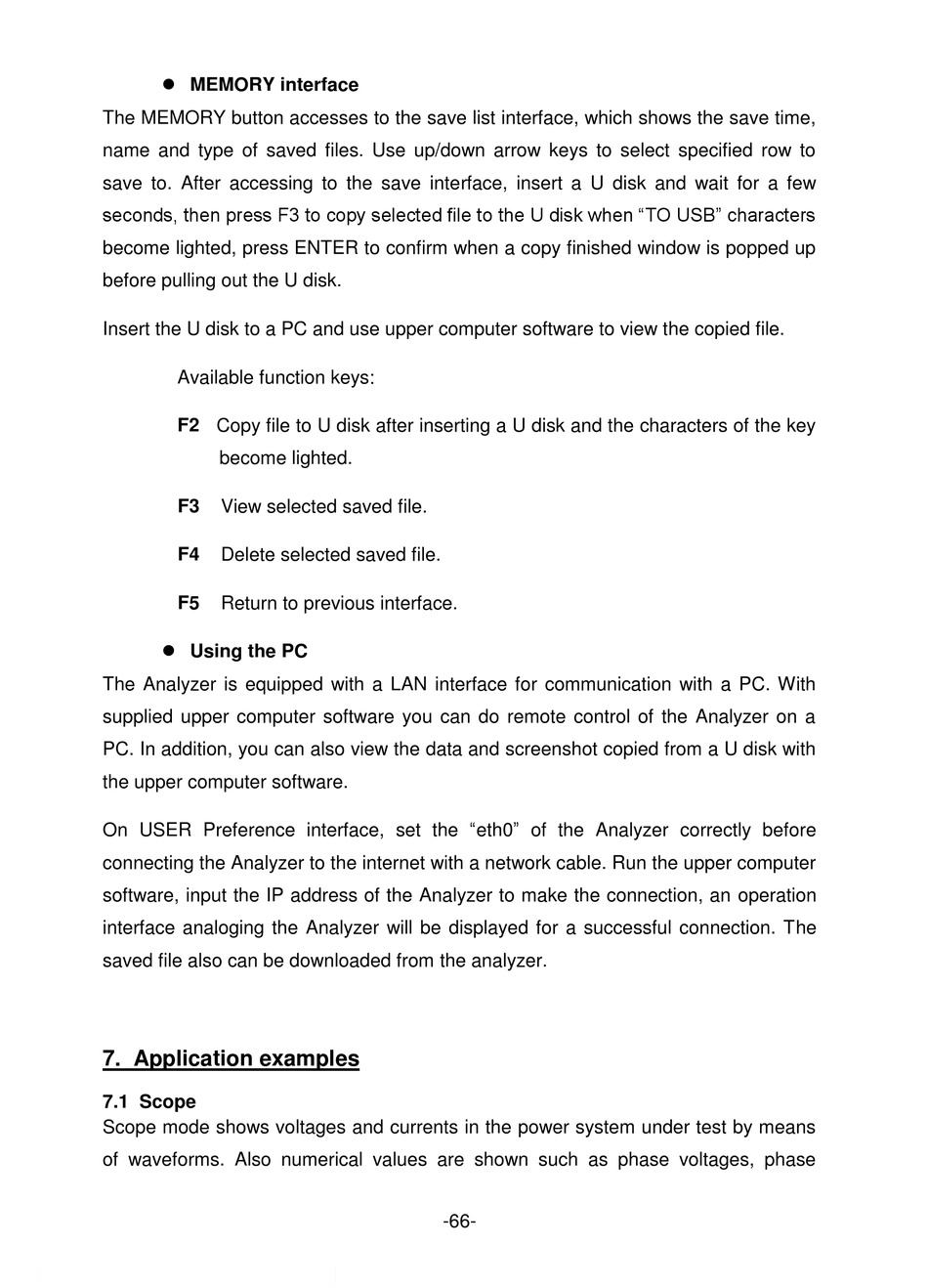

 MEMORY interface
The MEMORY button accesses to the save list interface, which shows the save time,
name and type of saved files. Use up/down arrow keys to select specified row to
save to. After accessing to the save interface, insert a U disk and wait for a few
seconds, then press F3 to copy selected file to the U disk when "TO USB" characters
become lighted, press ENTER to confirm when a copy finished window is popped up
before pulling out the U disk.
Insert the U disk to a PC and use upper computer software to view the copied file.
Available function keys:
F2 Copy file to U disk after inserting a U disk and the characters of the key
become lighted.
F3 View selected saved file.
F4 Delete selected saved file.
F5 Return to previous interface.
 Using the PC
The Analyzer is equipped with a LAN interface for communication with a PC. With
supplied upper computer software you can do remote control of the Analyzer on a
PC. In addition, you can also view the data and screenshot copied from a U disk with
the upper computer software.
On USER Preference interface, set the "eth0" of the Analyzer correctly before
connecting the Analyzer to the internet with a network cable. Run the upper computer
software, input the IP address of the Analyzer to make the connection, an operation
interface analoging the Analyzer will be displayed for a successful connection. The
saved file also can be downloaded from the analyzer.

7. Application examples

7.1 Scope
Scope mode shows voltages and currents in the power system under test by means
of waveforms. Also numerical values are shown such as phase voltages, phase
-66-
