 Phasor screen
The phase relation between voltages and currents are shown in a vector diagram.
Phasor screen is available under Unbalance mode. Below figure explains this:
Screen information:
 The screen header shows the Unbalance value.
 Vector diagram, The vector of reference phase A(L1) points to the
positive of X axis
 Other data. Such as fundamental voltage, phase angle.
Function keys:
F1: Select waveform set to display: V displays all voltages; A displays all
currents. L1, L2, L3 and N display voltage and current of selected
phase synchronously.
F4: Return to table screen
F5: Switch between RUN and HOLD.

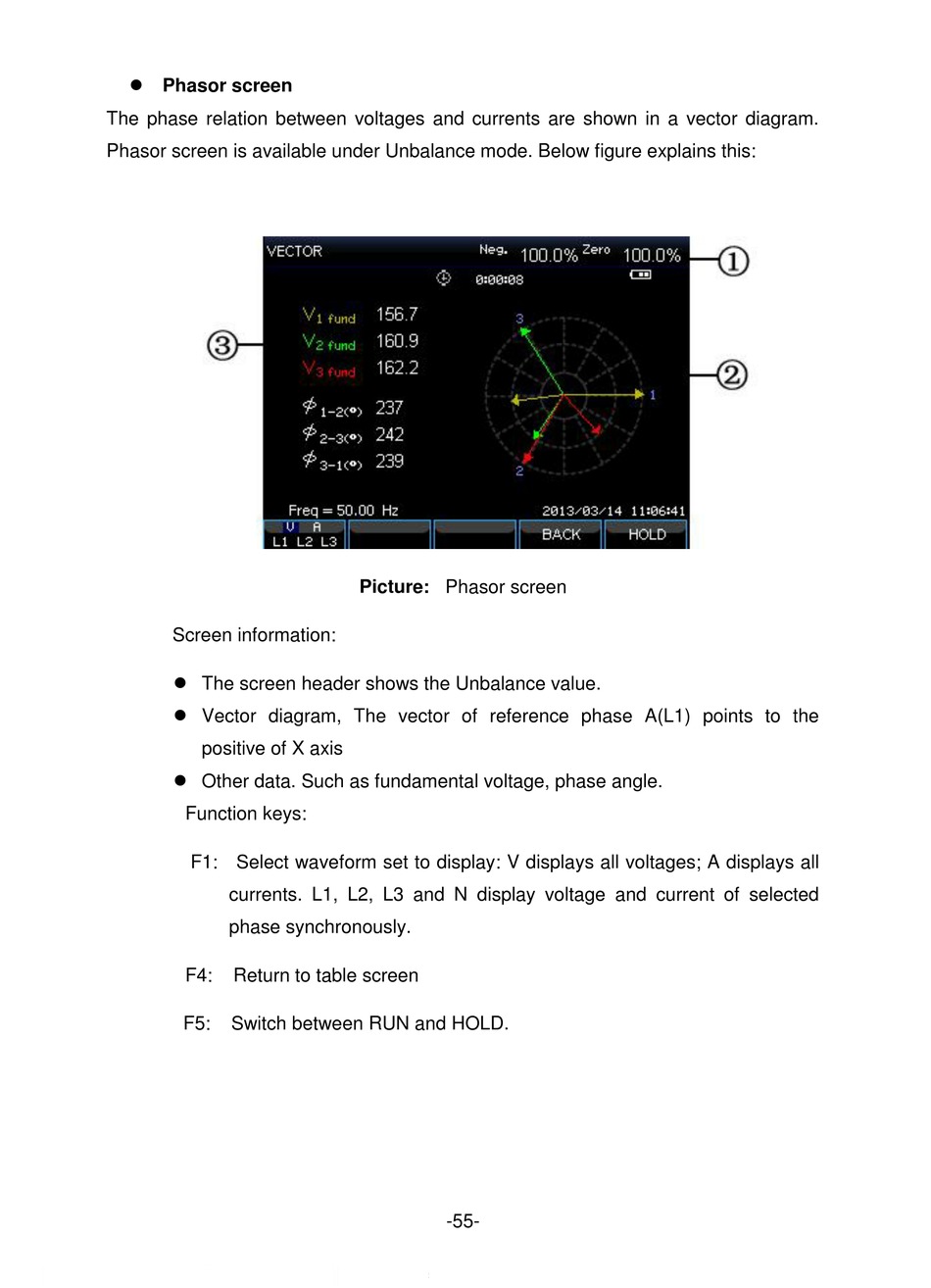

Picture: Phasor screen
-55-
