05.2006
5.1.1
Installing units of types E, F, G

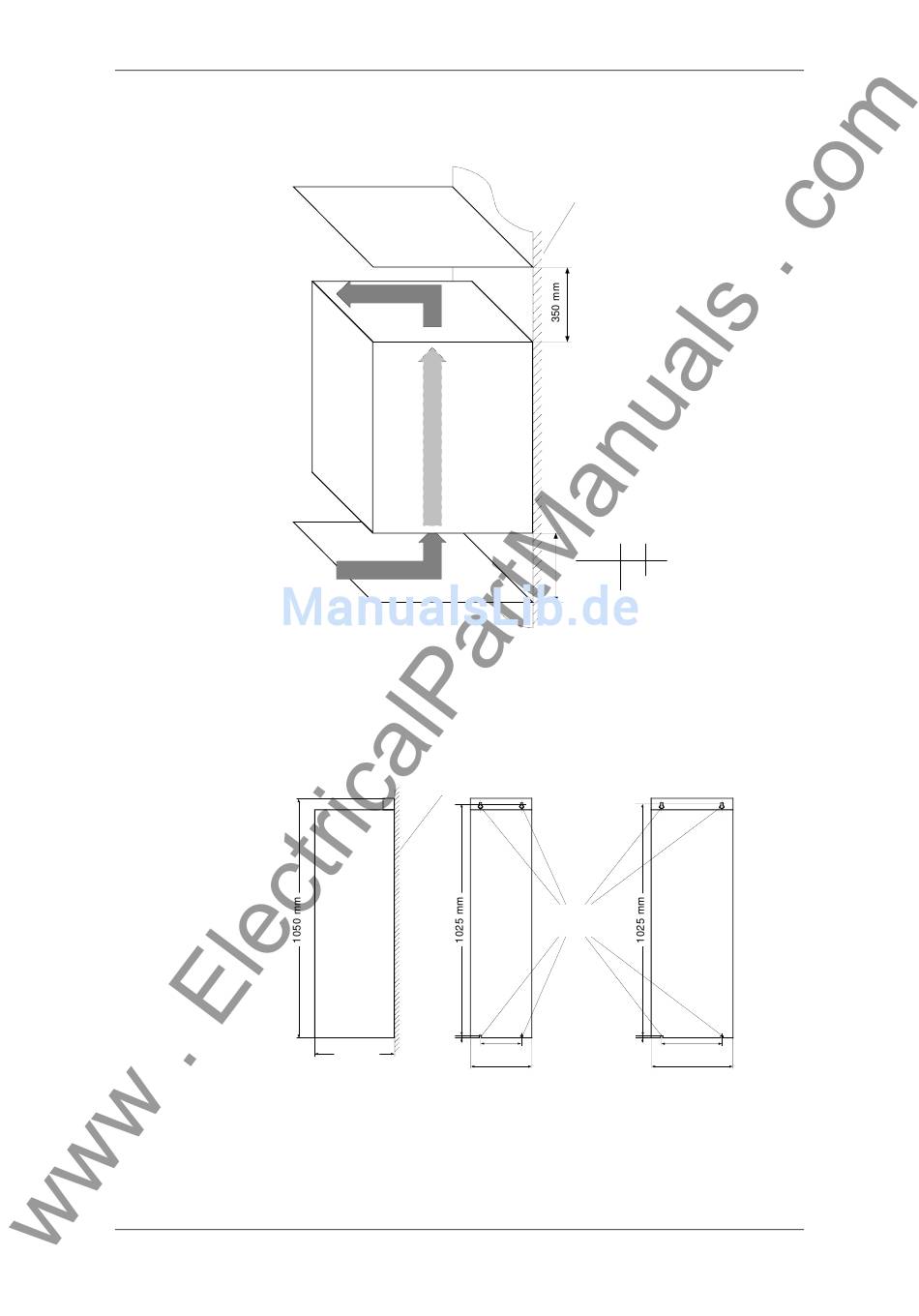

Fig. 5-1
The following are required for mounting:
♦ Dimension drawing for the relevant type of construction
♦ Four M8 screws
Fig. 5-2
Siemens AG
6SE7087-6JK50
SIMOVERT MASTERDRIVES
Cooling air
Minimum clearances for cooling air requirement (types E, F, G)
Mounting surface
10 mm
180 mm
350 mm
270 mm
Type E
Side view
Dimension drawing for types E, F
Operating Instructions
Mounting surface
Type
E,F
G
Clearances
400
320
[mm]
Cutouts
for M8 screw
10 mm
270 mm
360 mm
Type F
Front view
Installation
5-3
