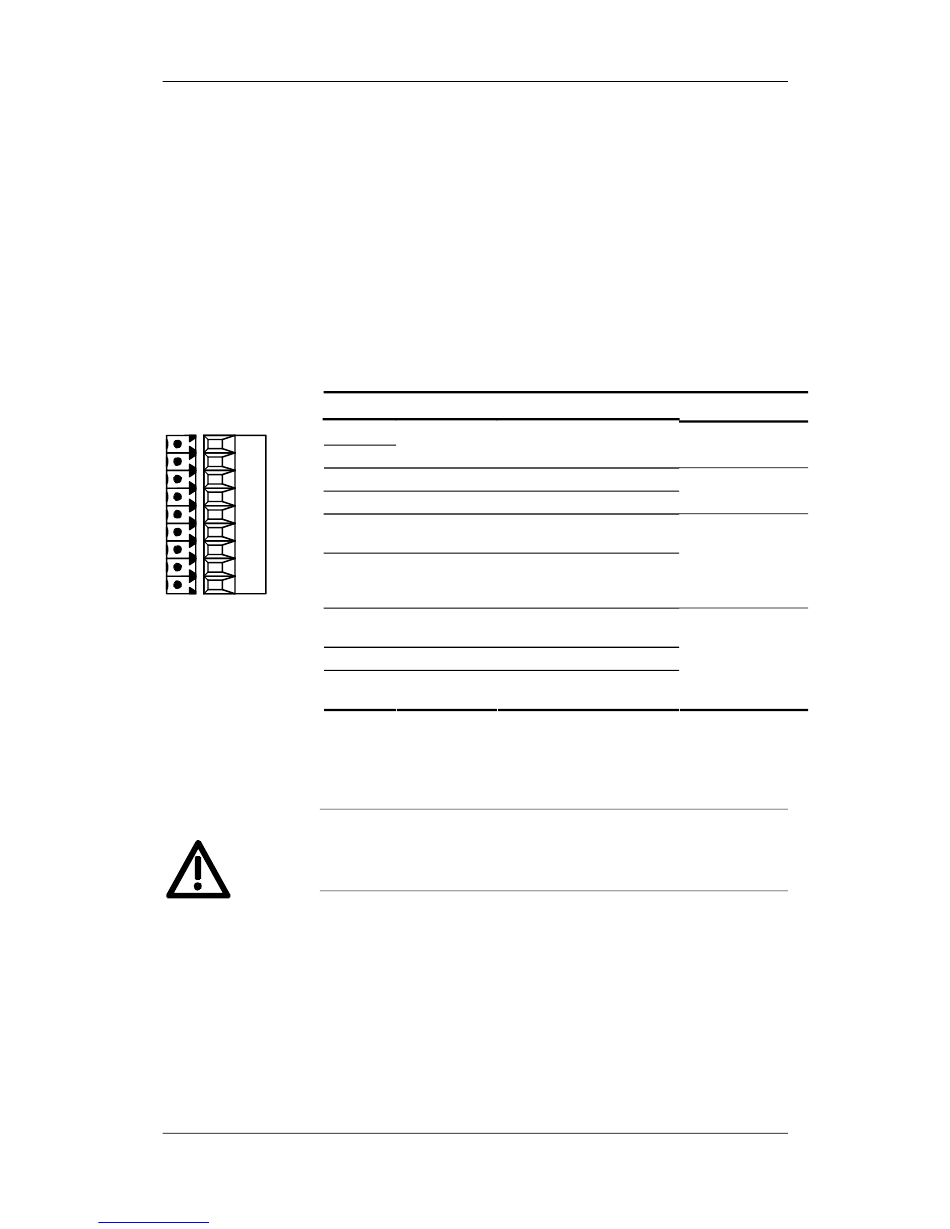

Terminal strip X9 (only for units with a rated input voltage of
3-ph. 380 – 480 V with "safe stop" option)
The 9-pole terminal strip is used for connecting up a 24 V voltage
supply and for connecting up a main or bypass contactor and for the
"Safe STOP" function.
The voltage supply is required if the inverter is connected up via a main
or bypass contactor.
The connections for the contactor control are floating.
The "Safe STOP" function ensures that no rotating field can occur at
the motor terminals, i.e. the motor cannot rotate. By opening the jumper
between terminals X9.5 and X9.6 (through an external contact), the
"Safe STOP" function is activated. The inverter is delivered with
jumpered terminals X9.5 and X9.6.
Terminal
1
1
2
2
3
3
4
4
5
5
6
7
6
8
9
7
8
9
Connectable cross-section: 1.5 mm
Table 7-9
The power terminals may still be live even if the "Safe STOP" function
is activated!
manuals search engine
Designation Description
+24 V (in) 24 V voltage supply
0 V (DC 22 V ... 30 V)
Contact 1 "Safe STOP" checkback
Contact 2 "Safe STOP" checkback
P24 DC Supply voltage "safe stop"
Control input Rated resistance of field coil
"safe stop" ≥ 823 Ω ± 10 % at 20 °C
Main contactor Main contactor control
control
n.c. Not connected
Main contactor Main contactor control
control
2
(AWG 16)
Connection of external aux. voltage supply DC 24 V, safe stop, main
contactor control
Operating Instructions
08.2009
Range
DC 24 V ≤ 2.5 A
DC 30 V
1 A
DC 24 V /
30 mA
DC 20 - 30 V
max. operating
frequency: 6/min
DC 30 V
0.5 A
6SE7087-6JD50 Siemens AG
SIMOVERT MASTERDRIVES
