Parameterization
8.5

Parameter input with DriveMonitor

NOTE
Please refer to the online help for detailed information on
DriveMonitor (
8.5.1

Installation and connection

8.5.1.1

Installation

A CD is included with the devices of the MASTERDRIVES Series when
they are delivered. The operating tool supplied on the CD (DriveMoni-
tor) is automatically installed from this CD. If "automatic notification on
change" is activated for the CD drive on the PC, user guidance starts
when you insert the CD and takes you through installation of
DriveMonitor. If this is not the case, start file "Autoplay.exe" in the root
directory of the CD.
8.5.1.2

Connection

There are two ways of connecting a PC to a device of the SIMOVERT
MASTERDRIVES Series via the USS interface. The devices of the
SIMOVERT MASTERDRIVES Series have both an RS232 and an
RS485 interface.
RS232 interface The serial interface that PCs are equipped with by default functions as
an RS232 interface. This interface is not suitable for bus operation and
is therefore only intended for operation of a SIMOVERT
MASTERDRIVES device.
Fig. 8-5
NOTICE
DriveMonitor must not be operated via the Sub-D socket X300 if the
SST1 interface parallel to it is already being used for another purpose,
e.g. bus operation with SIMATIC as the master.
8-14
button or F1 key).
5
9
4
8
3
7
2
6
1

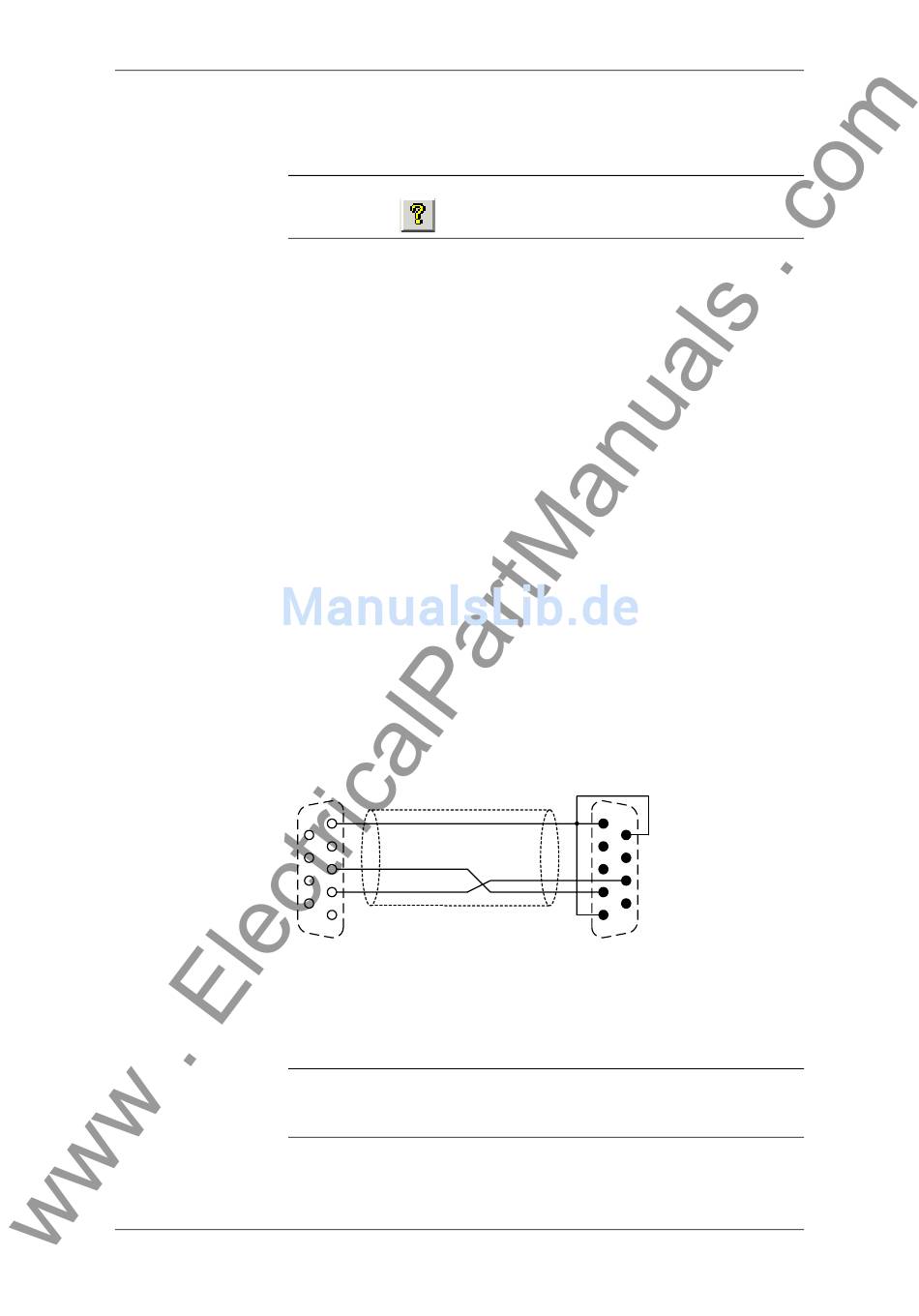

To PC COMx
socket
Connecting cable for connecting PC COM(1-4) to SIMOVERT
MASTERDRIVES X300
X300:
5 1 n.c. (not connected)
9
4
2 RxD (RS232)
8
3 Rx+/Tx+ (RS485)
3
4
7
2 5 Ground
6
6 +5V (OP1S)
1
7 TxD (RS232)
8 Rx-/Tx- (RS485)
9 Ground
Device side
-X300 (compact PLUS -X103)
9-pin SUB-D connector
6SE7087-6JK50
Operating Instructions SIMOVERT MASTERDRIVES
05.2006
(Compact PLUS: RS232 Id)
Siemens AG
