05.2006
5.2

Installing the optional boards

WARNING
The boards may only be replaced by qualified personnel.
It is not permitted to withdraw or insert the boards under voltage.
Slots A maximum of six slots are available in the electronics box of the unit
for installing optional boards. The slots are designated with the letters A
to G. Slot B is not provided in the electronics box. It is used in units of
the Compact PLUS type of construction.
If you wish to use slots D to G, you will additionally require the
following:
♦ Bus expansion LBA (Local Bus Adapter), which is used for mounting
♦ An adaption board (ADB - Adaption Board) on which up to two
The slots are situated at the following positions:
♦ Slot A
♦ Slot C
♦ Slot D
♦ Slot E
♦ Slot F
♦ Slot G

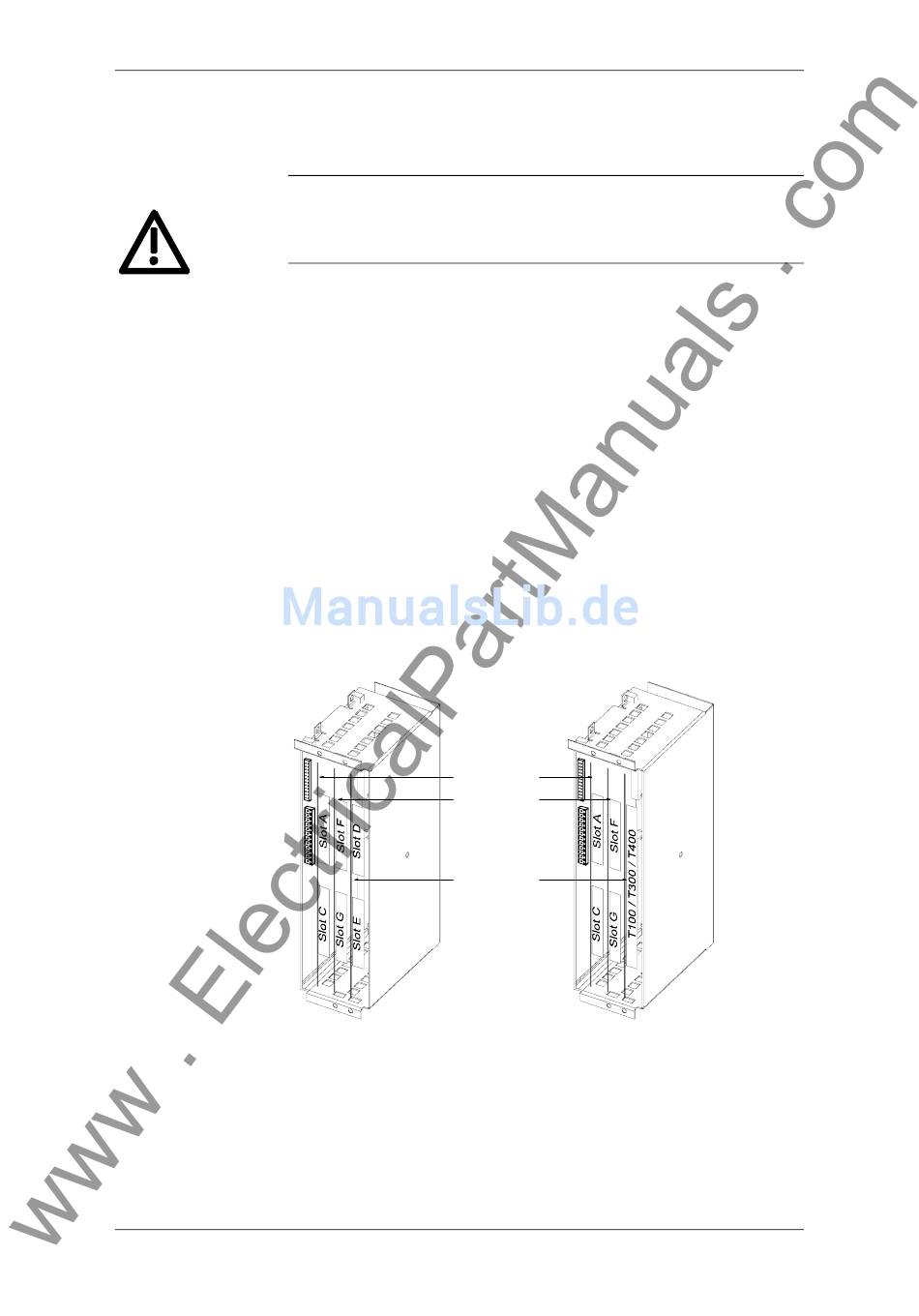

Fig. 5-7
Siemens AG 6SE7087-6JK50
SIMOVERT MASTERDRIVES
the CU control board and up to two adaption boards, and
optional boards can be mounted.
CU control board
CU control board
Adaption board at mounting position 2 Position: top
Adaption board at mounting position 2 Position: bottom
Adaption board at mounting position 3 Position: top
Adaption board at mounting position 3 Position: bottom
Mount. pos. 1
Mount. pos. 3
Mount. pos. 2
Position of the slots in the electronics box
Operating Instructions
Installation
Position: top
Position: bottom
5-9
