Parameterization
P367 = ?
P368 = ?
P368 = 6
4 7, 8
0, 1, 2, 3
P700.1 = ?
P918.1 = ?
P370 = 1
P060 = 0
Fig. 8-18
Function diagram Function diagram modules (function diagrams) are shown after the flow
modules
chart for parameter modules stored in the unit software. On the first few
pages are the:
♦ setpoint and command sources, on the following pages are the
♦ analog outputs and the display parameters and the
♦ open-loop and closed-loop control types.
It is therefore possible to put together the function diagrams to exactly
suit the selected combination of setpoint/command source and
open/closed-loop control type. This will give you an overview of the
functionality parameterized in the units and of the necessary
assignment of the terminals.
The function parameters and visualization parameters specified in the
function diagrams are automatically adopted in the user menu and can
be visualized or changed there.
The parameter numbers of the user menu are entered in P360.
8-30
Select type of control
0: V/f open-loop control
2: Torque control
3: Speed control
Select setpoint and command source
0: PMU (not for Compact PLUS)
1: Analog input and terminal strip
2: Fixed setpoints and terminal strip
3: MOP and terminal strip
4: USS
5: not used
6: PROFIBUS (CBP2)
7: OP1S and fixed setpoints via SCom1
8: OP1S and MOP via SCom1
Input the USS address
Input the PROFIBUS address
Start of quick parameterization
0: No parameter change
1: Parameter change according to chosen
combination of parameter modules
Note:
After start-up an automatic factory setting of P366 = 0
takes place, followed by the associated parameterization.
Return to user menu

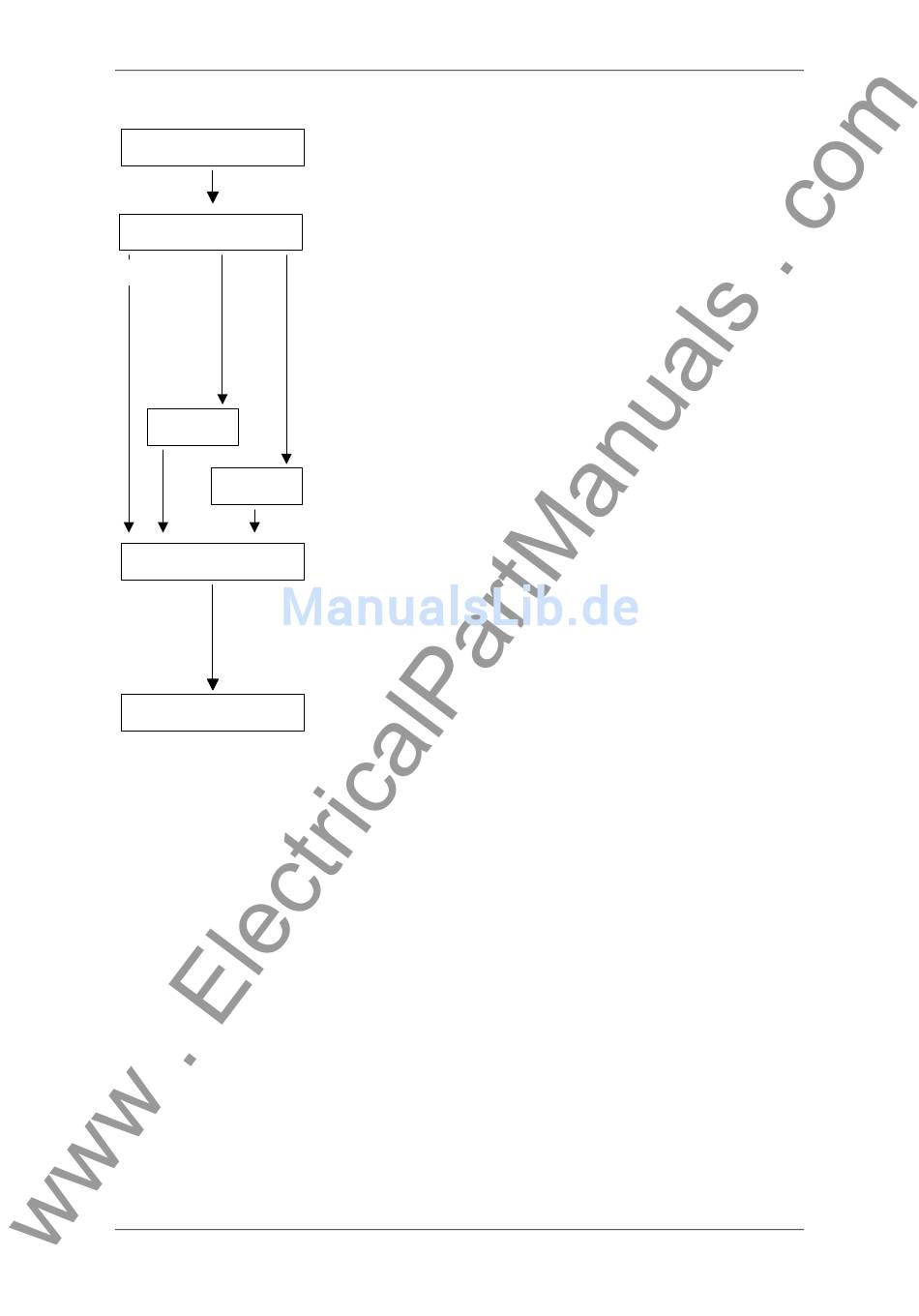

Sequence for parameterizing with parameter modules
