RS485 interface
The RS485 interface is multi-point capable and therefore suitable for
bus operation. You can use it to connect 31 SIMOVERT
MASTERDRIVES with a PC. On the PC, either an integrated RS485
interface or an RS232 ↔ RS485 interface converter is necessary. On
the device, an RS485 interface is integrated into the -X300 (compact
PLUS -X103) connection. For the cable: see pin assignment -X300 and
device documentation of the interface converter.
8.5.2

Establishing the connection between DriveMonitor and the device

8.5.2.1

Setting the USS interface

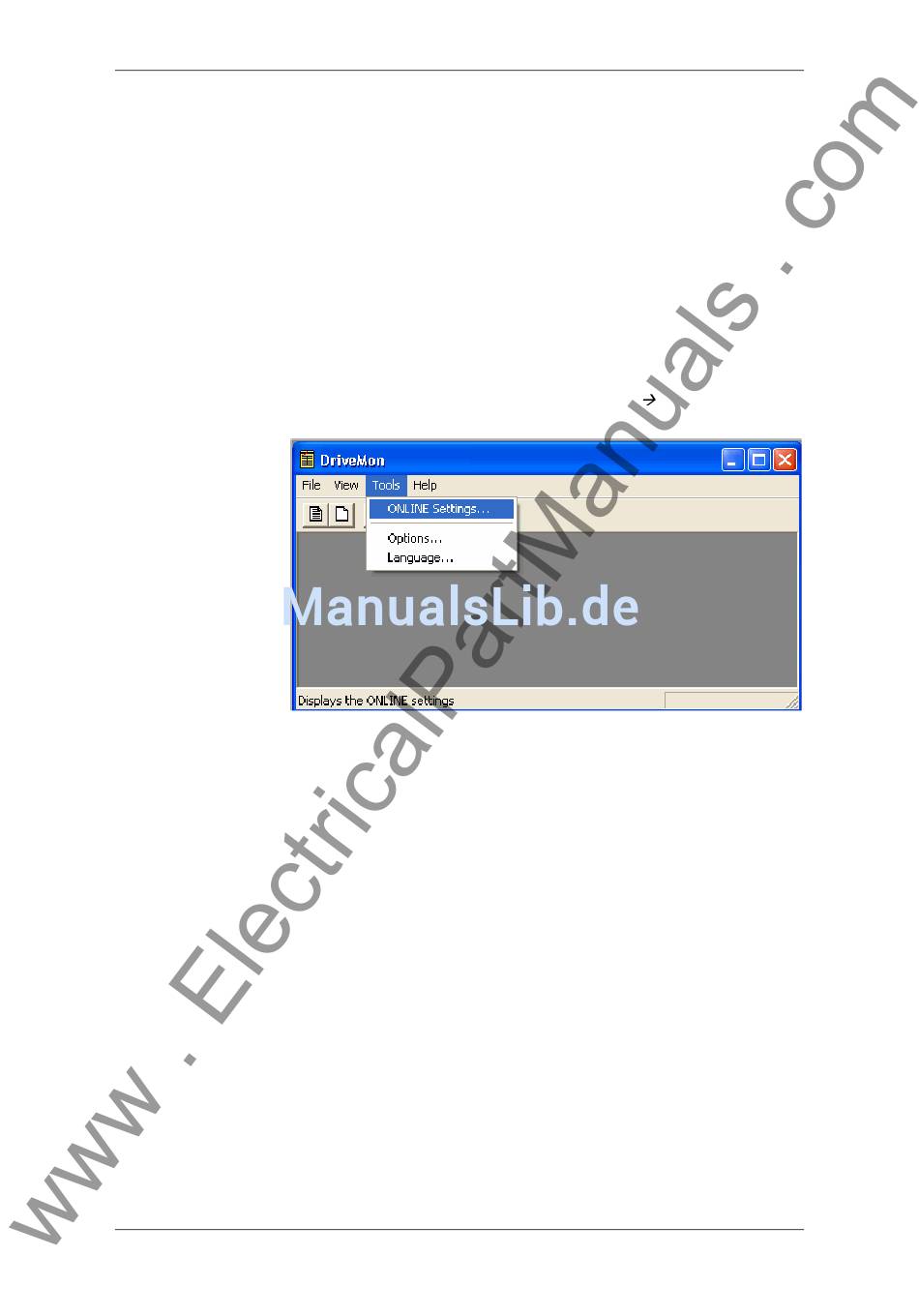

You can configure the interface with menu Tools
Fig. 8-6
Siemens AG 6SE7087-6JK50
SIMOVERT MASTERDRIVES
Online settings
Operating Instructions
Parameterization
ONLINE Settings.
