Installation
Fig. 5-3
5.1.2

Installing units of type K

Fig. 5-4
5-4
Mounting surface
25 mm
119 mm
350 mm
Side view

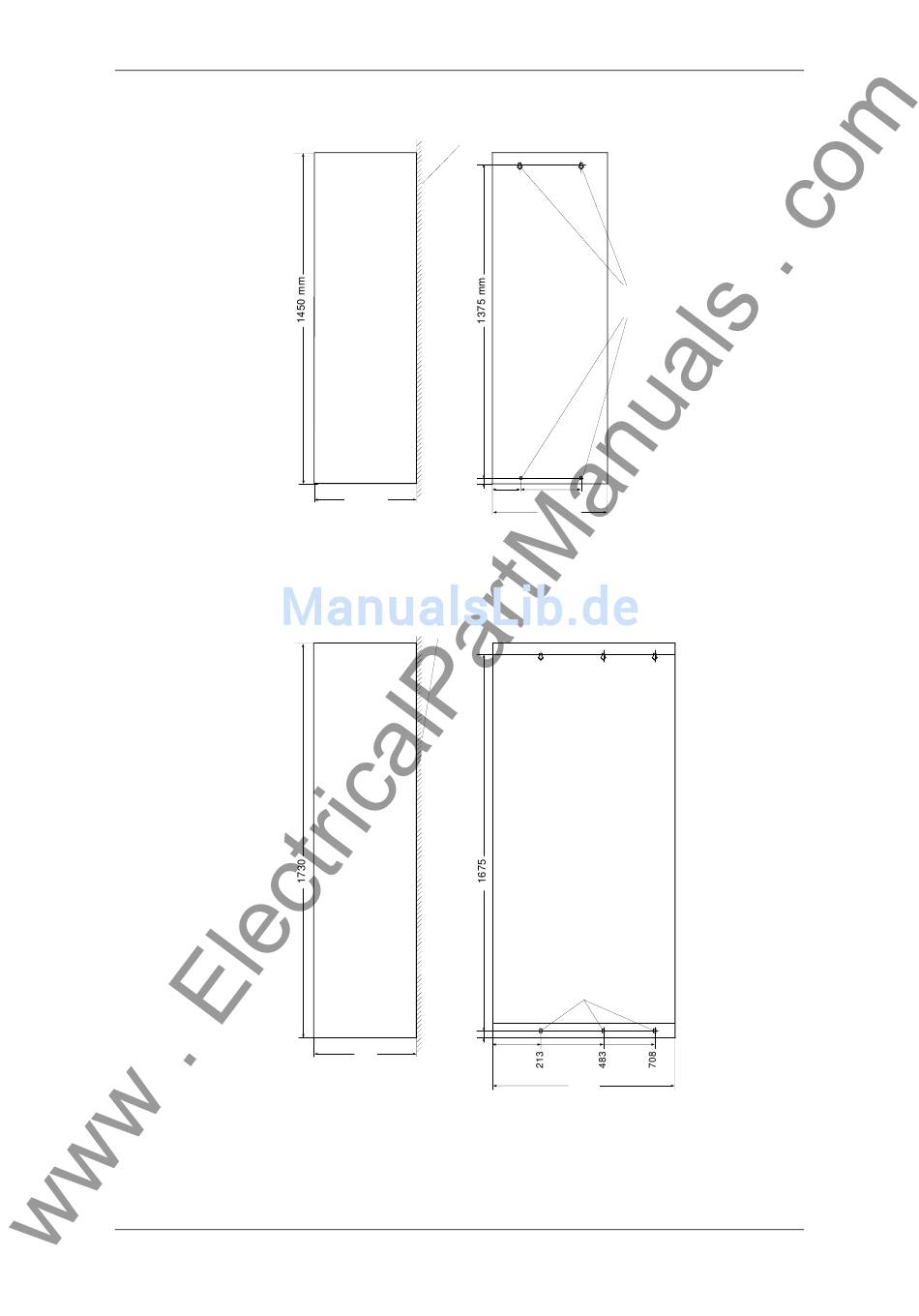

Dimension drawing for type G
Mounting surface
25
550
Side view
Dimension drawing for type K
Operating Instructions
Cutout for
M8 screw
270 mm
508 mm
Front view
Cutout for M8 / M10 screw
Oblong holes 9 x 15
for M8 screw
800
Front view
6SE7087-6JK50
SIMOVERT MASTERDRIVES
05.2006
