Installation
Filters
The following filter mat is approved for use:
FIBROIDELASTOV made by DELBAG-Luftfilter GMBH
Technical filter data in accordance with DIN 24185:
Dimensions: 1000 x 1500 x 10 mm
Order No.: 16 065 81
Manufacturer:
DELBAG-Luftfilter GMBH
Holzhauser Straße 159
13509 Berlin 27
Telephone: (030) 4381-0
Fax:
Fig. 5-5
5-6
Design
Filter class
Volumetric flow V
∆
Initial pressure difference
∆
End pressure difference p E
Average degree of separation
Dust storage capability
Fire behaviour (DIN 53438)
Heat resistance max.
Humidity resistance (rel. humidity)
(030) 4381-222
100
80
60
40
20
0
0 2000

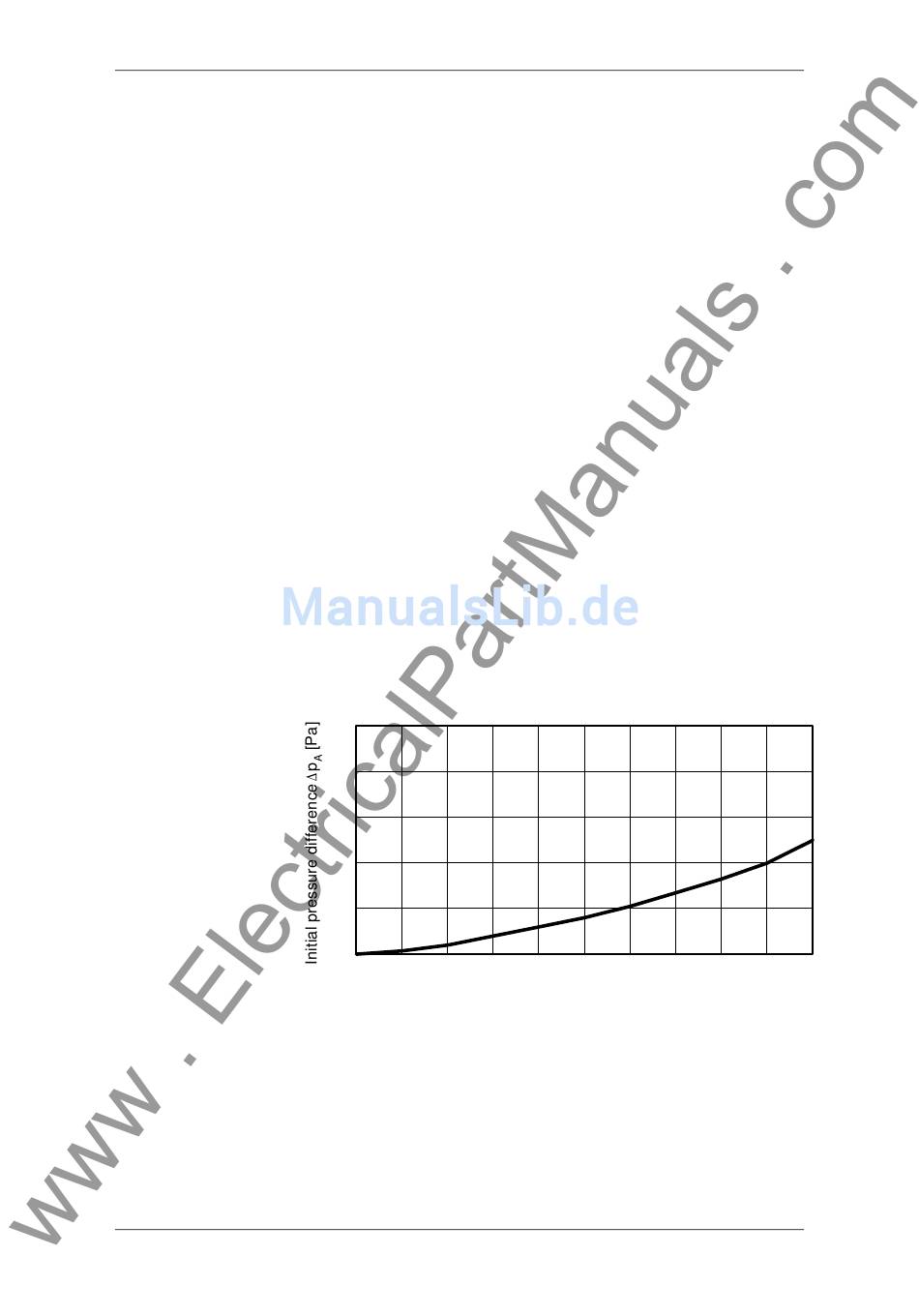

Data sheet of the filter mat
3 2
(m /h) x m
p A Pa
Pa
%
2
g/m
°C
%
4000 6000
Volumetric flow V [(m³/h) x m²]
6SE7087-6JK50
Operating Instructions SIMOVERT MASTERDRIVES
05.2006
FIBROID ELASTOV 10
EU 2
2500 - 10000
9 - 46
300
72
-
F1/K1
80
100
8000 10000
Siemens AG
