Replacing The Fan Fuse (Type K); Replacing The Fan Transformer Fuse -F3, -F4 (Type K) - Siemens simovert masterdrives Betriebsanleitung

Maintenance
9.2

Replacing the fan fuse (type K)

The fuses are in a fuse holder which is mounted on a DIN rail in the
bottom of the unit. The fuse holder has to be opened to replace the
fuses.
9.3

Replacing the fan transformer fuse -F3, -F4 (type K)

Construction type K: Fuses -F3, -F4
The fuses are in a fuse holder which is arranged below the fan in front
of the air baffle plate. To replace the fuses, the fuse holder has to be
opened.

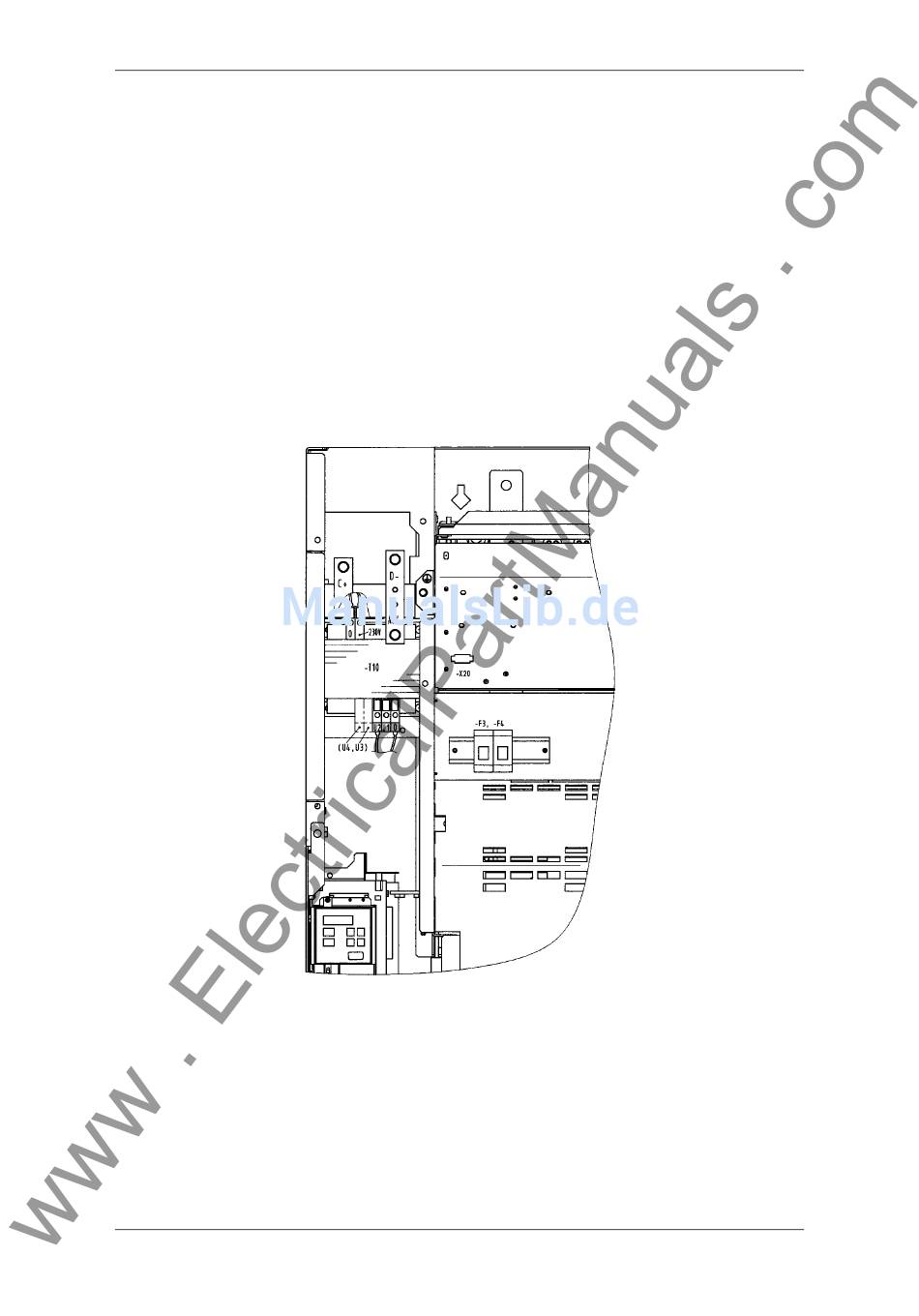

Fig. 9-3
9-4
Fan transformer (-T10), fan transformer fuses (-F3, -F4)
