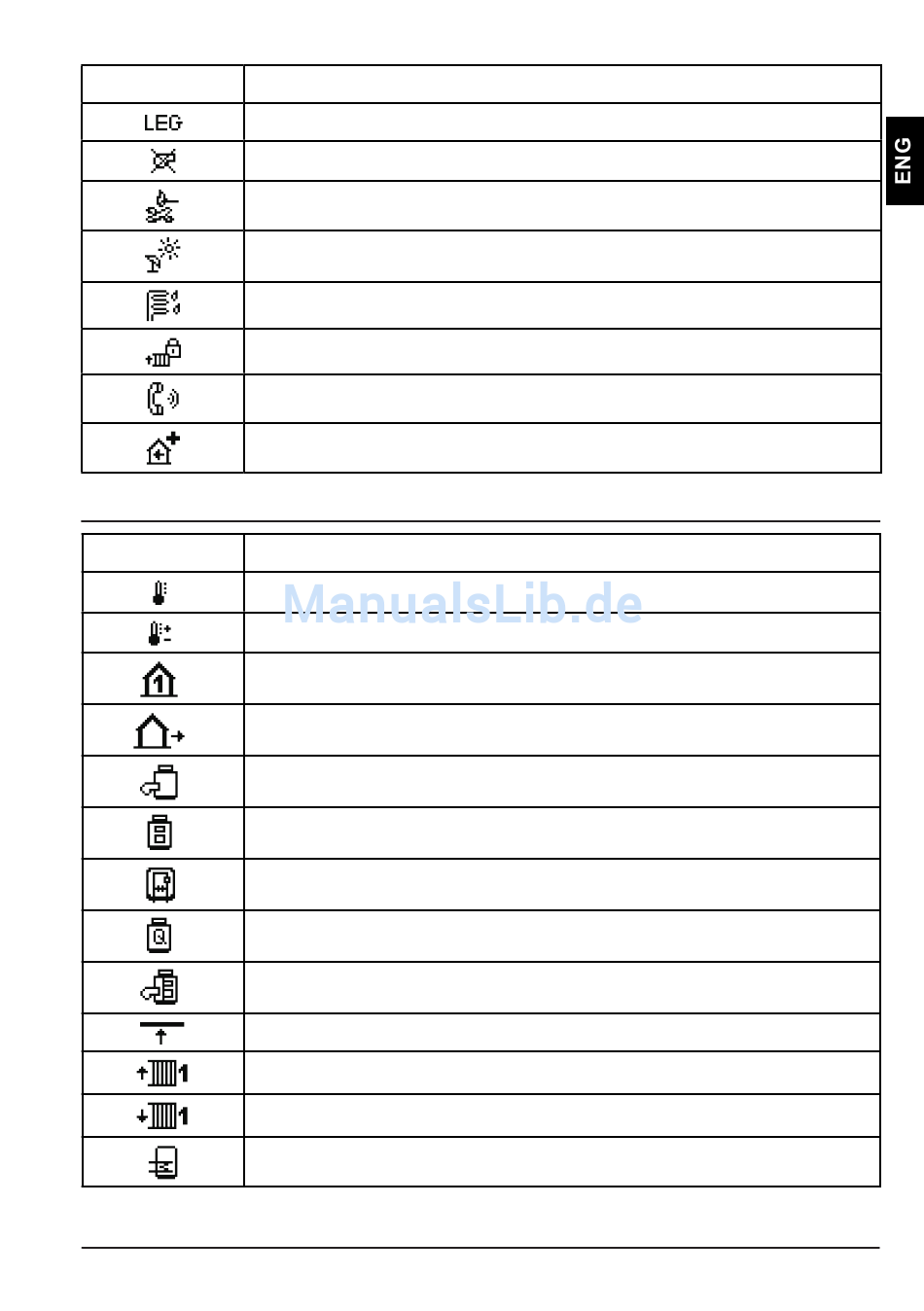

SYMBOLS FOR INDICATION OF TEMPERATURES AND OTHER DATA

Symbol
* The number indicates the first or the second heating circuit.
Description
Anti legionella protection.
Liquid fuel boiler switched-off (blocked).
Solid fuel boiler switch-on.
Automatic switchover to summer heating mode.
Floor drying.
Operation with constant stand-pipe temperature.
Remote activation.
Boost heating.
Description
Measured temperature.
Calculated or requested temperature.
Room temperature.*
Outdoor temperature.
Liquid fuel boiler temperature.
Solid fuel boiler temperature.
Gas boiler temperature.
Temperature of heat source obtained through BUS connection.
Combined (liquid and solid fuel) boiler temperature.
Heat source temperature - supply temperature sensor.
Stand-pipe temperature.*
Return-pipe temperature.*
Domestic hot water temperature.
