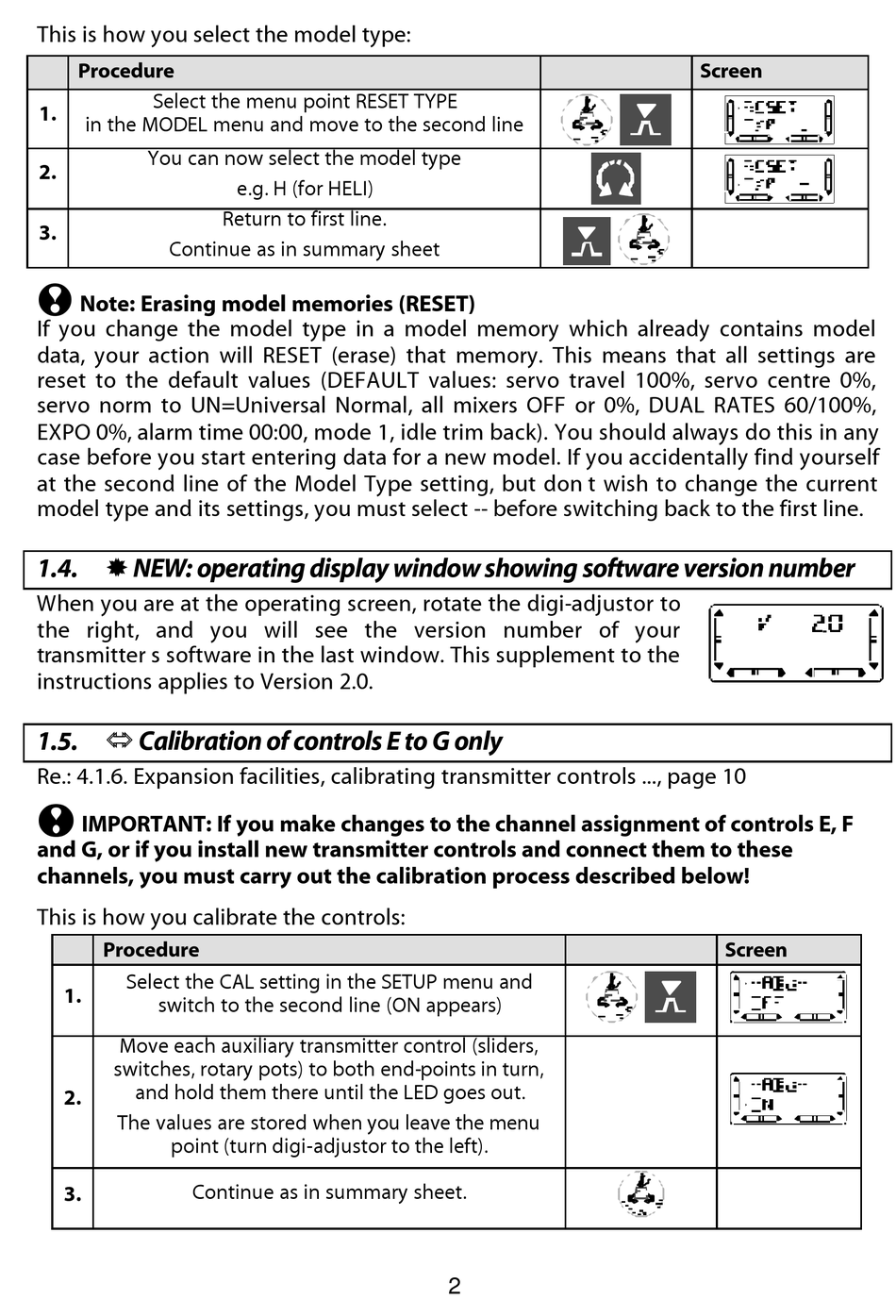

This is how you select the model type:
Procedure
Select the menu point RESET TYPE
1.
in the MODEL menu and move to the second line
You can now select the model type
2.
3.
Continue as in summary sheet
!
Note: Erasing model memories (RESET)
If you change the model type in a model memory which already contains model
data, your action will RESET (erase) that memory. This means that all settings are
reset to the default values (DEFAULT values: servo travel 100%, servo centre 0%,
servo norm to UN=Universal Normal, all mixers OFF or 0%, DUAL RATES 60/100%,
EXPO 0%, alarm time 00:00, mode 1, idle trim back). You should always do this in any
case before you start entering data for a new model. If you accidentally find yourself
at the second line of the Model Type setting, but don't wish to change the current
model type and its settings, you must select -- before switching back to the first line.

1.4. - - NEW: operating display window showing software version number

When you are at the operating screen, rotate the digi-adjustor to
the right, and you will see the version number of your
transmitter's software in the last window. This supplement to the
instructions applies to Version 2.0.
1.5. ó ó Calibration of controls E to G only
Re.: 4.1.6. Expansion facilities, calibrating transmitter controls ..., page 10
! !
IMPORTANT: If you make changes to the channel assignment of controls E, F
and G, or if you install new transmitter controls and connect them to these
channels, you must carry out the calibration process described below!
This is how you calibrate the controls:
Procedure
Select the CAL setting in the SETUP menu and
1.
switch to the second line (ON appears)
Move each auxiliary transmitter control (sliders,
switches, rotary pots) to both end-points in turn,
and hold them there until the LED goes out.
2.
The values are stored when you leave the menu
point (turn digi-adjustor to the left).
Continue as in summary sheet.
3.
e.g. H (for HELI)
Return to first line.
2
Screen
Screen
