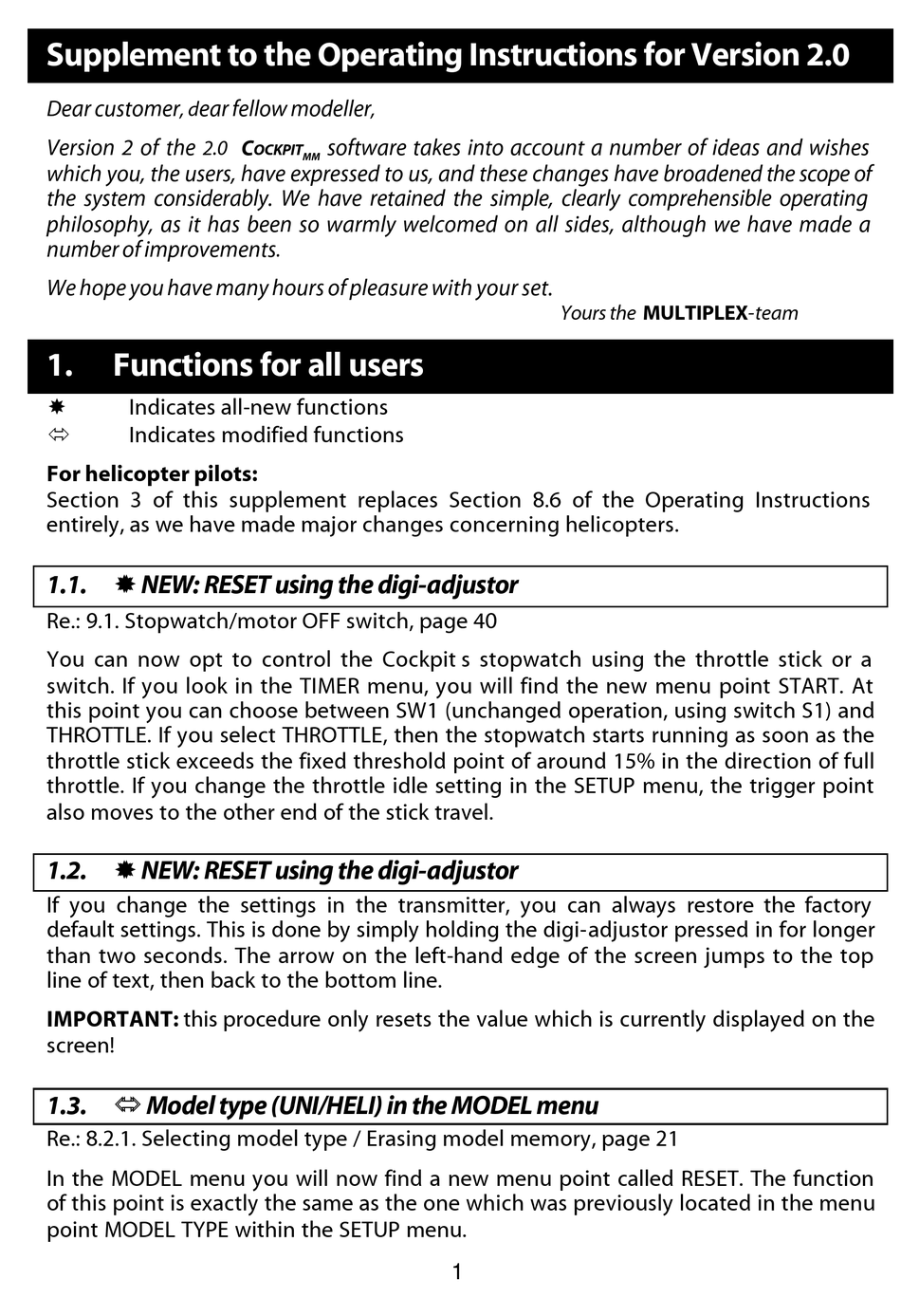

Supplement to the Operating Instructions for Version 2.0

Dear customer ear fellow modeller
, d
Version 2 of the
2.0 C
which you, the users, have expressed to us, and these changes have broadened the scope of
the system considerably. We have retained the simple, clearly comprehensible operating
philosophy, as it has been so warmly welcomed on all sides, although we have made a
number of improvements
We hope you have many hours of pleasure with your set.
1.

Functions for all users

-
Indicates all-new functions
ó
Indicates modified functions
For helicopter pilots:
Section 3 of this supplement replaces Section 8.6 of the Operating Instructions
entirely, as we have made major changes concerning helicopters.

1.1. - - NEW: RESET using the digi-adjustor

Re.: 9.1. Stopwatch/motor OFF switch, page 40
You can now opt to control the Cockpit's stopwatch using the throttle stick or a
switch. If you look in the TIMER menu, you will find the new menu point START. At
this point you can choose between SW1 (unchanged operation, using switch S1) and
THROTTLE. If you select THROTTLE, then the stopwatch starts running as soon as the
throttle stick exceeds the fixed threshold point of around 15% in the direction of full
throttle. If you change the throttle idle setting in the SETUP menu, the trigger point
also moves to the other end of the stick travel.
1.2. - - NEW: RESET using the digi-adjustor
If you change the settings in the transmitter, you can always restore the factory
default settings. This is done by simply holding the digi-adjustor pressed in for longer
than two seconds. The arrow on the left-hand edge of the screen jumps to the top
line of text, then back to the bottom line.
IMPORTANT: this procedure only resets the value which is currently displayed on the
screen!
1.3. ó ó Model type (UNI/HELI) in the MODEL menu
Re.: 8.2.1. Selecting model type / Erasing model memory, page 21
In the MODEL menu you will now find a new menu point called RESET. The function
of this point is exactly the same as the one which was previously located in the menu
point MODEL TYPE within the SETUP menu.
,
software takes into account a number of ideas and wishes
OCKPIT
MM
.
Yours the MULTIPLEX-team
1
