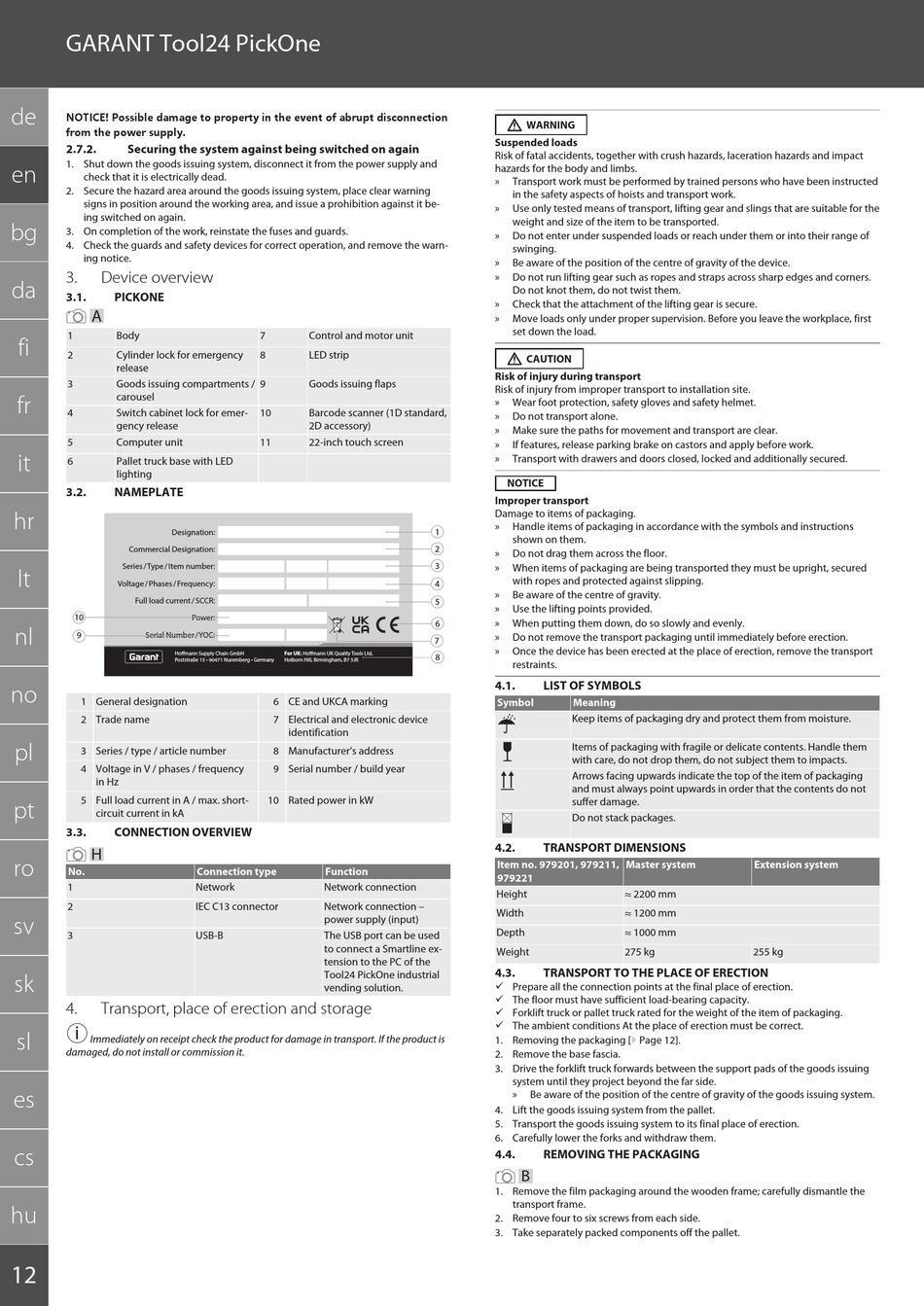

GARANT Tool24 PickOne
de
NOTICE! Possible damage to property in the event of abrupt disconnection
from the power supply.
2.7.2. Securing the system against being switched on again
1. Shut down the goods issuing system, disconnect it from the power supply and
en
check that it is electrically dead.
2. Secure the hazard area around the goods issuing system, place clear warning
signs in position around the working area, and issue a prohibition against it be-
ing switched on again.
bg
3. On completion of the work, reinstate the fuses and guards.
4. Check the guards and safety devices for correct operation, and remove the warn-
ing notice.
3. Device overview
da
3.1. PICKONE
A
1 Body
fi
2 Cylinder lock for emergency
release
3 Goods issuing compartments /
carousel
fr
4 Switch cabinet lock for emer-
gency release
5 Computer unit
it
6 Pallet truck base with LED
lighting
3.2. NAMEPLATE
hr
Designation:
Commercial Designation:
Series / Type / Item number:
lt
Voltage / Phases / Frequency:
Full load current / SCCR:
10
nl
Serial Number / YOC:
9
Ho mann Supply Chain GmbH
Poststraße 15 • 90471 Nuremberg • Germany
no
1 General designation
2 Trade name
pl
3 Series / type / article number
4 Voltage in V / phases / frequency
in Hz
5 Full load current in A / max. short-
pt
circuit current in kA
3.3. CONNECTION OVERVIEW
H
ro
No.
1
2
sv
3
sk
4. Transport, place of erection and storage
i
sl
Immediately on receipt check the product for damage in transport. If the product is
damaged, do not install or commission it.
es
cs
hu
12
7 Control and motor unit
8 LED strip
9 Goods issuing flaps
10 Barcode scanner (1D standard,
2D accessory)
11 22-inch touch screen
Power:
For UK: Ho mann UK Quality Tools Ltd,
Holborn Hill, Birmingham, B7 5JR
6 CE and UKCA marking
7 Electrical and electronic device
identification
8 Manufacturer's address
9 Serial number / build year
10 Rated power in kW
Connection type Function
Network Network connection
IEC C13 connector Network connection –
power supply (input)
USB-B The USB port can be used
to connect a Smartline ex-
tension to the PC of the
Tool24 PickOne industrial
vending solution.
WARNING
Suspended loads
Risk of fatal accidents, together with crush hazards, laceration hazards and impact
hazards for the body and limbs.
» Transport work must be performed by trained persons who have been instructed
in the safety aspects of hoists and transport work.
» Use only tested means of transport, lifting gear and slings that are suitable for the
weight and size of the item to be transported.
» Do not enter under suspended loads or reach under them or into their range of
swinging.
» Be aware of the position of the centre of gravity of the device.
» Do not run lifting gear such as ropes and straps across sharp edges and corners.
Do not knot them, do not twist them.
» Check that the attachment of the lifting gear is secure.
» Move loads only under proper supervision. Before you leave the workplace, first
set down the load.
CAUTION
Risk of injury during transport
Risk of injury from improper transport to installation site.
» Wear foot protection, safety gloves and safety helmet.
» Do not transport alone.
» Make sure the paths for movement and transport are clear.
» If features, release parking brake on castors and apply before work.
» Transport with drawers and doors closed, locked and additionally secured.
NOTICE
Improper transport
Damage to items of packaging.
» Handle items of packaging in accordance with the symbols and instructions
1
shown on them.
2
» Do not drag them across the floor.
3
» When items of packaging are being transported they must be upright, secured
with ropes and protected against slipping.
4
» Be aware of the centre of gravity.
5
» Use the lifting points provided.
» When putting them down, do so slowly and evenly.
6
» Do not remove the transport packaging until immediately before erection.
7
» Once the device has been erected at the place of erection, remove the transport
8
restraints.
4.1. LIST OF SYMBOLS
Symbol Meaning
Keep items of packaging dry and protect them from moisture.
Items of packaging with fragile or delicate contents. Handle them
with care, do not drop them, do not subject them to impacts.
Arrows facing upwards indicate the top of the item of packaging
and must always point upwards in order that the contents do not
suffer damage.
Do not stack packages.
4.2. TRANSPORT DIMENSIONS
Item no. 979201, 979211,
979221
Height
Width
Depth
Weight
4.3. TRANSPORT TO THE PLACE OF ERECTION
ü Prepare all the connection points at the final place of erection.
ü The floor must have sufficient load-bearing capacity.
ü Forklift truck or pallet truck rated for the weight of the item of packaging.
ü The ambient conditions At the place of erection must be correct.
1. Removing the packaging [} Page 12].
2. Remove the base fascia.
3. Drive the forklift truck forwards between the support pads of the goods issuing
system until they project beyond the far side.
» Be aware of the position of the centre of gravity of the goods issuing system.
4. Lift the goods issuing system from the pallet.
5. Transport the goods issuing system to its final place of erection.
6. Carefully lower the forks and withdraw them.
4.4. REMOVING THE PACKAGING
B
1. Remove the film packaging around the wooden frame; carefully dismantle the
transport frame.
2. Remove four to six screws from each side.
3. Take separately packed components off the pallet.
Master system Extension system
≈ 2200 mm
≈ 1200 mm
≈ 1000 mm
275 kg 255 kg
