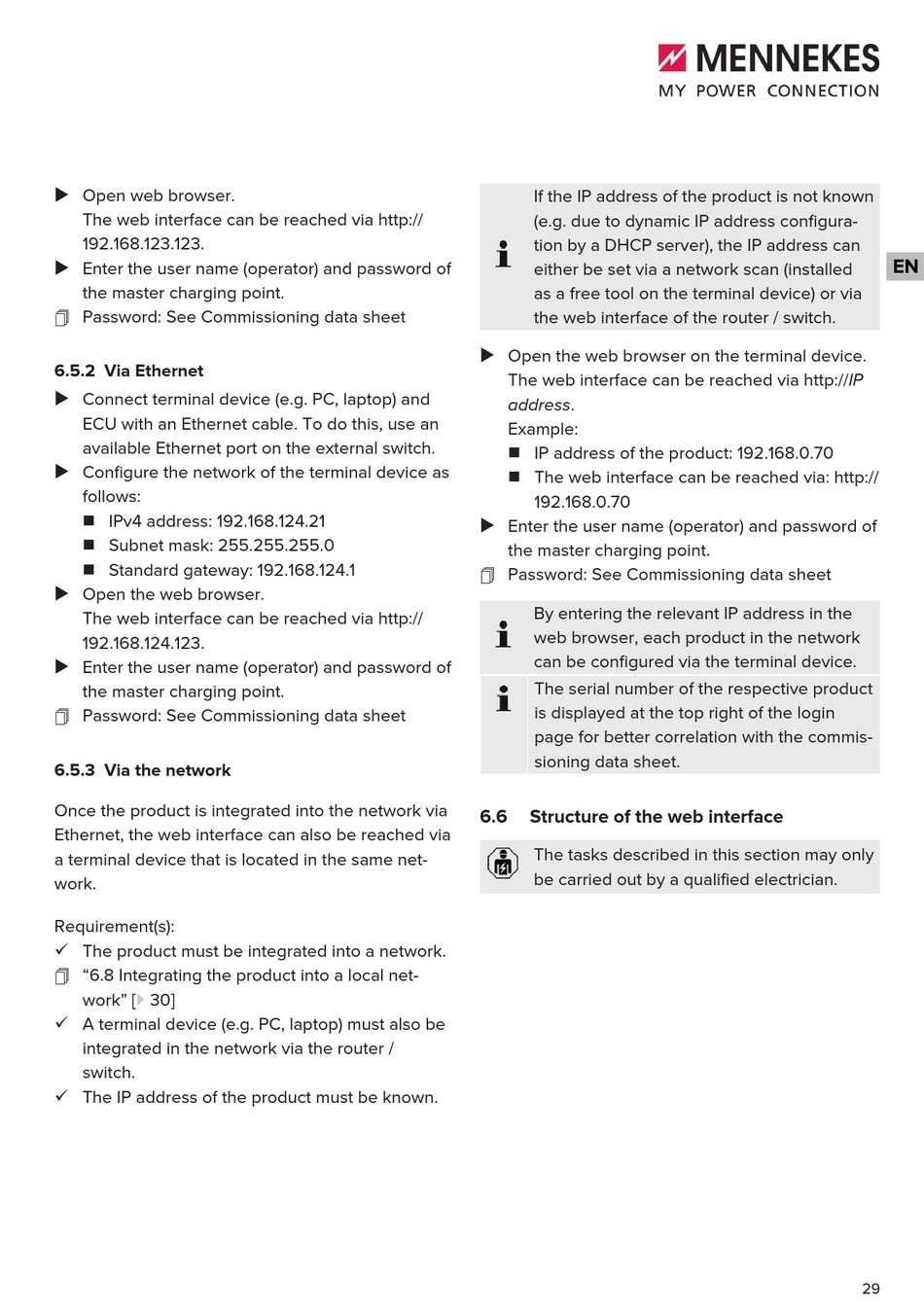

u Open web browser.
The web interface can be reached via http://
192.168.123.123.
u Enter the user name (operator) and password of
the master charging point.
1 Password: See Commissioning data sheet

6.5.2 Via Ethernet

u Connect terminal device (e.g. PC, laptop) and
ECU with an Ethernet cable. To do this, use an
available Ethernet port on the external switch.
u Configure the network of the terminal device as
follows:
n IPv4 address: 192.168.124.21
n Subnet mask: 255.255.255.0
n Standard gateway: 192.168.124.1
u Open the web browser.
The web interface can be reached via http://
192.168.124.123.
u Enter the user name (operator) and password of
the master charging point.
1 Password: See Commissioning data sheet

6.5.3 Via the network

Once the product is integrated into the network via
Ethernet, the web interface can also be reached via
a terminal device that is located in the same net-
work.
Requirement(s):
ü The product must be integrated into a network.
1 "6.8 Integrating the product into a local net-
work" [} 30]
ü A terminal device (e.g. PC, laptop) must also be
integrated in the network via the router /
switch.
ü The IP address of the product must be known.
If the IP address of the product is not known
(e.g. due to dynamic IP address configura-
tion by a DHCP server), the IP address can
either be set via a network scan (installed
as a free tool on the terminal device) or via
the web interface of the router / switch.
u Open the web browser on the terminal device.
The web interface can be reached via http://IP
address.
Example:
n IP address of the product: 192.168.0.70
n The web interface can be reached via: http://
192.168.0.70
u Enter the user name (operator) and password of
the master charging point.
1 Password: See Commissioning data sheet
By entering the relevant IP address in the
web browser, each product in the network
can be configured via the terminal device.
The serial number of the respective product
is displayed at the top right of the login
page for better correlation with the commis-
sioning data sheet.
6.6

Structure of the web interface

The tasks described in this section may only
be carried out by a qualified electrician.
