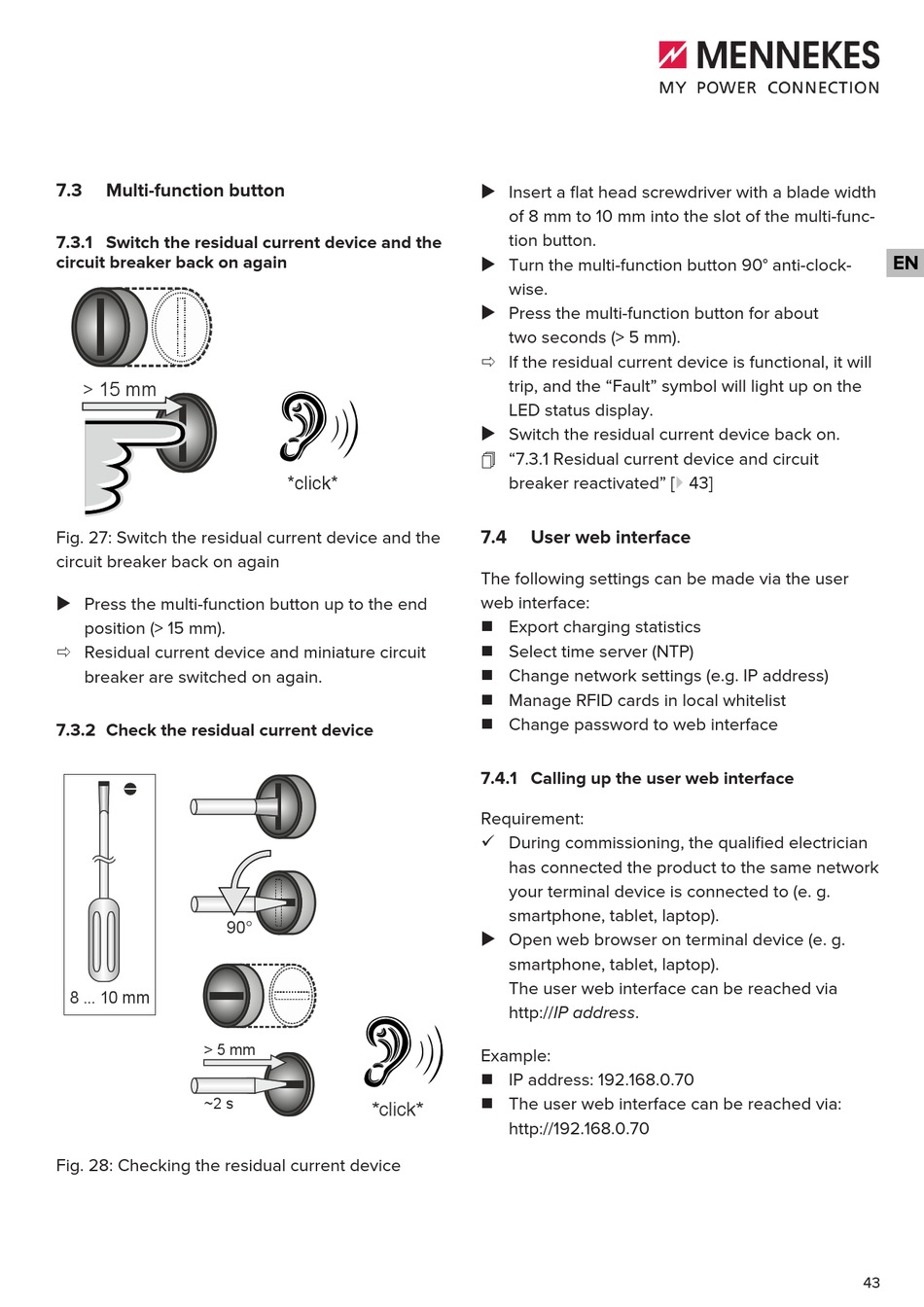

7.3

Multi-function button

7.3.1 Switch the residual current device and the
circuit breaker back on again
> 15 mm
Fig. 27: Switch the residual current device and the
circuit breaker back on again
u Press the multi-function button up to the end
position (> 15 mm).
ð Residual current device and miniature circuit
breaker are switched on again.

7.3.2 Check the residual current device

90°
8 ... 10 mm
> 5 mm
~2 s
Fig. 28: Checking the residual current device
*click*
*click*
u Insert a flat head screwdriver with a blade width
of 8 mm to 10 mm into the slot of the multi-func-
tion button.
u Turn the multi-function button 90° anti-clock-
wise.
u Press the multi-function button for about
two seconds (> 5 mm).
ð If the residual current device is functional, it will
trip, and the "Fault" symbol will light up on the
LED status display.
u Switch the residual current device back on.
1 "7.3.1 Residual current device and circuit
breaker reactivated" [} 43]
7.4

User web interface

The following settings can be made via the user
web interface:
n Export charging statistics
n Select time server (NTP)
n Change network settings (e.g. IP address)
n Manage RFID cards in local whitelist
n Change password to web interface

7.4.1 Calling up the user web interface

Requirement:
ü During commissioning, the qualified electrician
has connected the product to the same network
your terminal device is connected to (e. g.
smartphone, tablet, laptop).
u Open web browser on terminal device (e. g.
smartphone, tablet, laptop).
The user web interface can be reached via
http://IP address.
Example:
n IP address: 192.168.0.70
n The user web interface can be reached via:
http://192.168.0.70
