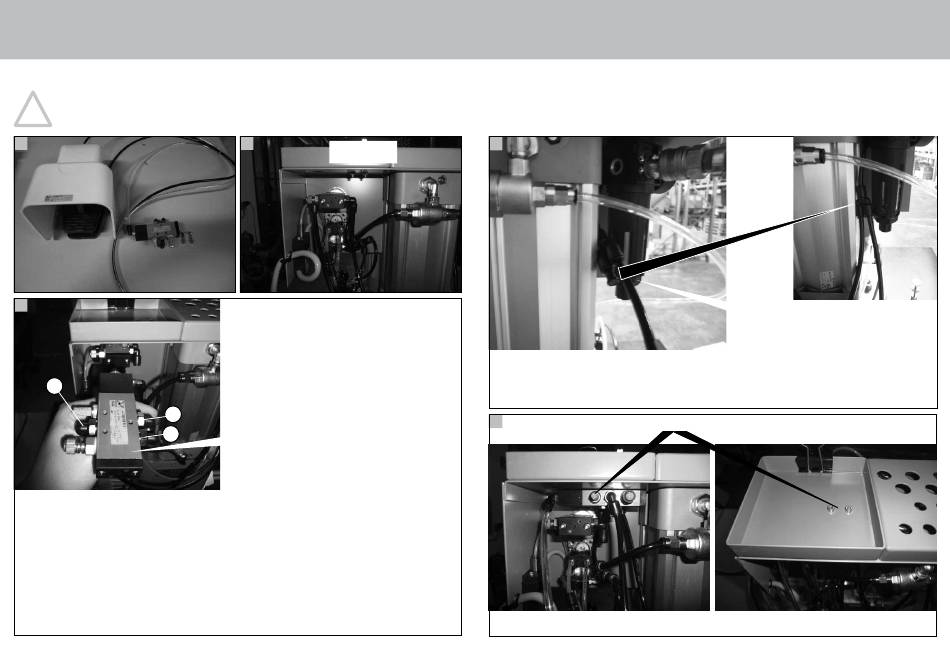

Assembly instructions
Converting from pushbutton to foot pedal
!
Before you start installing, make sure you disconnect the machine from the power supply and depressurise it!
i
1
1
4
2
Remove connection hoses from the pushbutton valve on the rear of the machine and connect them
to the foot-pedal valve provided. The three connection hoses must be fitted to the foot-pedal valve as
indicated by the numbering.
Hose from connection no.1 to connection no. 1 on the foot-pedal valve.
The connections of no. 2 and no. 4 must be exchanged in the same way.
182
i
Machine rear
See pneumatics plan on page 75 in the machine's operating manual.
Foot-pedal valve
2
Fasten foot-pedal's black hose to the unused inlet at the hose
branch
3
Using the two screws provided, screw the foot pedal valve from above to the tool shelf (caution: hoses must not kink)
Now re-set waste-air throttle (machine must take at least 6 seconds to cover 120 mm of working travel)
Remove dummy plug.
183
