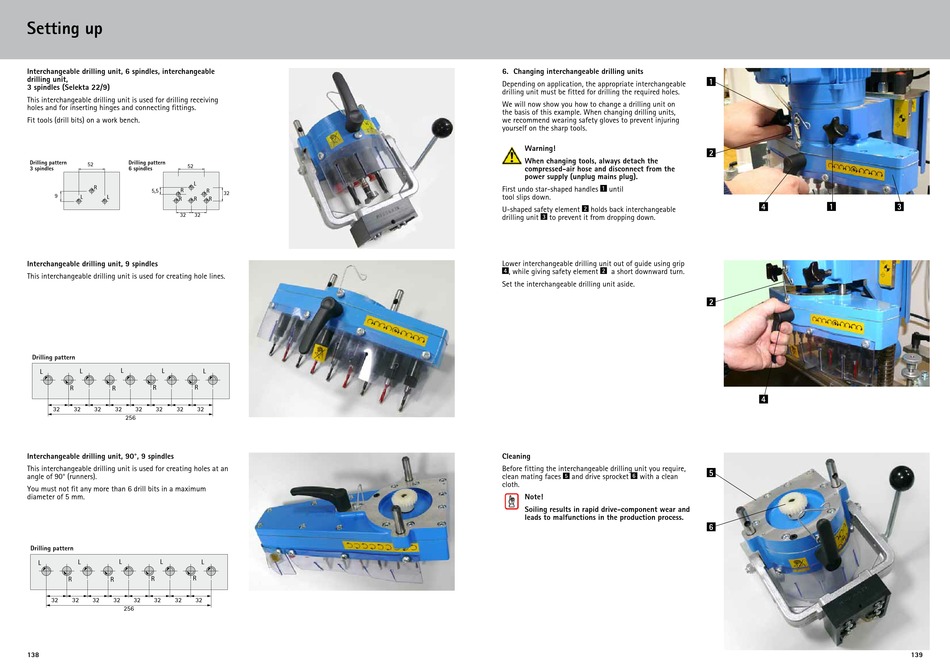

Setting up
Interchangeable drilling unit, 6 spindles, interchangeable
drilling unit,
3 spindles (Selekta 22/9)
This interchangeable drilling unit is used for drilling receiving
holes and for inserting hinges and connecting fittings.
Fit tools (drill bits) on a work bench.
Drilling pattern
Drilling pattern
52
52
3 spindles
6 spindles
L
R
R
5,5
R
9
L
L
R
R
32
32
Interchangeable drilling unit, 9 spindles
This interchangeable drilling unit is used for creating hole lines.
Drilling pattern
L
L
L
L
L
R
R
R
R
32
32
32
32
32
32
32
32
256
Interchangeable drilling unit, 90°, 9 spindles
This interchangeable drilling unit is used for creating holes at an
angle of 90° (runners).
You must not fit any more than 6 drill bits in a maximum
diameter of 5 mm.
Drilling pattern
L
L
L
L
L
R
R
R
R
32
32
32
32
32
32
32
32
256
138
32
R
6. Changing interchangeable drilling units
Depending on application, the appropriate interchangeable
drilling unit must be fitted for drilling the required holes.
We will now show you how to change a drilling unit on
the basis of this example. When changing drilling units,
we recommend wearing safety gloves to prevent injuring
yourself on the sharp tools.
Warning!
When changing tools, always detach the
compressed-air hose and disconnect from the
power supply (unplug mains plug).
First undo star-shaped handles
until
1
tool slips down.
U-shaped safety element
holds back interchangeable
2
drilling unit
to prevent it from dropping down.
3
Lower interchangeable drilling unit out of guide using grip
, while giving safety element
a short downward turn.
4
2
Set the interchangeable drilling unit aside.
Cleaning
Before fitting the interchangeable drilling unit you require,
clean mating faces
and drive sprocket
with a clean
5
6
cloth.
Note!
Soiling results in rapid drive-component wear and
leads to malfunctions in the production process.
1
2
4
1
2
4
5
6
3
139
