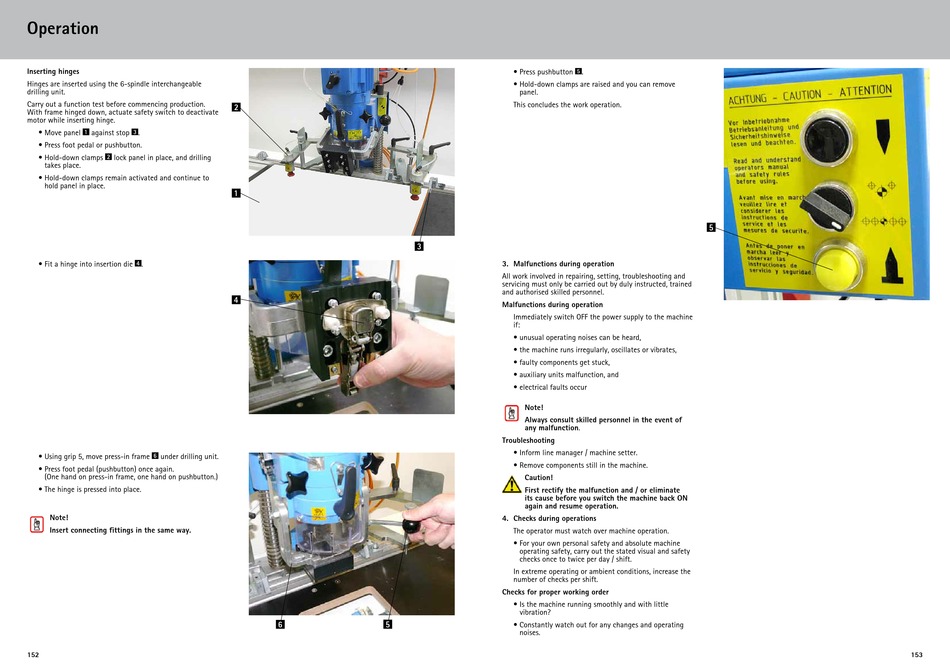

Operation

Inserting hinges

Hinges are inserted using the 6-spindle interchangeable
drilling unit.
Carry out a function test before commencing production.
With frame hinged down, actuate safety switch to deactivate
motor while inserting hinge.
• Move panel against stop .
1 3
• Press foot pedal or pushbutton.
• Hold-down clamps lock panel in place, and drilling
2
takes place.
• Hold-down clamps remain activated and continue to
hold panel in place.
• Fit a hinge into insertion die .
4
• Using grip 5, move press-in frame under drilling unit.
6
• Press foot pedal (pushbutton) once again.
(One hand on press-in frame, one hand on pushbutton.)
• The hinge is pressed into place.
Note!
Insert connecting fittings in the same way.
152
2
1
4
6 5
• Press pushbutton 5 .
• Hold-down clamps are raised and you can remove
panel.
This concludes the work operation.
3

3. Malfunctions during operation

All work involved in repairing, setting, troubleshooting and
servicing must only be carried out by duly instructed, trained
and authorised skilled personnel.
Malfunctions during operation
Immediately switch OFF the power supply to the machine
if:
• unusual operating noises can be heard,
• the machine runs irregularly, oscillates or vibrates,
• faulty components get stuck,
• auxiliary units malfunction, and
• electrical faults occur
Note!
Always consult skilled personnel in the event of
any malfunction.

Troubleshooting

• Inform line manager / machine setter.
• Remove components still in the machine.
Caution!
First rectify the malfunction and / or eliminate
its cause before you switch the machine back ON
again and resume operation.

4. Checks during operations

The operator must watch over machine operation.
• For your own personal safety and absolute machine
operating safety, carry out the stated visual and safety
checks once to twice per day / shift.
In extreme operating or ambient conditions, increase the
number of checks per shift.

Checks for proper working order

• Is the machine running smoothly and with little
vibration?
• Constantly watch out for any changes and operating
noises.
5
153
