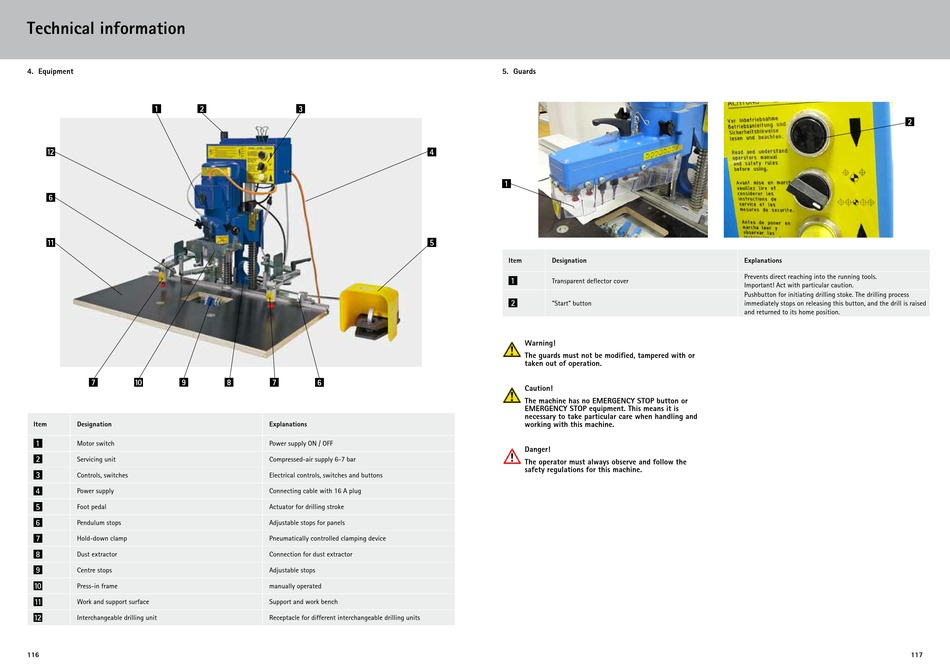

Technical information
4. Equipment
1 2
"
6
¡
7 0 9
Item Designation
1 Motor switch
2 Servicing unit
3 Controls, switches
4 Power supply
5 Foot pedal
6
Pendulum stops
7 Hold-down clamp
8 Dust extractor
9 Centre stops
0 Press-in frame
¡ Work and support surface
"
Interchangeable drilling unit
116 116
3
8 7 6
Explanations
Power supply ON / OFF
Compressed-air supply 6-7 bar
Electrical controls, switches and buttons
Connecting cable with 16 A plug
Actuator for drilling stroke
Adjustable stops for panels
Pneumatically controlled clamping device
Connection for dust extractor
Adjustable stops
manually operated
Support and work bench
Receptacle for different interchangeable drilling units
5. Guards
4
1
5
Item Designation
1 Transparent deflector cover
2 "Start" button
Warning!
The guards must not be modified, tampered with or
taken out of operation.
Caution!
The machine has no EMERGENCY STOP button or
EMERGENCY STOP equipment. This means it is
necessary to take particular care when handling and
working with this machine.
Danger!
The operator must always observe and follow the
safety regulations for this machine.
2
Explanations
Prevents direct reaching into the running tools.
Important! Act with particular caution.
Pushbutton for initiating drilling stoke. The drilling process
immediately stops on releasing this button, and the drill is raised
and returned to its home position.
