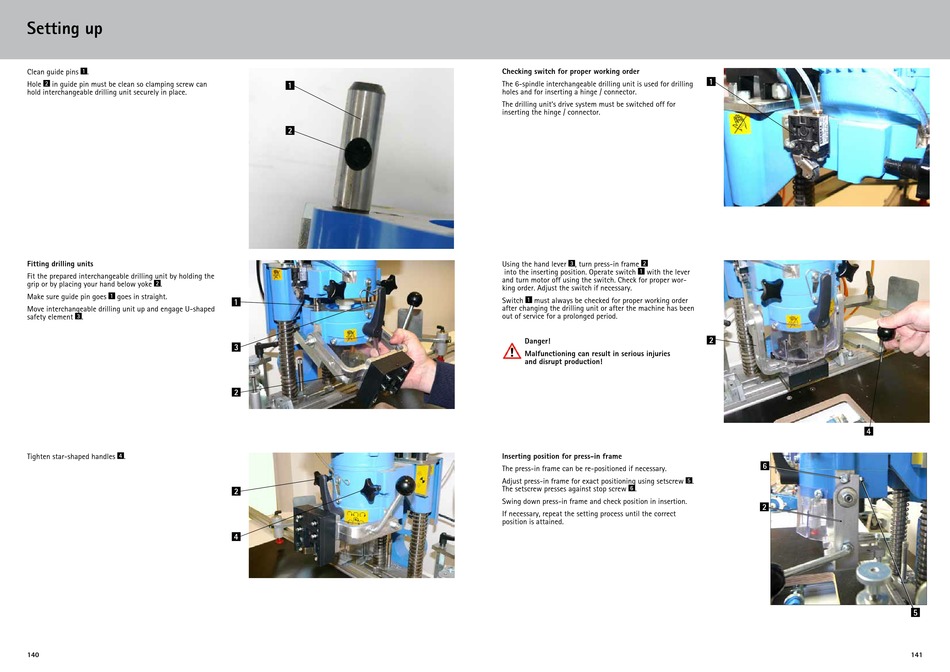

Setting up
Clean guide pins 1 .
Hole in guide pin must be clean so clamping screw can
2
hold interchangeable drilling unit securely in place.

Fitting drilling units

Fit the prepared interchangeable drilling unit by holding the
grip or by placing your hand below yoke .
2
Make sure guide pin goes goes in straight.
1
Move interchangeable drilling unit up and engage U-shaped
safety element 3 .
Tighten star-shaped handles .
4
140
1
2
1
3
2
2
4

Checking switch for proper working order

The 6-spindle interchangeable drilling unit is used for drilling
holes and for inserting a hinge / connector.
The drilling unit's drive system must be switched off for
inserting the hinge / connector.
Using the hand lever , turn press-in frame
3 2
into the inserting position. Operate switch 1 with the lever
and turn motor off using the switch. Check for proper wor-
king order. Adjust the switch if necessary.
Switch must always be checked for proper working order
1
after changing the drilling unit or after the machine has been
out of service for a prolonged period.
Danger!
Malfunctioning can result in serious injuries
and disrupt production!

Inserting position for press-in frame

The press-in frame can be re-positioned if necessary.
Adjust press-in frame for exact positioning using setscrew
The setscrew presses against stop screw 6 .
Swing down press-in frame and check position in insertion.
If necessary, repeat the setting process until the correct
position is attained.
1
2
4
6
5 .
2
5
