Start-up / trial run

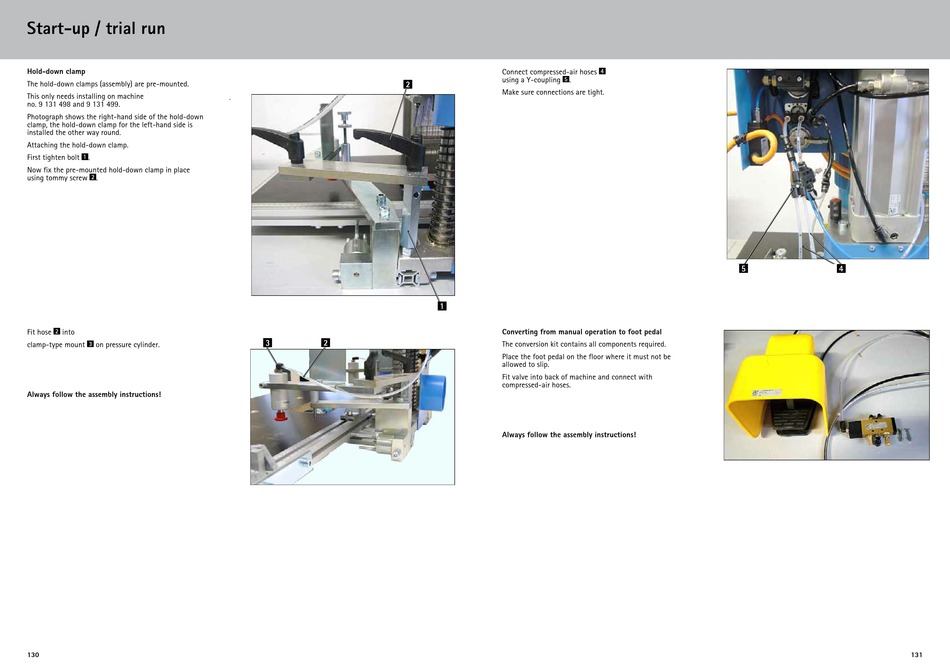

Hold-down clamp

The hold-down clamps (assembly) are pre-mounted.
This only needs installing on machine
no. 9 131 498 and 9 131 499.
Photograph shows the right-hand side of the hold-down
clamp, the hold-down clamp for the left-hand side is
installed the other way round.
Attaching the hold-down clamp.
First tighten bolt .
1
Now fix the pre-mounted hold-down clamp in place
using tommy screw
2 .
Fit hose 2 into
clamp-type mount on pressure cylinder.
3
Always follow the assembly instructions!
130
2
1
3 2
Connect compressed-air hoses 4
using a Y-coupling .
5
Make sure connections are tight.

Converting from manual operation to foot pedal

The conversion kit contains all components required.
Place the foot pedal on the floor where it must not be
allowed to slip.
Fit valve into back of machine and connect with
compressed-air hoses.
Always follow the assembly instructions!
5 4
131
