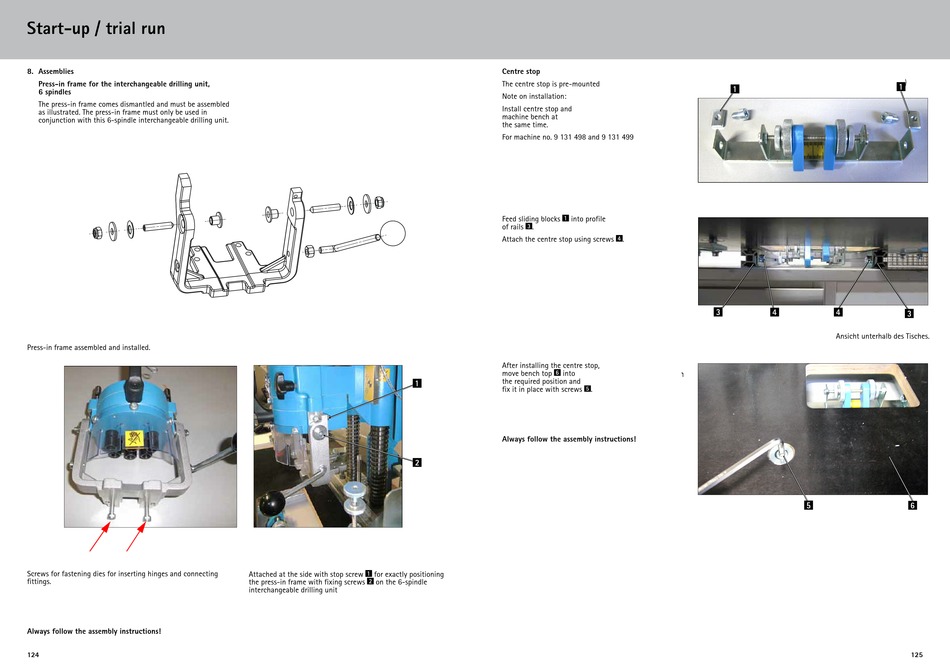

Start-up / trial run
8. Assemblies
Press-in frame for the interchangeable drilling unit,
6 spindles
The press-in frame comes dismantled and must be assembled
as illustrated. The press-in frame must only be used in
conjunction with this 6-spindle interchangeable drilling unit.
Press-in frame assembled and installed.
Screws for fastening dies for inserting hinges and connecting
fittings.
Always follow the assembly instructions!
124
1
2
Attached at the side with stop screw 1 for exactly positioning
the press-in frame with fixing screws 2 on the 6-spindle
interchangeable drilling unit

Centre stop

The centre stop is pre-mounted
Note on installation:
Install centre stop and
machine bench at
the same time.
For machine no. 9 131 498 and 9 131 499
Feed sliding blocks 1 into profile
of rails .
3
Attach the centre stop using screws .
4
After installing the centre stop,
move bench top into
6
the required position and
fix it in place with screws .
5
Always follow the assembly instructions!
1
3 4 4
Ansicht unterhalb des Tisches.
5
1
3
6
125
