Setting up

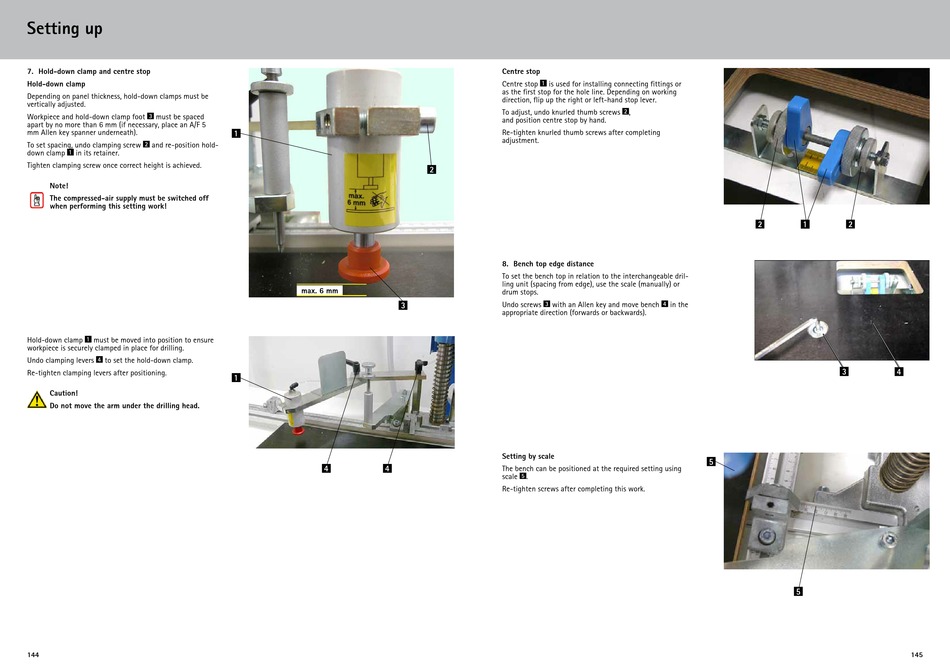

7. Hold-down clamp and centre stop

Hold-down clamp

Depending on panel thickness, hold-down clamps must be
vertically adjusted.
Workpiece and hold-down clamp foot must be spaced
3
apart by no more than 6 mm (if necessary, place an A/F 5
mm Allen key spanner underneath).
To set spacing, undo clamping screw 2 and re-position hold-
down clamp 1 in its retainer.
Tighten clamping screw once correct height is achieved.
Note!
The compressed-air supply must be switched off
when performing this setting work!

Hold-down clamp

1 must be moved into position to ensure
workpiece is securely clamped in place for drilling.
Undo clamping levers to set the hold-down clamp.
4
Re-tighten clamping levers after positioning.
Caution!
Do not move the arm under the drilling head.
144
1
max. 6 mm
3
1
4 4

Centre stop

Centre stop 1 is used for installing connecting fittings or
as the first stop for the hole line. Depending on working
direction, flip up the right or left-hand stop lever.
To adjust, undo knurled thumb screws
and position centre stop by hand.
Re-tighten knurled thumb screws after completing
adjustment.
2

8. Bench top edge distance

To set the bench top in relation to the interchangeable dril-
ling unit (spacing from edge), use the scale (manually) or
drum stops.
Undo screws with an Allen key and move bench
3
appropriate direction (forwards or backwards).
Setting by scale
The bench can be positioned at the required setting using
scale .
5
Re-tighten screws after completing this work.
,
2
2 1
in the
4
5
5
2
3 4
145
