MT Focus 400
NOTE
The torque measuring function in the controller is sensitive to strong magnetic
fields. Do not place magnetic items, for example bits, on or near the controller.

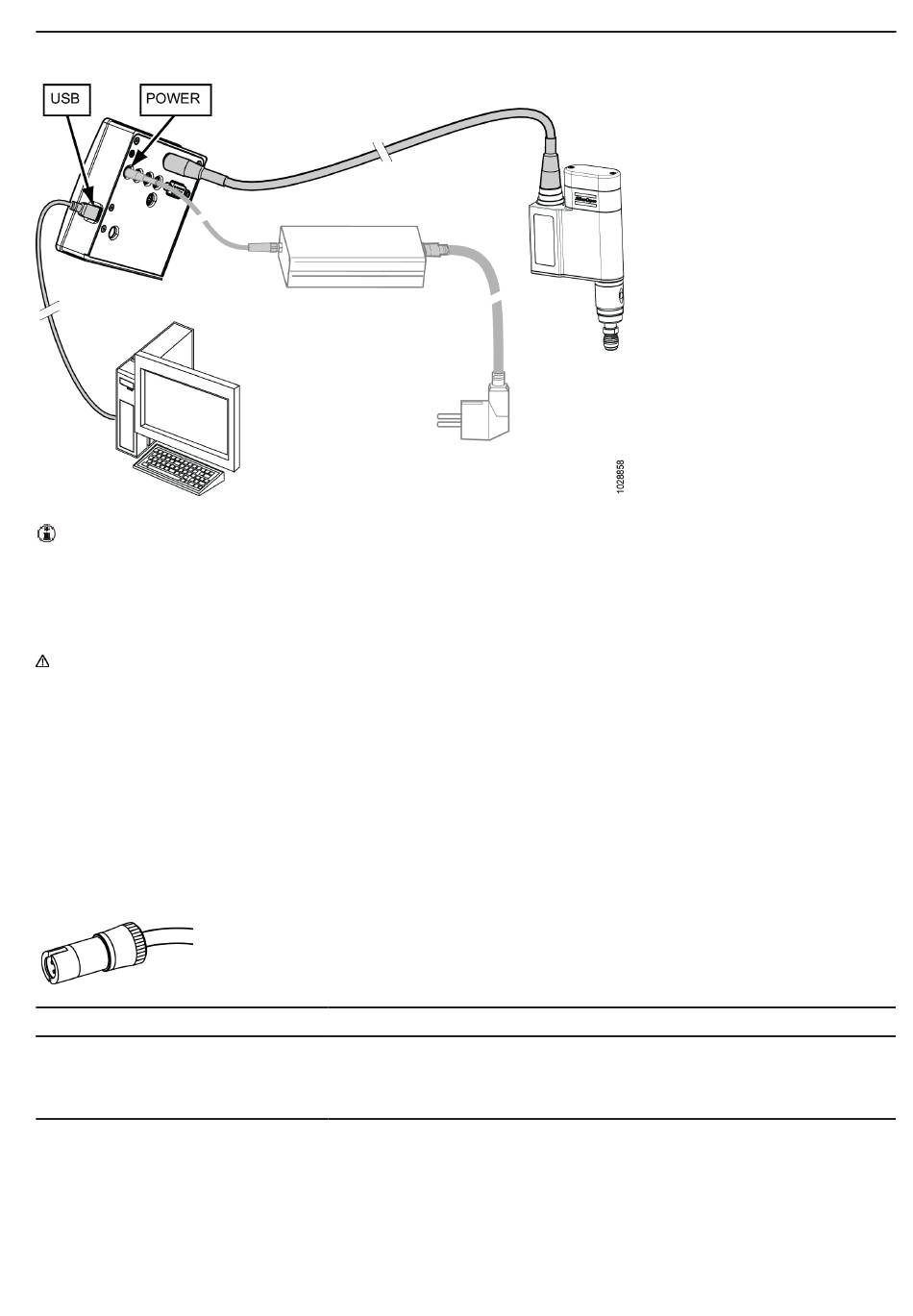

Connecting accessories
CAUTION
• The internal 24 V supply can be loaded with max 700 mA. If the sum of all
loads tend to exceed this value - use an external +24 V source.
Serial interface (RS232-C)
3-pole socket connector for the serial interface.
COM port settings: 115200 Baud, 8 Data bits, 1 Stop bit, No parity, No hand-
shake.
Use a 3-pole pin plug from the Binder 719 Series.
Pin
1
2
3
Vacuum pump output (VP)
5-pole socket connector for the connection of Atlas Copco Vacuum pump
VPX6 (24 V, 600 mA).
EN
Signal
TxD
GND
RxD
© Atlas Copco Industrial Technique AB - 9836 629400 00
Product Instructions
Description
Transmitted data
Data ground
Received data
7
