Installation
Chose a safe place for the installation of the system.
Install the system according to the following instructions.
Basic set-up
NOTICE Always disconnect the USB connector before connecting or discon-
necting the power supply plug.
NOTE
Each controller is programmed to operate together with a certain tool, i.e. it is
not possible to use one tool with multiple controllers. If the tool is to be ex-
changed, it must be set-up and calibrated together with the controller.
Some functions in the controller, such as the built-in clock, are powered by a
built-in battery. The charging time is 5 hours and the function is maintained for
100 days if not recharged.

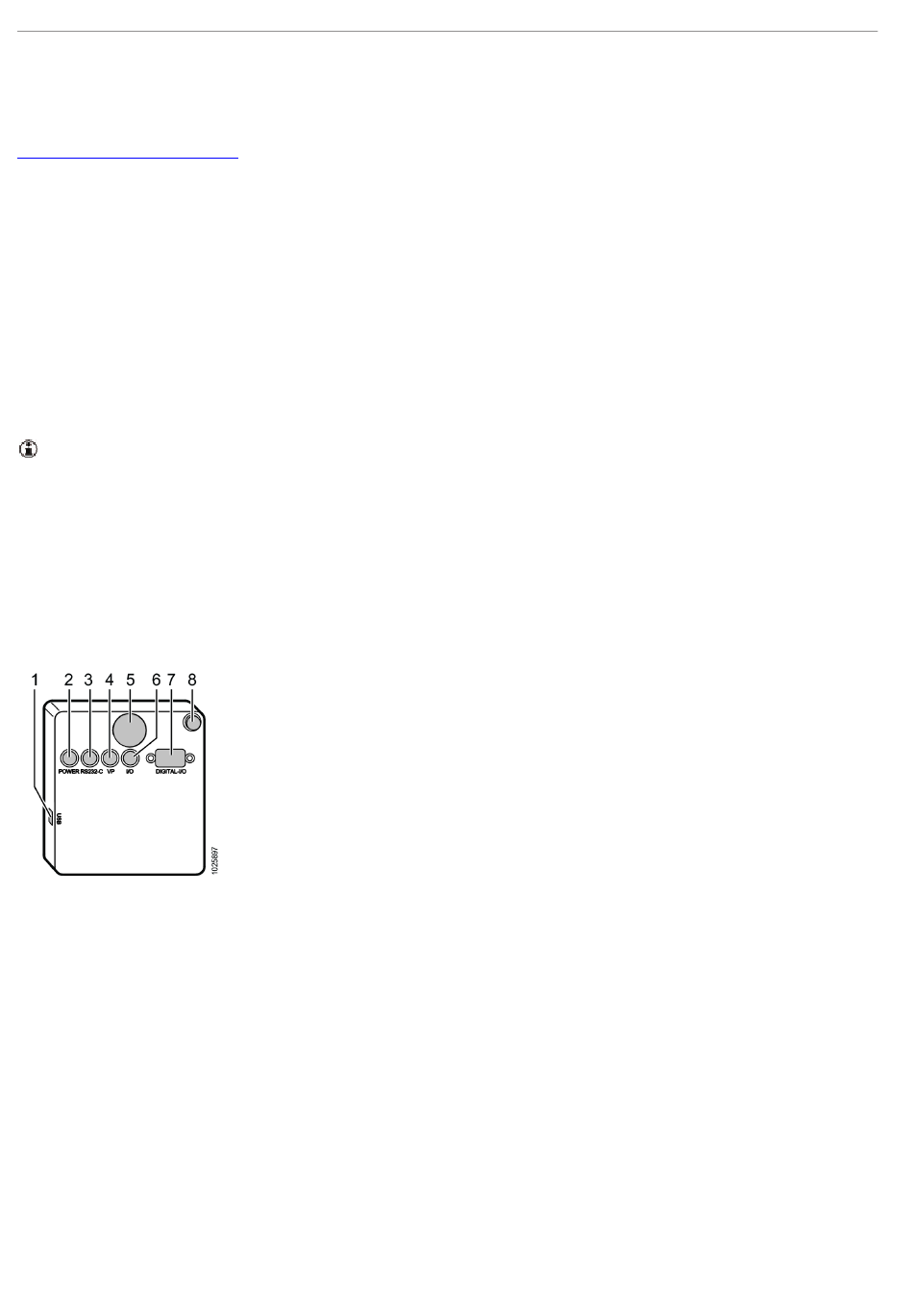

Controller connectors
1. USB: PC, connected with a USB cable.
POWER: Power supply connection.
2.
RS232-C: Serial interface, for various accessories.
3.
4. VP: Vacuum pump connection.
Tool, connected with the tool cable.
5.
I/O: Single digital input for special purpose.
6.
7. DIGITAL I/O: Connection for various accessories.
Connection for ESD protective wrist strap
8.
