Service instructions

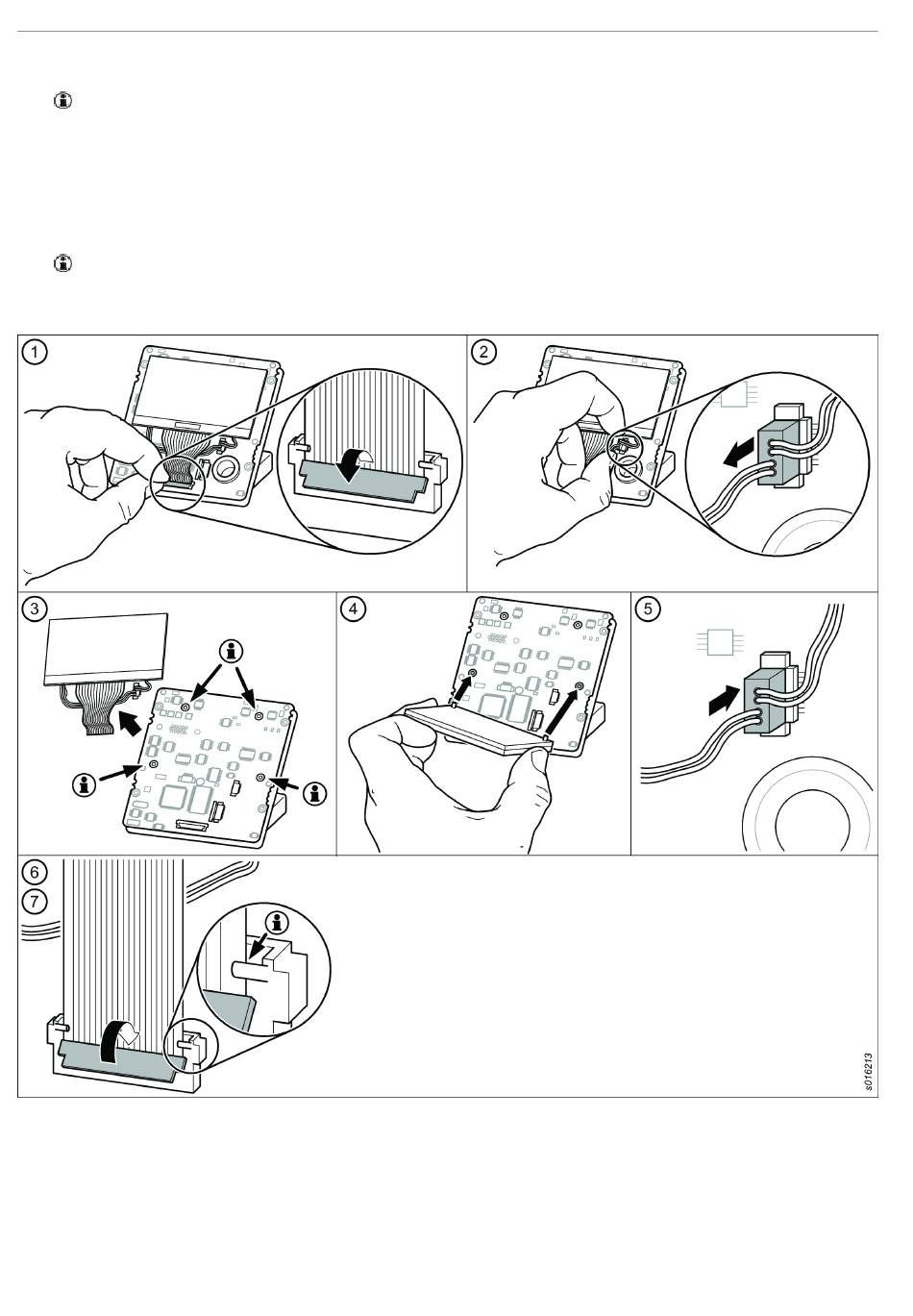

3. Remove the display.
Do not loose the spacers.
4. Make sure the four spacers are correctly positioned and put the new display
in position. The small pins at the bottom of the display should rest in the
holes of the bottom spacers.
5. Connect the white connector.
6. Insert the flat cable into the connector.
Make sure the cable runs under the small tabs at each side of the con-
nector
7. Close the connector by turning the movable part back inte position.
