MT Focus 400
Service required
Time exceeded
Time not reached
Torque exceeded
Torque not reached
Total torque too low
Unscrew

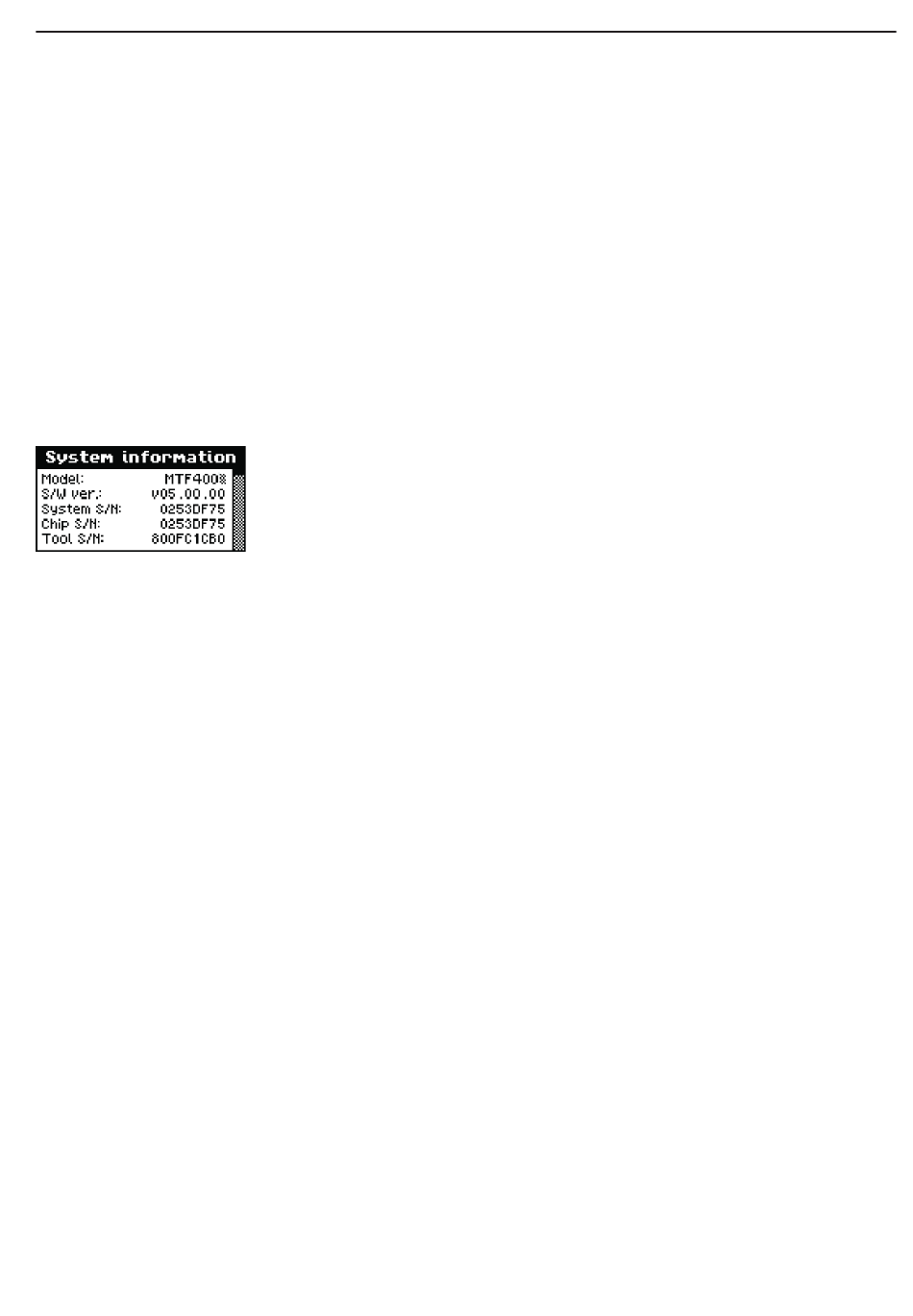

Controller system information
To view the information:
1. Press either the UP or the DOWN button.
2. Select System information in the menu.
3. Press OK.
4. Scroll through the information, using the UP and DOWN buttons.
• Model: The controller model.
• S/W ver: The controller software version.
• Bootloader ver.: The bootloader software version.
• System S/N: The controller serial number.
• Chip S/N: The controller usb-chip serial number.
• Tool S/N: The tool serial number.
• Tool type: The tool type.
• Tool temp: The current temperature in the tool.
• Tool A/D: The sampled current value from the tool A/D converter.
• Tool S/W: The tool software version.
• Friction: The internal friction in the tool.
• No. tightenings: The total number of tool cycles, including unscrew
and Not OK tightenings.
• Supply Voltage: The controller supply voltage.
5. Press OK when done.
EN
Service reminder, the time since last calibration has
elapsed or the set number of tightenings since last cal-
ibration has been performed.
The defined Max. time for the step has been ex-
ceeded.
The defined Min. time for the step has not been
reached.
The defined Max. torque for the step has been ex-
ceeded.
The defined Min. torque for the step has not been
reached.
Total step torque is lower than Min. allowed torque.
Unscrew process active.
© Atlas Copco Industrial Technique AB - 9836 629400 00
