MT Focus 400

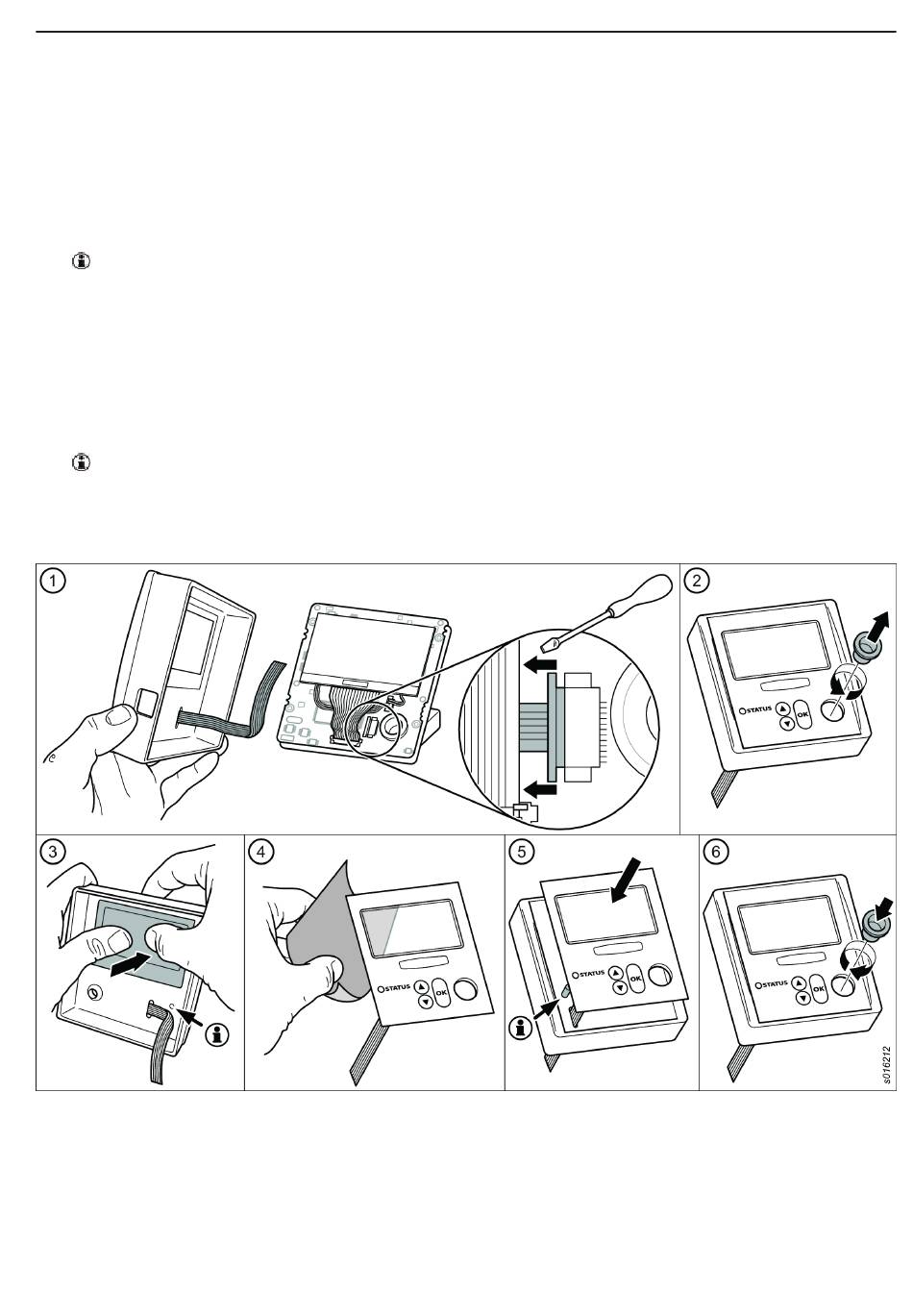

Changing the front panel
1. Open the connector using a small screwdriver and carefully pull out the flat
cable.
2. Unscrew the tool holder.
3. • Peel off the front panel. You can press from the inside on the display
window.
• Clean the inside surface of the cover with spirit.
Do not loose the light pipe.
4. Peel off the protection covers from the self-adhesive panel.
• One cover protecting the self-adhesive sections.
• One cover protecting the inside of the transparent window.
• One cover protecting the outside of the transparent window.
5. Route the flat cable from the new front panel through the hole in the hous-
ing, attach the new front panel to the housing.
Make sure the light pipe is correctly positioned.
6. Mount the tool holder.
7. Insert the flat cable into the connector, and close the connector by pressing
in the movable part using a small screwdriver.
Changing the display
1. Open the connector by folding the movable part up and forward, and care-
fully pull out the flat cable.
2. Disconnect the white connector by pulling straight up.
