TRWinProg Parameterization

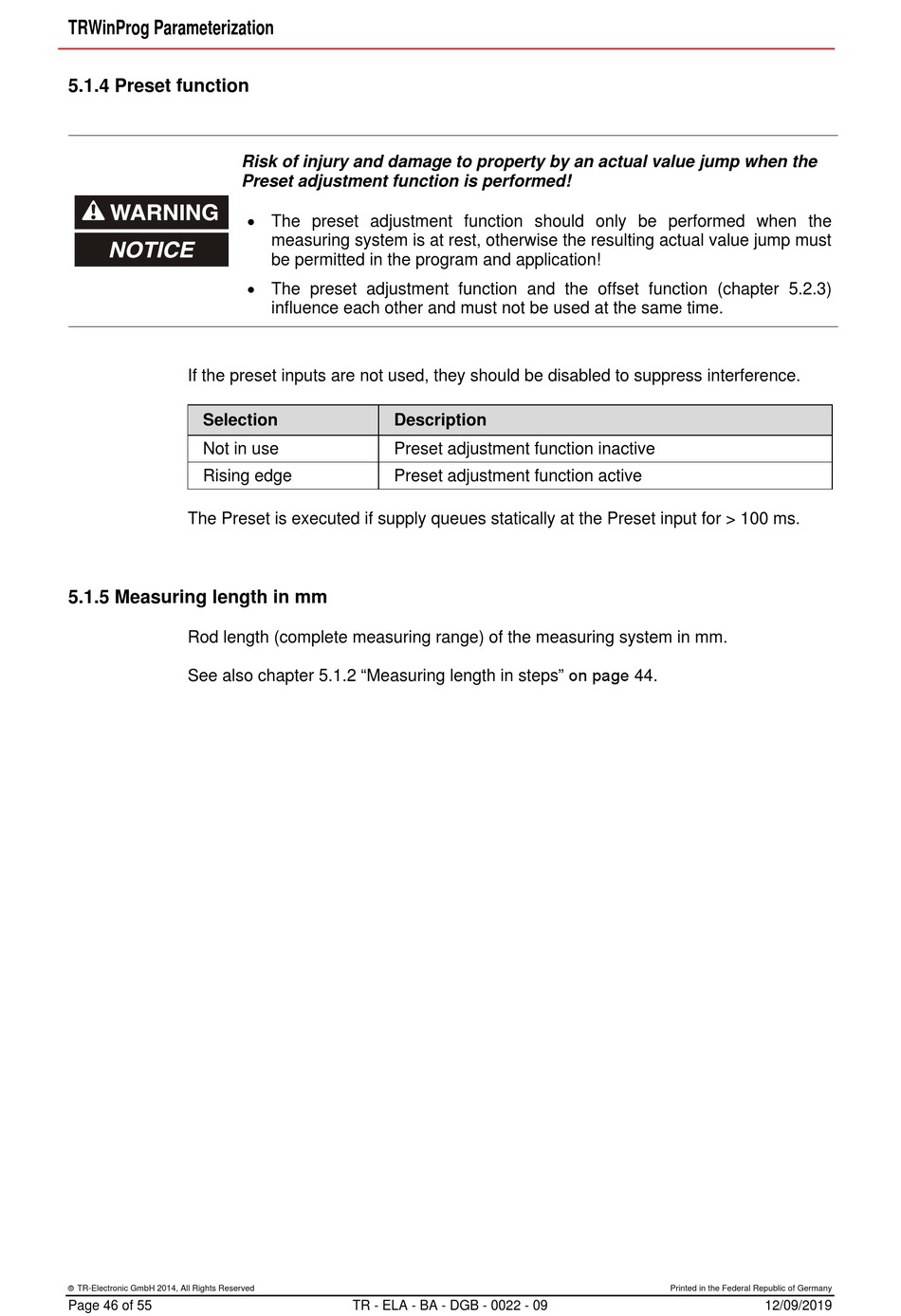

5.1.4 Preset function

If the preset inputs are not used, they should be disabled to suppress interference.
Selection
Not in use
Rising edge
The Preset is executed if supply queues statically at the Preset input for > 100 ms.

5.1.5 Measuring length in mm

Rod length (complete measuring range) of the measuring system in mm.
See also chapter 5.1.2 "Measuring length in steps" on page 44.
 TR-Electronic GmbH 2014, All Rights Reserved
Page 46 of 55
Risk of injury and damage to property by an actual value jump when the
Preset adjustment function is performed!
 The preset adjustment function should only be performed when the
measuring system is at rest, otherwise the resulting actual value jump must
be permitted in the program and application!
 The preset adjustment function and the offset function (chapter 5.2.3)
influence each other and must not be used at the same time.
Description
Preset adjustment function inactive
Preset adjustment function active
