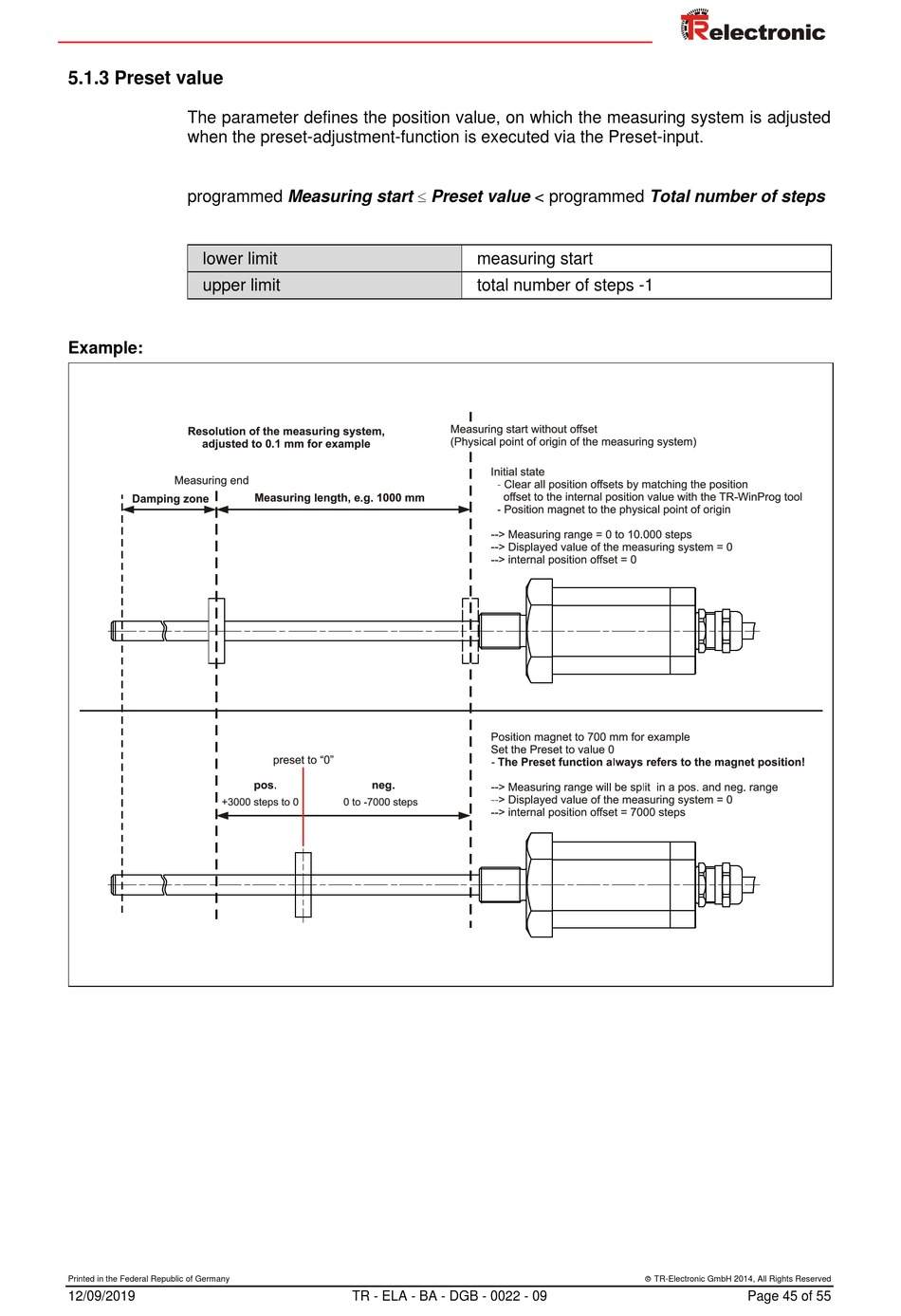

5.1.3 Preset value

The parameter defines the position value, on which the measuring system is adjusted
when the preset-adjustment-function is executed via the Preset-input.
programmed Measuring start  Preset value < programmed Total number of steps
lower limit
upper limit
Example:
Printed in the Federal Republic of Germany
12/09/2019
measuring start
total number of steps -1
