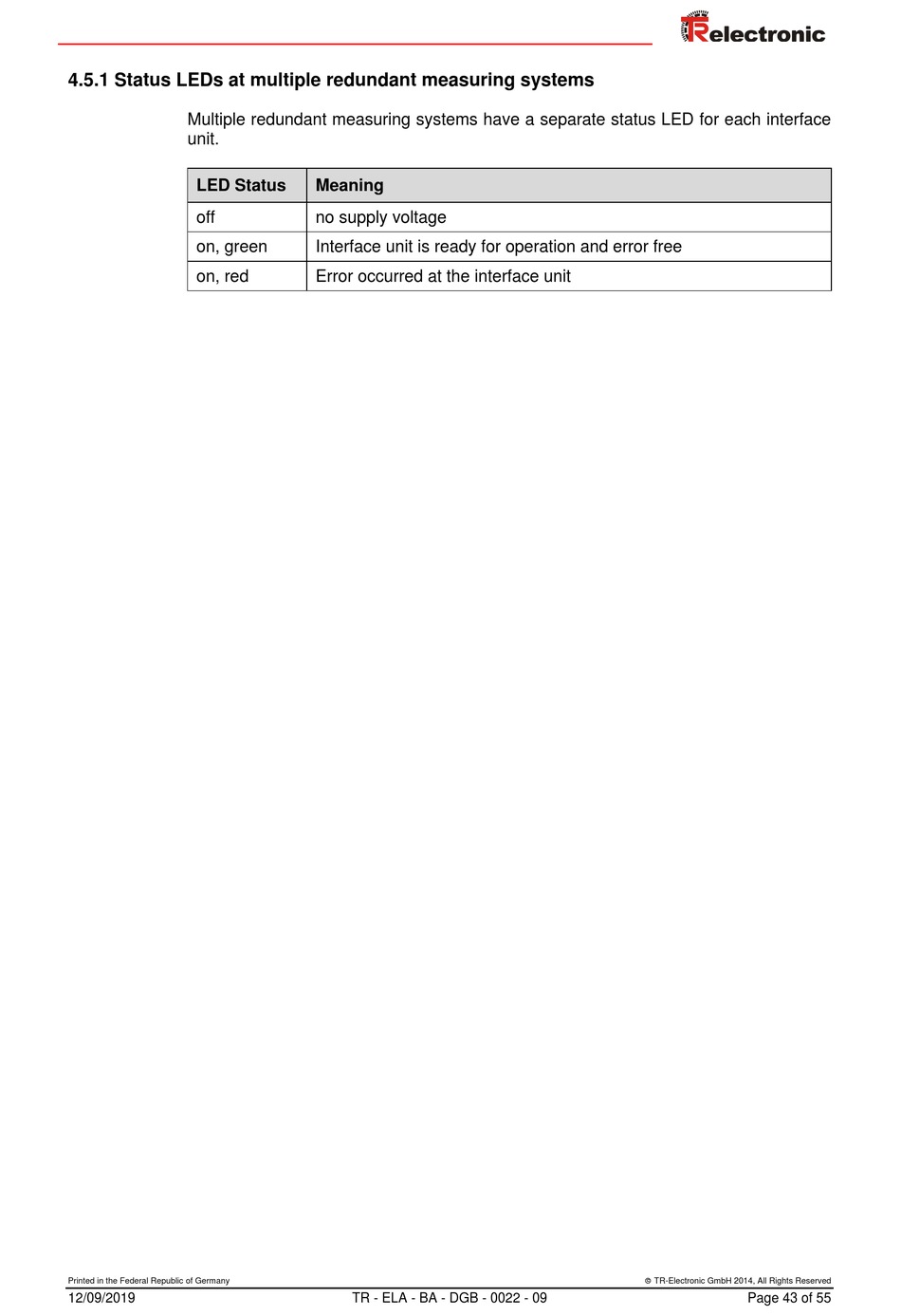

4.5.1 Status LEDs at multiple redundant measuring systems

Multiple redundant measuring systems have a separate status LED for each interface
unit.
LED Status
off
on, green
on, red
Printed in the Federal Republic of Germany
12/09/2019
Meaning
no supply voltage
Interface unit is ready for operation and error free
Error occurred at the interface unit
