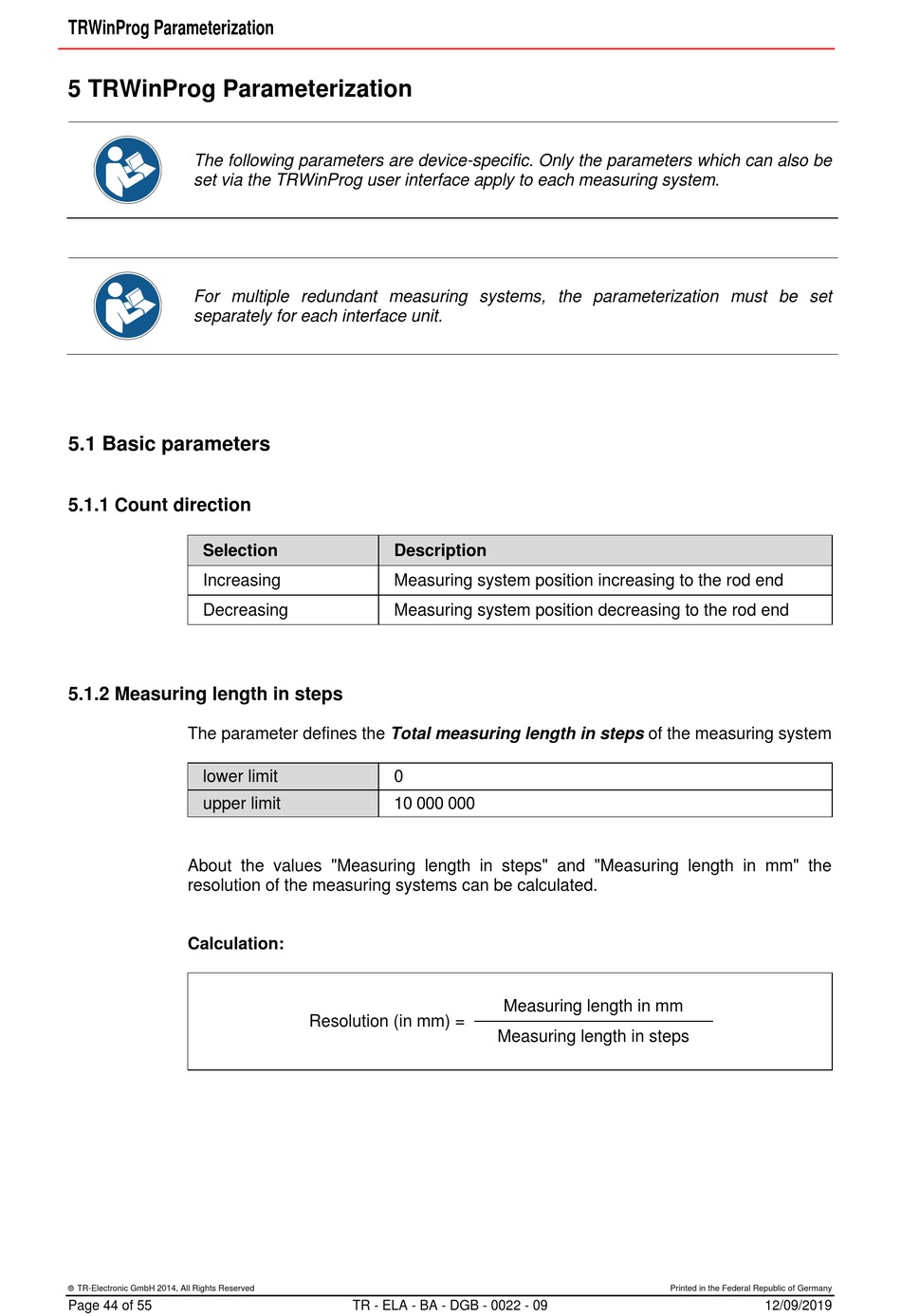

TRWinProg Parameterization
5 TRWinProg Parameterization
The following parameters are device-specific. Only the parameters which can also be
set via the TRWinProg user interface apply to each measuring system.
For multiple redundant measuring systems, the parameterization must be set
separately for each interface unit.
5.1 Basic parameters
5.1.1 Count direction
Selection
Increasing
Decreasing
5.1.2 Measuring length in steps
The parameter defines the Total measuring length in steps of the measuring system
lower limit
upper limit
About the values "Measuring length in steps" and "Measuring length in mm" the
resolution of the measuring systems can be calculated.
Calculation:
TR-Electronic GmbH 2014, All Rights Reserved
Page 44 of 55
Description
Measuring system position increasing to the rod end
Measuring system position decreasing to the rod end
0
10 000 000
Resolution (in mm) =
TR - ELA - BA - DGB - 0022 - 09
Measuring length in mm
Measuring length in steps
Printed in the Federal Republic of Germany
12/09/2019
