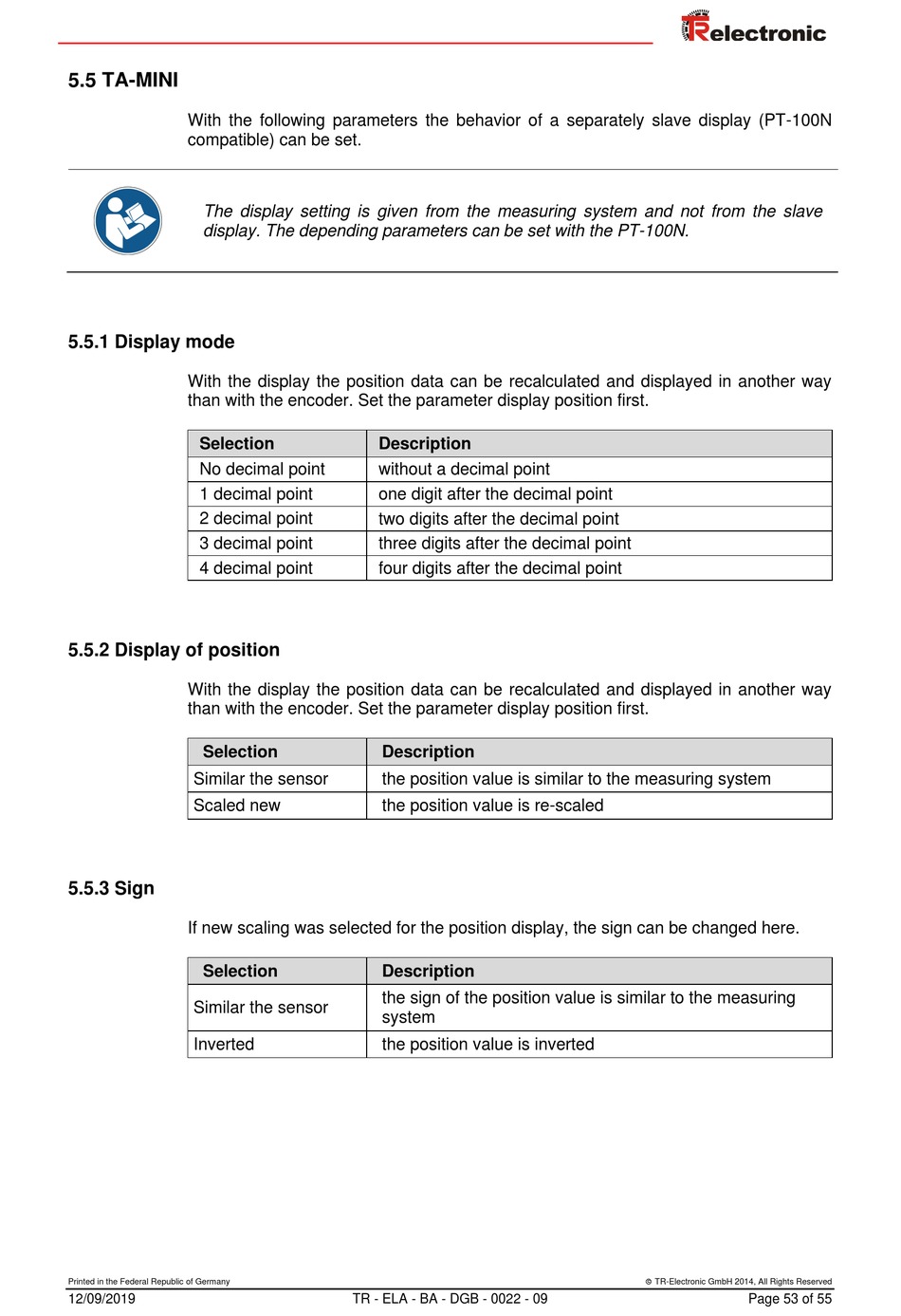

5.5 TA-MINI

With the following parameters the behavior of a separately slave display (PT-100N
compatible) can be set.
The display setting is given from the measuring system and not from the slave
display. The depending parameters can be set with the PT-100N.

5.5.1 Display mode

With the display the position data can be recalculated and displayed in another way
than with the encoder. Set the parameter display position first.
Selection
No decimal point
1 decimal point
2 decimal point
3 decimal point
4 decimal point

5.5.2 Display of position

With the display the position data can be recalculated and displayed in another way
than with the encoder. Set the parameter display position first.
Selection
Similar the sensor
Scaled new

5.5.3 Sign

If new scaling was selected for the position display, the sign can be changed here.
Selection
Similar the sensor
Inverted
Printed in the Federal Republic of Germany
12/09/2019
Description
without a decimal point
one digit after the decimal point
two digits after the decimal point
three digits after the decimal point
four digits after the decimal point
Description
the position value is similar to the measuring system
the position value is re-scaled
Description
the sign of the position value is similar to the measuring
system
the position value is inverted
