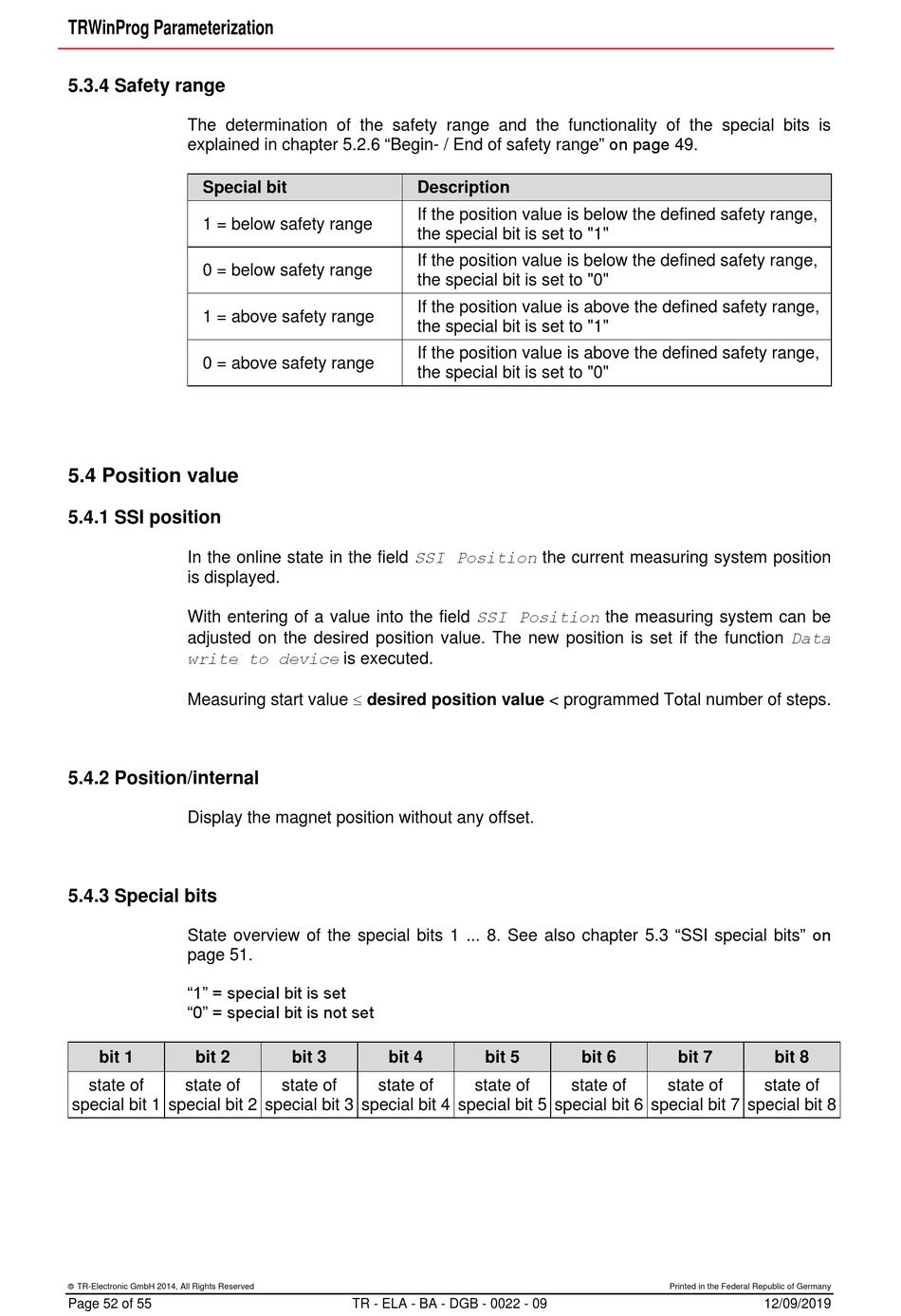

TRWinProg Parameterization
5.3.4 Safety range
The determination of the safety range and the functionality of the special bits is
explained in chapter 5.2.6 "Begin- / End of safety range" on page 49.
Special bit
1 = below safety range
0 = below safety range
1 = above safety range
0 = above safety range
5.4 Position value
5.4.1 SSI position
In the online state in the field SSI Position the current measuring system position
is displayed.
With entering of a value into the field SSI Position the measuring system can be
adjusted on the desired position value. The new position is set if the function Data
write to device is executed.
Measuring start value desired position value < programmed Total number of steps.
5.4.2 Position/internal
Display the magnet position without any offset.
5.4.3 Special bits
State overview of the special bits 1 ... 8. See also chapter 5.3 "SSI special bits" on
page 51.
"1" = special bit is set
"0" = special bit is not set
bit 1
bit 2
state of
state of
special bit 1
special bit 2
TR-Electronic GmbH 2014, All Rights Reserved
Page 52 of 55
Description
If the position value is below the defined safety range,
the special bit is set to "1"
If the position value is below the defined safety range,
the special bit is set to "0"
If the position value is above the defined safety range,
the special bit is set to "1"
If the position value is above the defined safety range,
the special bit is set to "0"
bit 3
bit 4
state of
state of
special bit 3
special bit 4
TR - ELA - BA - DGB - 0022 - 09
bit 5
bit 6
state of
state of
special bit 5
special bit 6
bit 7
bit 8
state of
state of
special bit 7
special bit 8
Printed in the Federal Republic of Germany
12/09/2019
