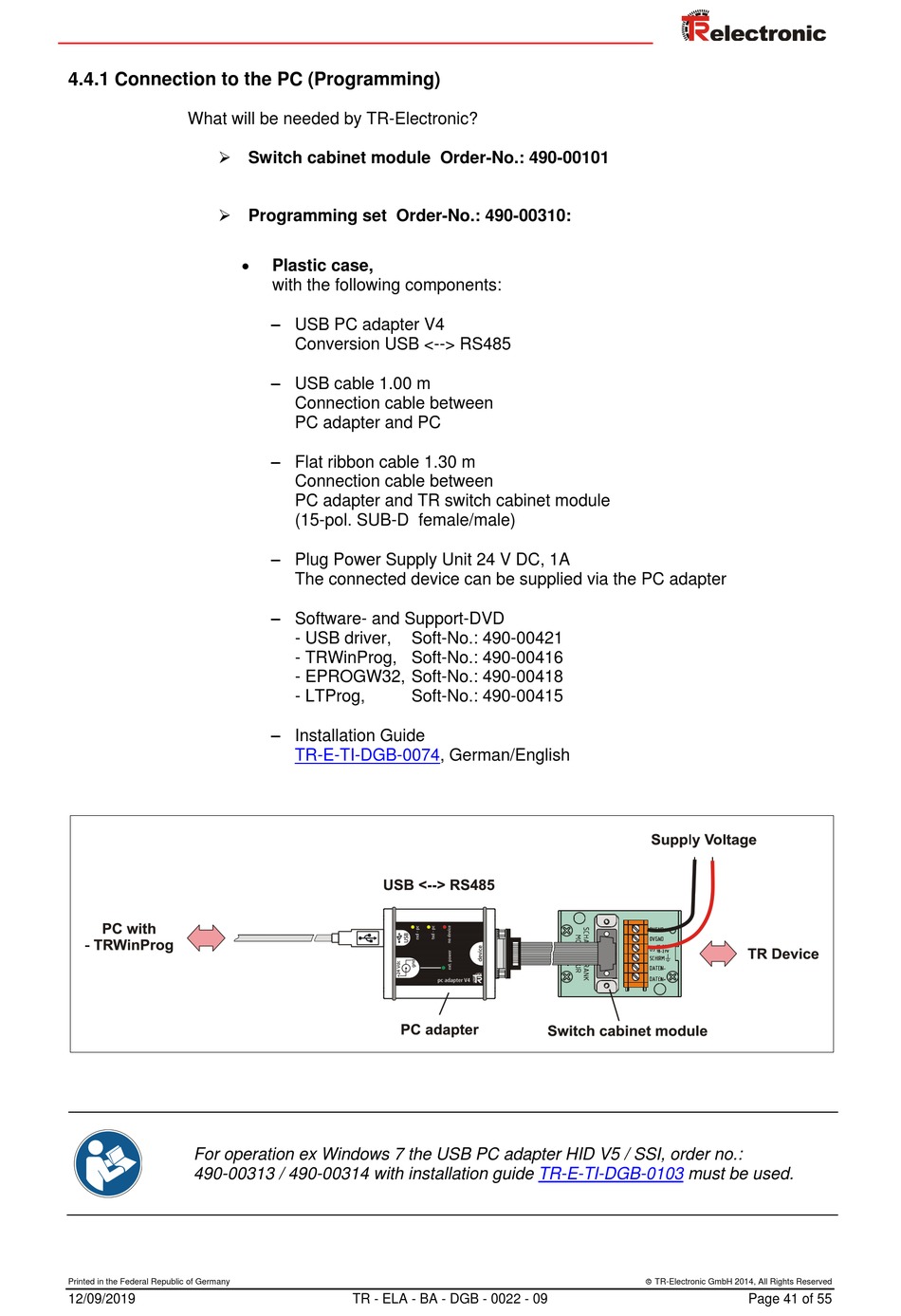

4.4.1 Connection to the PC (Programming)

What will be needed by TR-Electronic?
 Switch cabinet module Order-No.: 490-00101
 Programming set Order-No.: 490-00310:
For operation ex Windows 7 the USB PC adapter HID V5 / SSI, order no.:
490-00313 / 490-00314 with installation guide
Printed in the Federal Republic of Germany
12/09/2019

Plastic case,
with the following components:
– USB PC adapter V4
Conversion USB <--> RS485
– USB cable 1.00 m
Connection cable between
PC adapter and PC
– Flat ribbon cable 1.30 m
Connection cable between
PC adapter and TR switch cabinet module
(15-pol. SUB-D female/male)
– Plug Power Supply Unit 24 V DC, 1A
The connected device can be supplied via the PC adapter
– Software- and Support-DVD
- USB driver, Soft-No.: 490-00421
- TRWinProg, Soft-No.: 490-00416
- EPROGW32, Soft-No.: 490-00418
- LTProg, Soft-No.: 490-00415
– Installation Guide
TR-E-TI-DGB-0074, German/English
TR - ELA - BA - DGB - 0022 - 09
TR-E-TI-DGB-0103 must be used.
