TRWinProg Parameterization

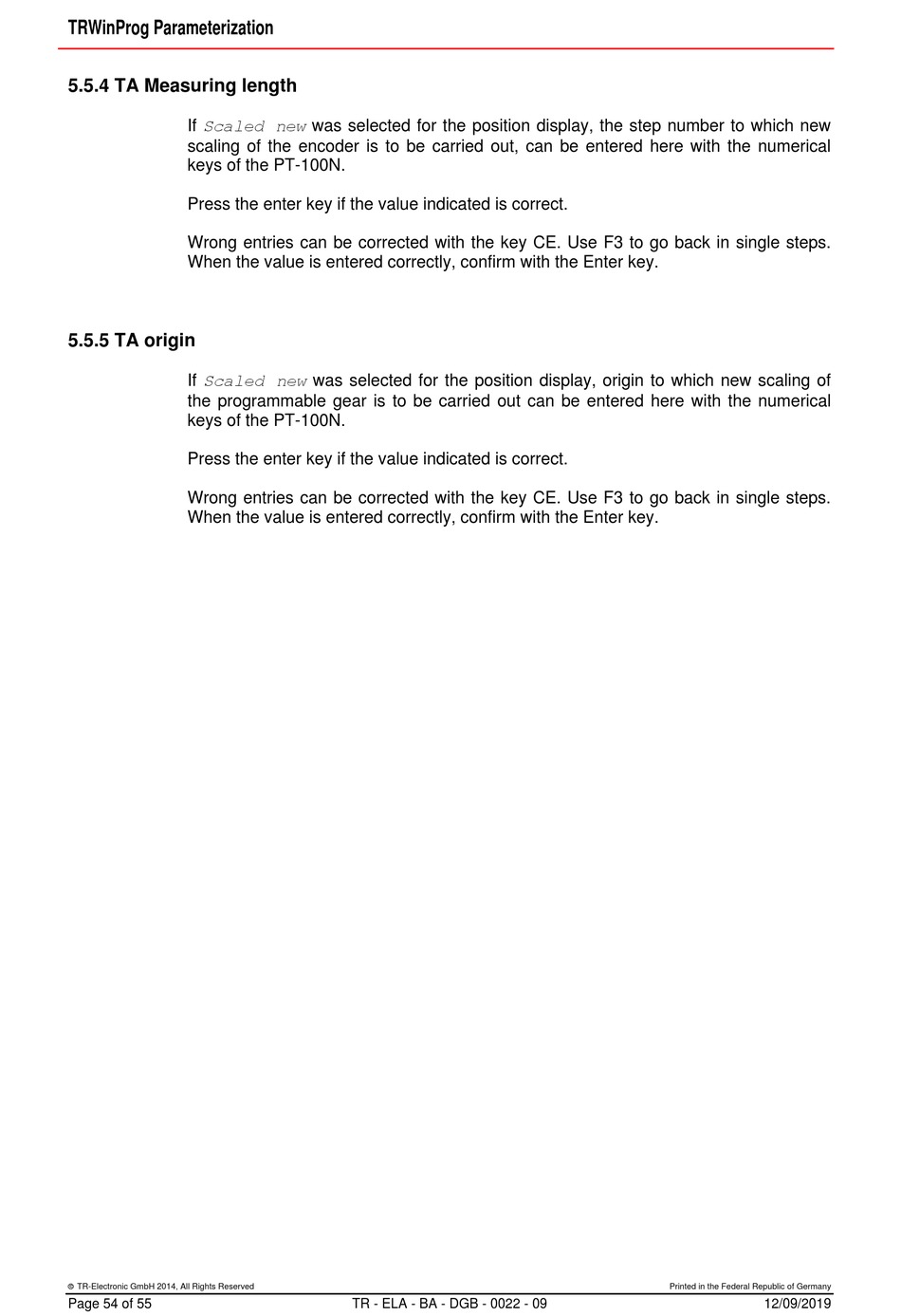

5.5.4 TA Measuring length

If Scaled new was selected for the position display, the step number to which new
scaling of the encoder is to be carried out, can be entered here with the numerical
keys of the PT-100N.
Press the enter key if the value indicated is correct.
Wrong entries can be corrected with the key CE. Use F3 to go back in single steps.
When the value is entered correctly, confirm with the Enter key.

5.5.5 TA origin

If Scaled new was selected for the position display, origin to which new scaling of
the programmable gear is to be carried out can be entered here with the numerical
keys of the PT-100N.
Press the enter key if the value indicated is correct.
Wrong entries can be corrected with the key CE. Use F3 to go back in single steps.
When the value is entered correctly, confirm with the Enter key.
