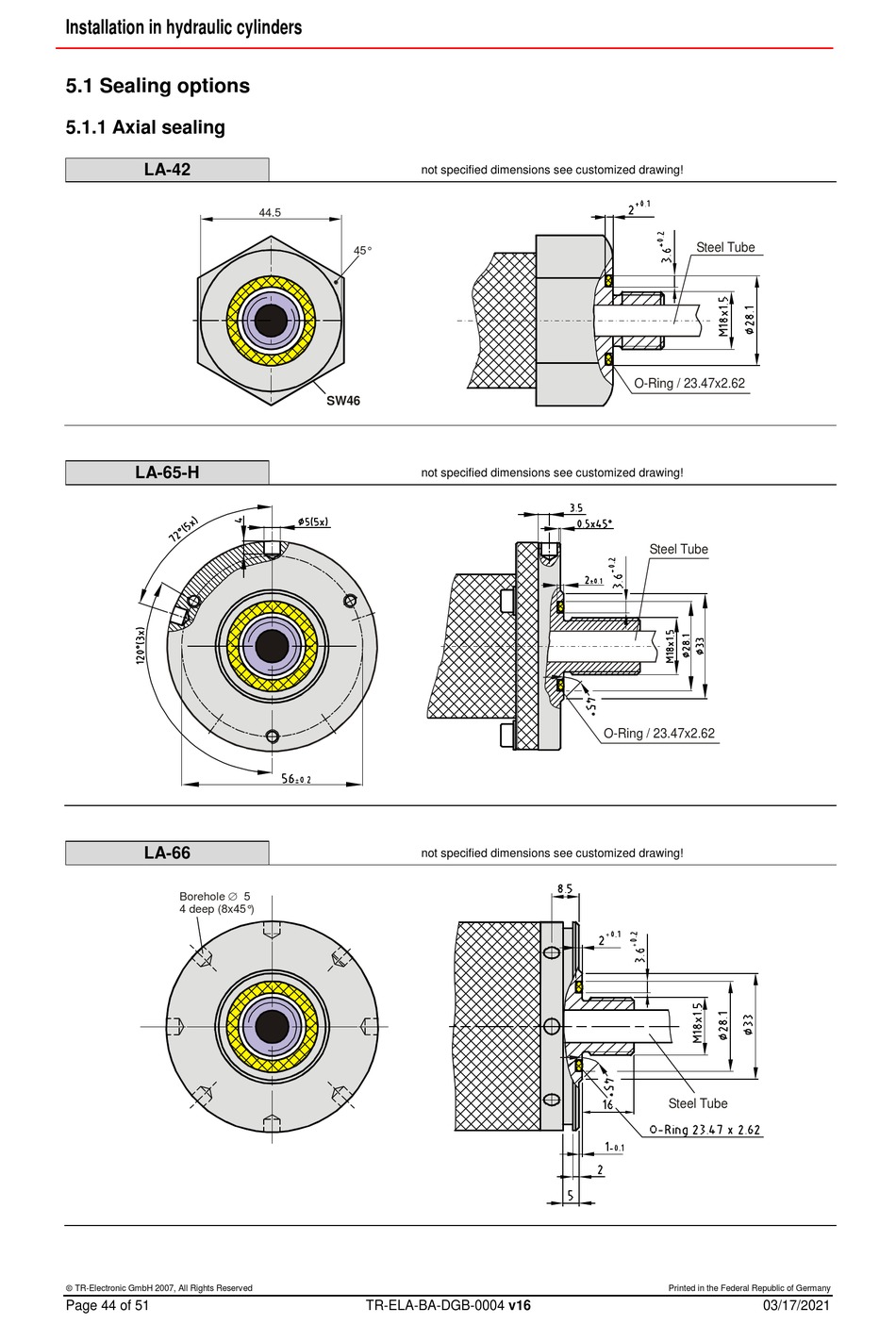

Installation in hydraulic cylinders
5.1 Sealing options
5.1.1 Axial sealing
LA-42
LA-65-H
LA-66
Borehole
4 deep (8x45°)
TR-Electronic GmbH 2007, All Rights Reserved
Page 44 of 51
44.5
45°
SW46
5
TR-ELA-BA-DGB-0004 v16
not specified dimensions see customized drawing!
not specified dimensions see customized drawing!
not specified dimensions see customized drawing!
Steel Tube
O-Ring / 23.47x2.62
Steel Tube
O-Ring / 23.47x2.62
Steel Tube
