Installation in hydraulic cylinders

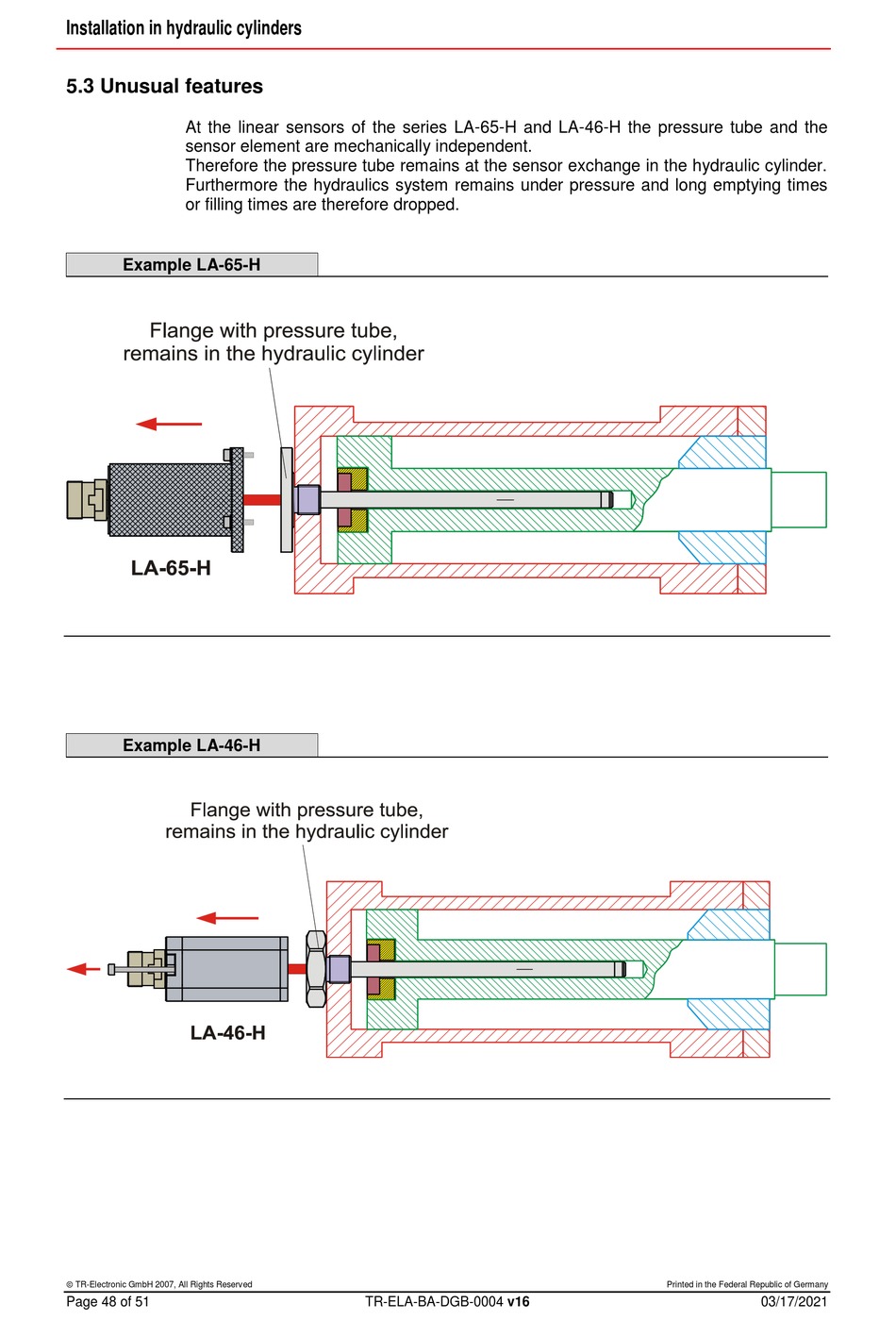

5.3 Unusual features

At the linear sensors of the series LA-65-H and LA-46-H the pressure tube and the
sensor element are mechanically independent.
Therefore the pressure tube remains at the sensor exchange in the hydraulic cylinder.
Furthermore the hydraulics system remains under pressure and long emptying times
or filling times are therefore dropped.
Example LA-65-H
Example LA-46-H
