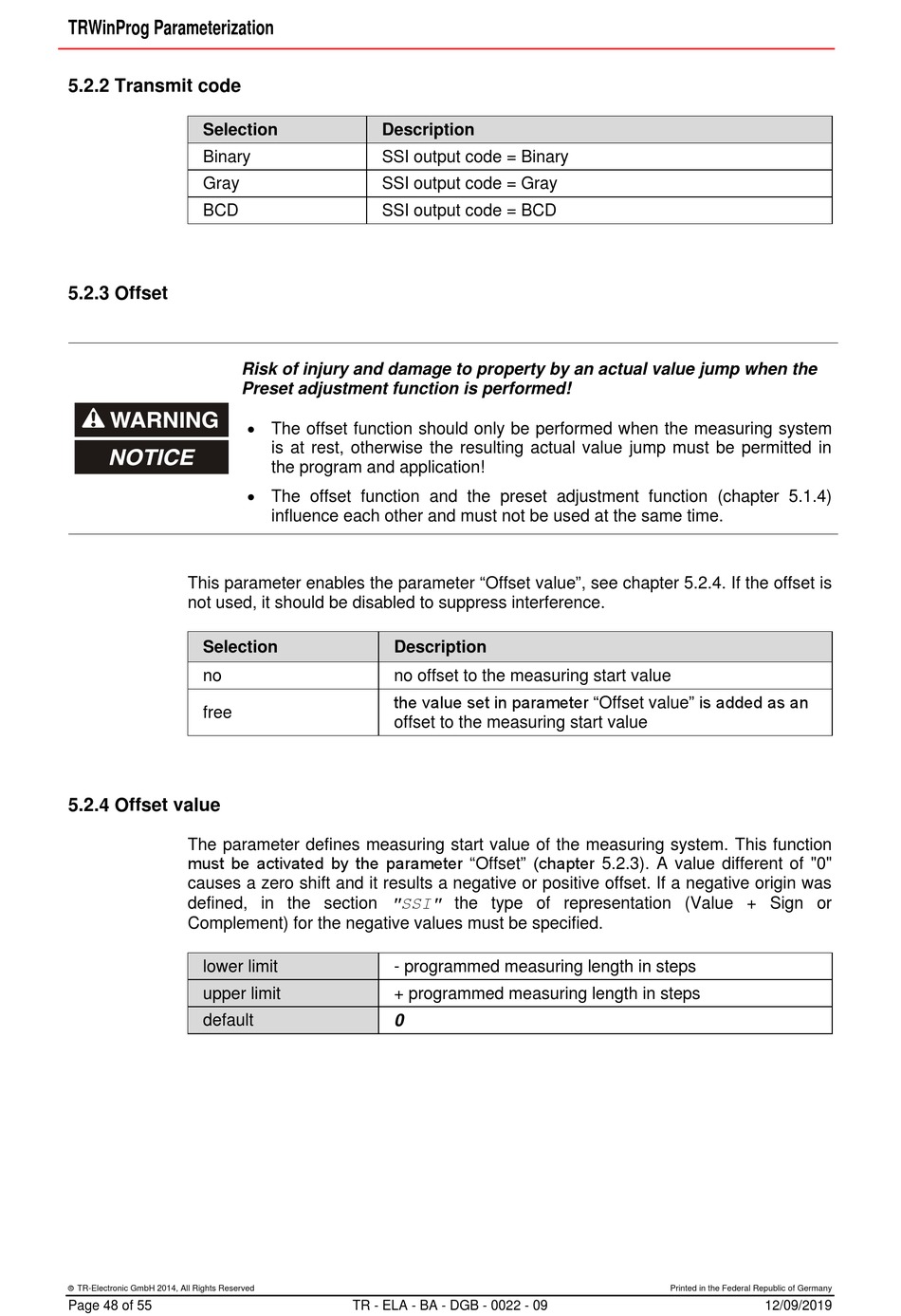

TRWinProg Parameterization

5.2.2 Transmit code

Selection
Binary
Gray
BCD

5.2.3 Offset

This parameter enables the parameter "Offset value", see chapter 5.2.4. If the offset is
not used, it should be disabled to suppress interference.
Selection
no
free

5.2.4 Offset value

The parameter defines measuring start value of the measuring system. This function
must be activated by the parameter "Offset" (chapter 5.2.3). A value different of "0"
causes a zero shift and it results a negative or positive offset. If a negative origin was
defined, in the section "SSI" the type of representation (Value + Sign or
Complement) for the negative values must be specified.
lower limit
upper limit
default
 TR-Electronic GmbH 2014, All Rights Reserved
Page 48 of 55
Description
SSI output code = Binary
SSI output code = Gray
SSI output code = BCD
Risk of injury and damage to property by an actual value jump when the
Preset adjustment function is performed!
 The offset function should only be performed when the measuring system
is at rest, otherwise the resulting actual value jump must be permitted in
the program and application!
 The offset function and the preset adjustment function (chapter 5.1.4)
influence each other and must not be used at the same time.
Description
no offset to the measuring start value
the value set in parameter "Offset value" is added as an
offset to the measuring start value
- programmed measuring length in steps
+ programmed measuring length in steps
0
