Steckerbelegung / Pin assignment

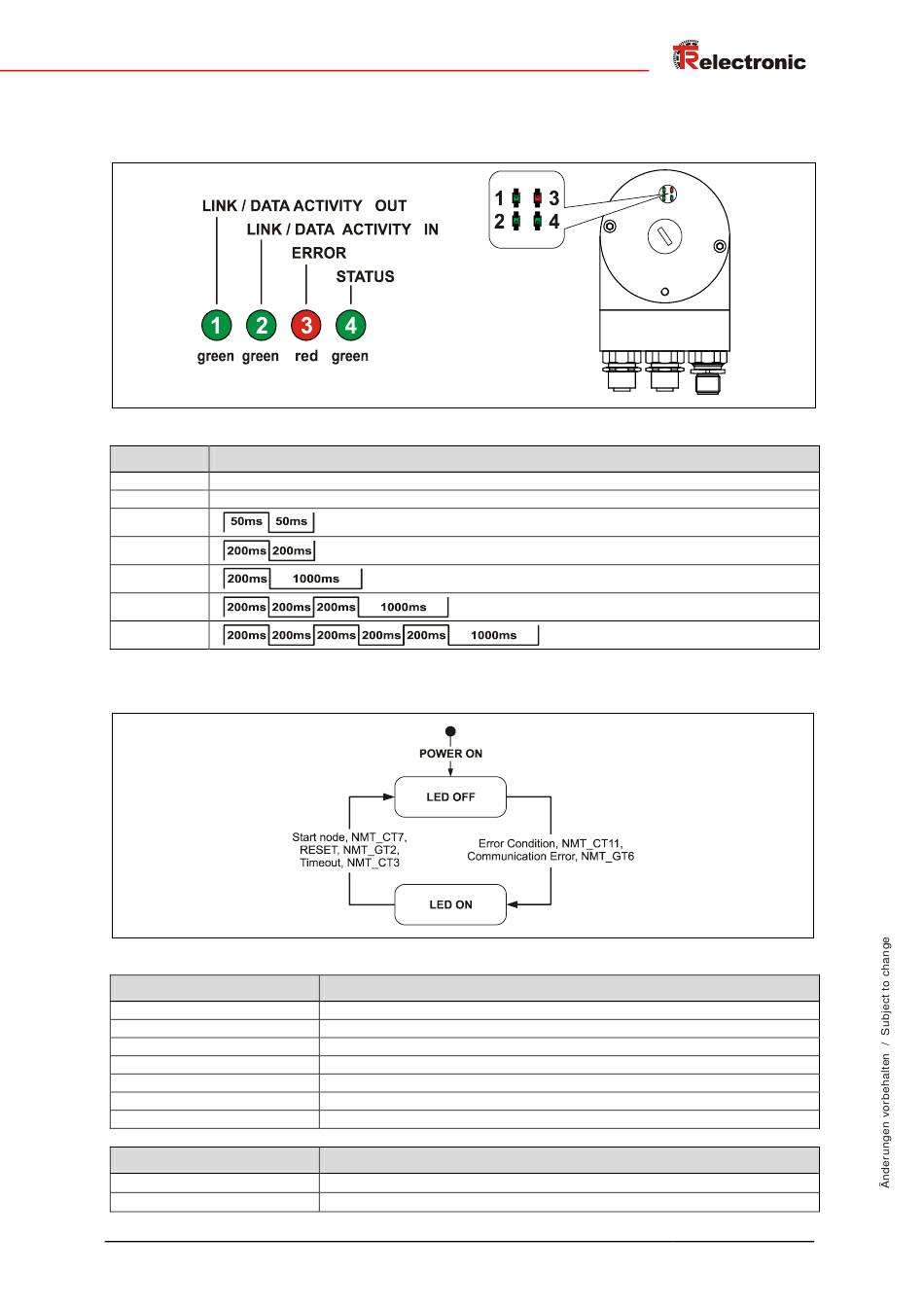

Powerlink LEDs
Anzeigezustände und Blinkfrequenz / Indicator states and flash rates
LED
ON permanent AN / constantly ON
OFF permanent AUS / constantly OFF
Flickering
Blinking
Single flash
Double flash
Triple flash
Error LED
Status LED
OFF
Flickering
Single flash
Double flash
Triple flash
ON
Blinking
Link- / Data Activity - LED
ON = Link
Flickering = Data Activity
TR - ELECTRONIC GmbH, Eglishalde 6, 78647 Trossingen, Tel. ++49 (0)7425 / 228-0, Fax ++49 (0)7425 / 228-33
Edition-/Rev.-Date: 10/21/2014
CN NMT Zustandsmaschine / CN NMT State Machine
NMT_GS_OFF, NMT_GS_INITIALISATION, NMT_CS_NOT_ACTIVE
NMT_CS_BASIC_ETHERNET
NMT_CS_PRE_OPERATIONAL_1
NMT_CS_PRE_OPERATIONAL_2
NMT_CS_READY_TO_OPERATE
NMT_CS_OPERATIONAL
NMT_CS_STOPPED
Beschreibung / Description
Ethernet Verbindung hergestellt
Datenübertragung TxD/RxD
Document-/Rev.-No.: TR-ECE-TI-DGB-0150-02
/ Ethernet connection established
/ Data transfer TxD/RxD
