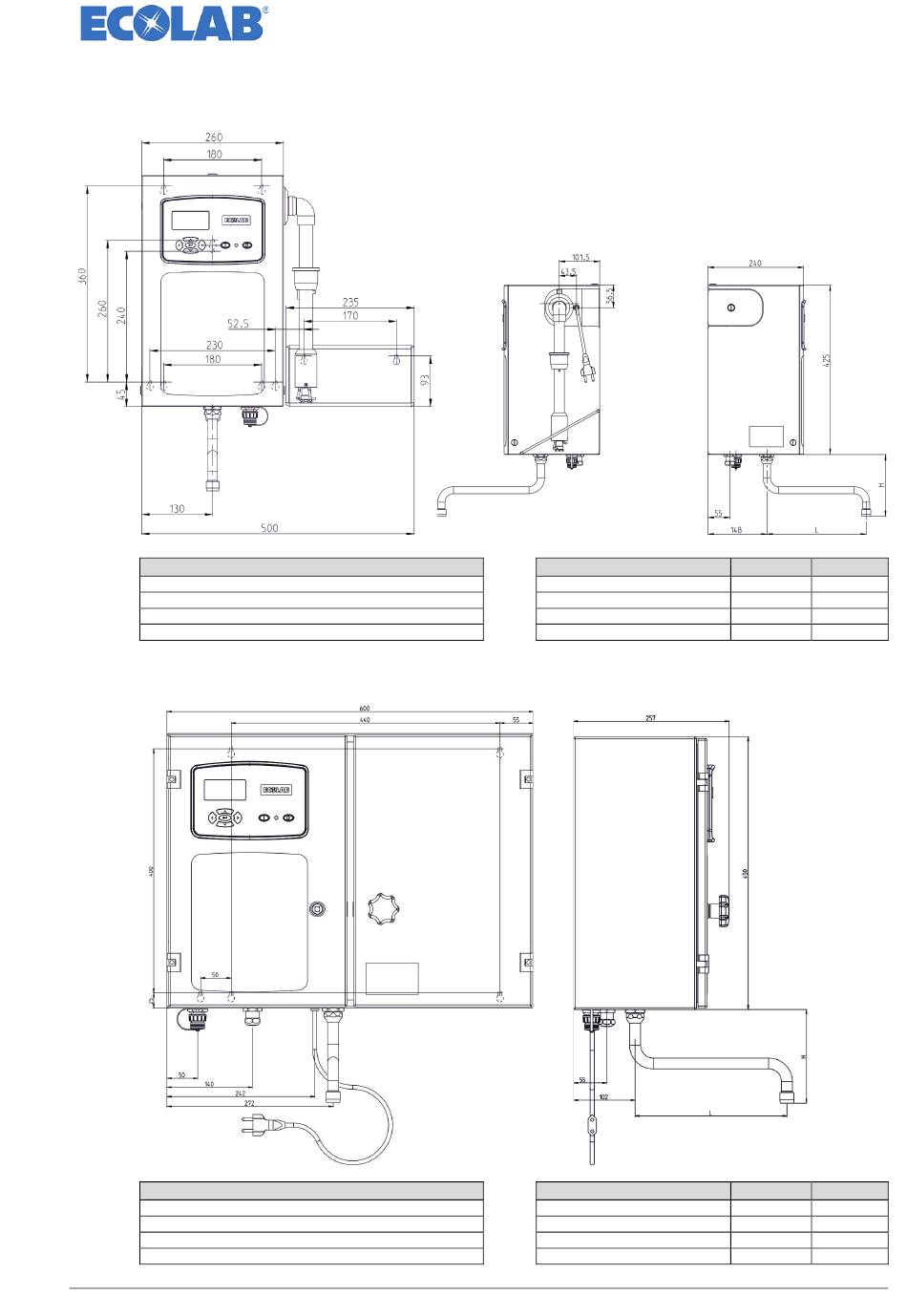

15.1 Connection diagram / Dimensions
15.1.1

Dimensions: 1-door version

A
Fig. 15.1 Dimensions: 1-door version
Connections
A) USB
B) Water for Cu Ø 10 x
C) Power cable AC 230 V, 2.3 m long
D) Swivel spout
15.1.2

Dimensions: 2-door version

A
Fig. 15.2 Dimensions: 2-door version
Connections
A) USB
B) Water G1/2 for Cu Ø10x1
C) Power cable AC 230V, 2.3m long
D) Swivel spout
417102242_DG_3
B C
C
D
Swivel spout
Standard
Swivel spout
Standard
- 103 -
B
L H
150 138
200 149
250 151
300 153
L H
150 138
200 149
250 151
300 153
Rev.: 02-05.2014
