2.

MCS 100 Discussion control unit

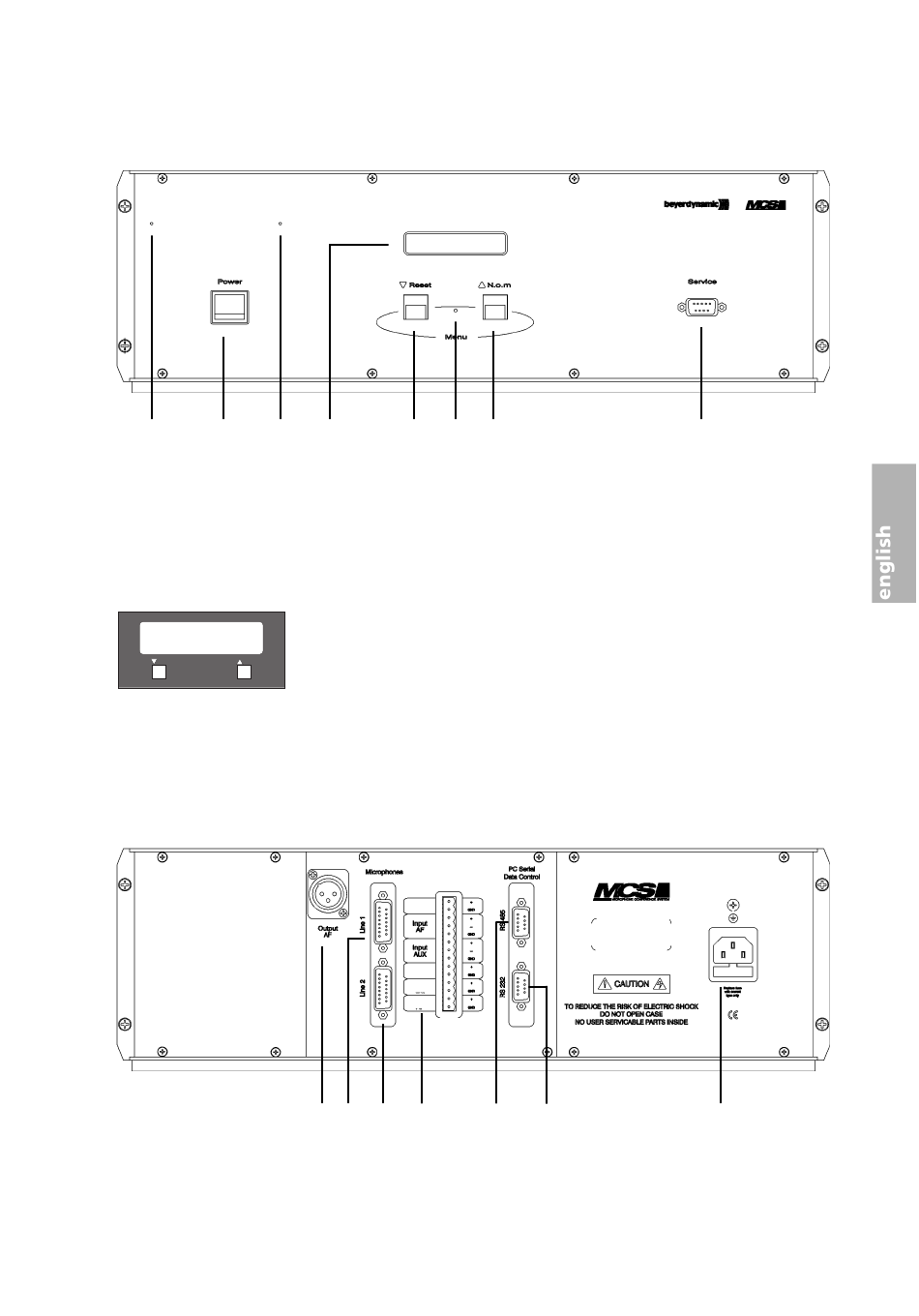

Front view
(1) (2)
(1) Operating control LEDs of the integrated power supply units
(2) Power switch
(3) LC-Display
Two multi-function buttons:
(4) Left button "Reset" pressed alone for approximately 12 seconds resets all adjustable parameters to user specific adjustments
(refer to chapter 5.2).
(5) Right button "N.o.m." pressed alone shows the maximum number of switchable delegate microphone units for approximately
10 seconds.
Configuration
Max NOM 2
Reset N.o.m.
(6) Master-Reset-button. If this button is pressed, the manufacturer specific parameters (average adjustments) are loaded. They gua-
rantee a system operation even if the user carries out an incorrect adjustment. As the Master-Reset-button is countersunk use a
pen or something like that for pressing.
(7) Serviceport, RS 232 interface for system configuration with the MCS-Editor via PC
Rear view
(8) Output AF: 3-pin XLR output for the connection of amplifiers, mixing consoles etc.
(9) Microphones Line 1 and
(10) Line 2 for the connection of the microphone units. It is possible to connect 32 microphone units per line at maximum.
(11) - (16) Audio connector (multipoint connector)
(1) (3) (4) (6)
Extension
Return
Send
Record
(8) (9) (10) (11) - (16) (17)
(5)
(18)
(7)
(19)
41
